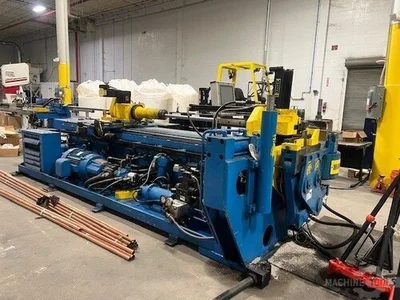

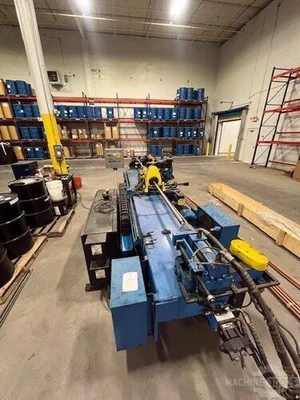

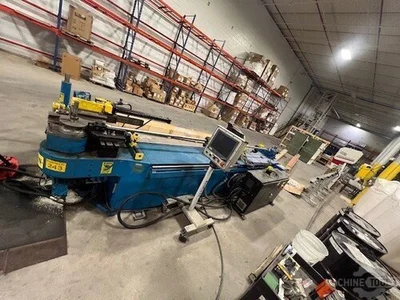

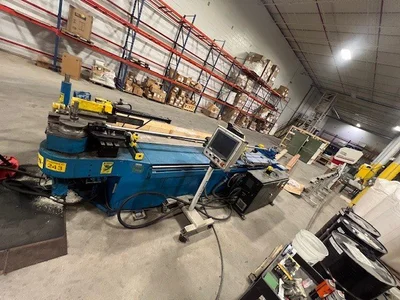

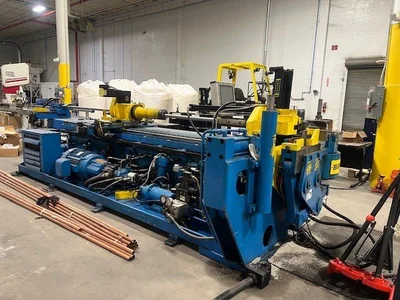

USED HORN 2LCNC

General Info

Stock #: 121260026
Brand: Horn Machine Tools
Model: 2L CNC
Capacity: 3"

Specifications

Minimum Tube OD: 1/4" (approx.)
Round Tube: 3" OD
Square Tube: 2" OD
Steel Pipe (Schedule 80): 2" IPS
Maximum Tube Length Over Mandrel: 168" (approx.)
Maximum Degree Of Bend: 180° + springback
Bending Rotation: Left hand (counter clockwise)

Equipped With
Bendpro G2 CNC Control , Pedestal Mounted Operator Control, Hydraulic Mandrel Extractor, Hydraulic Pressure Die Assist, Wiper Die Holder, Direct Acting Pressure Die, Drop Away Type Clamp Die, Fully Integrated Hydraulics, Assortment Of Tooling: 2.625”OD X .050”Wt X 4.00” Clr, 2.125”OD X .050”Wt X 4.00” Clr, 1.625”OD X .050”Wt X 3.00” Clr, 1.375”OD X .050”Wt X 3.00” Clr, 1.125”OD X .050”Wt X 3.00” Clr, 0.875”OD X .050”Wt X 3.00” Clr

Additional Info
Can be inspected upon request
