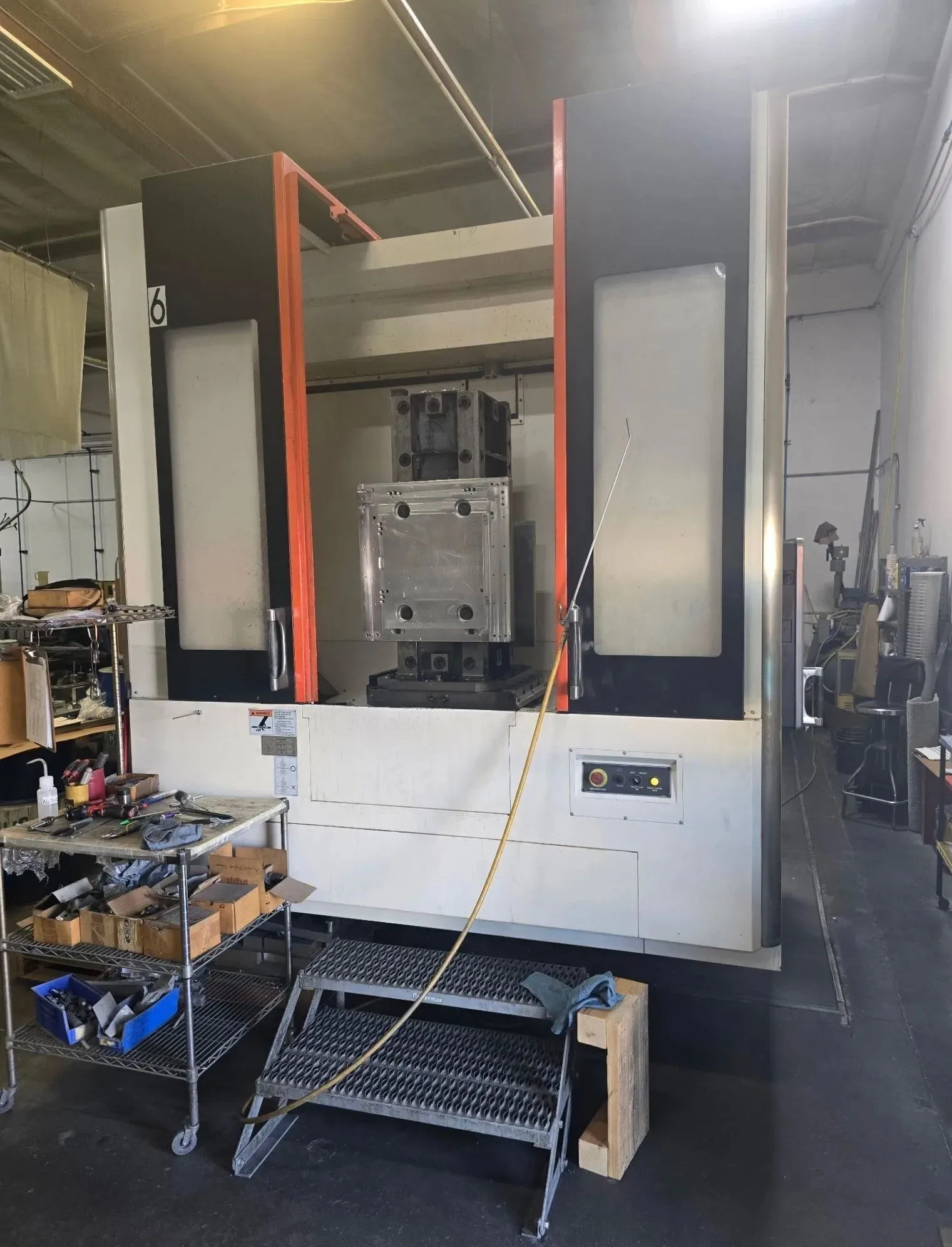

MAZAK HCN 6800-II from 2014 offers a 4-axis horizontal machining center with 41.34" X, 35.43" Y, and 38.58" Z travel. Features CAT 50 spindle, 50 hp, 8000 rpm, 120 tool capacity, dual pallets, MAZATROL control, and more, ideal for precision and efficiency. Includes 70+ toolholders.
| X-AXIS TRAVEL | 41.34" | 1,050 mm |
| Y-AXIS TRAVEL | 35.43" | 899.92 mm |
| Z-AXIS TRAVEL | 38.58" | 979.93 mm |
| SPINDLE TAPER | CAT 50 | CAT 50 |
| SPINDLE DRIVE MOTOR | 50 hp | |
| SPINDLE SPEED | 8000 rpm | 8,000 RPM |
| TOOL CAPACITY (ATC) | 120 | 120 |
| NUMBER OF PALLETS | 2 | 2 |
| PALLET SIZE | 24.8" x 24.8" | 24.8" x 24.8" |
| PALLET SIZE (W) | 24.8" | 629.92 mm |
| PALLET SIZE (L) | 24.8" | 629.92 mm |
| Number of Axis | 4 | 4 |
| PALLET LOAD CAPACITY | 3307 lb | |
| 4 AXIS PALLET TABLE INDEXING | N/C Contouring | N/C Contouring |
| PART PROBE | YES | YES |
| TOOL PROBE/AUTO TOOL LENGTH MEASURE | Yes | Yes |
| HI-PRESSURE COOLANT SYSTEM | 213 psi | |
| CHIP CONVEYOR | Yes | Yes |
| Control | CNC (MAZATROL MATRIX NEXUS 2 CONTROL) | CNC (MAZATROL MATRIX NEXUS 2 CONTROL) |
| Dimensions | 130" X 248" X 134" | 130" X 248" X 134" |
| Weight | 41,800 | 41,800 |
MAZATROL MATRIX NEXUS 2 CONTROL
MT CONNECT
PREPPED FOR SUPERFLOW HI-PRESSURE COOLANT UNIT
8000 RPM HI-TORQUE SPINDLE
THROUGH TOOL COOLANT
PROBING
SYNCH TAP
TOOL BREAKAGE DETECTION
CHILLED BALL SCREWS XYZ
COOLANT THROUGH SPINDLE AIR
CHIP CONVEYOR
INCLUDES 70+ TOOLHOLDERS
