NEW 2000 O-M TMD 55/60
Overview

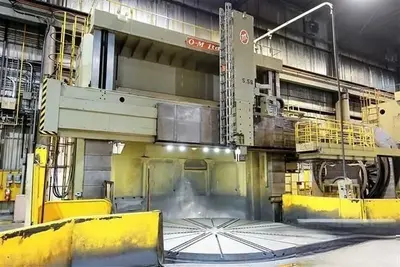

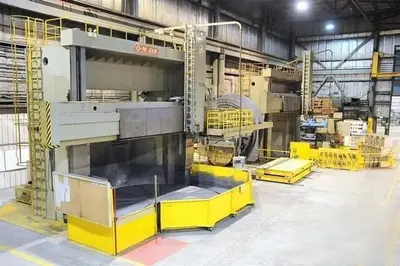

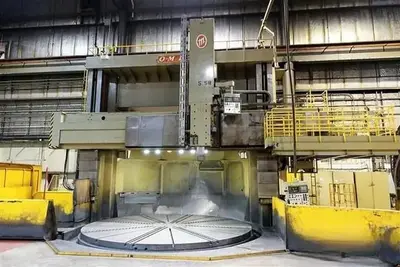

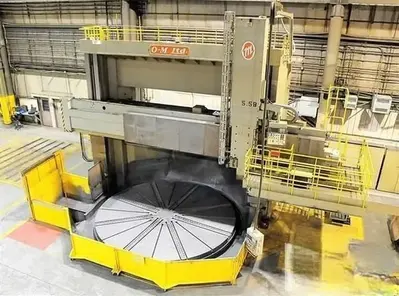

2000 O-M Model TMD 55/6-N Vertical Boring Mill
Excellent condition with low hours of use. 216" table diameter that will swing 236"!
2 Fanuc 18i controls. One control can be used on ground level, one control can be used on the catwalk.
Buyer to verify all specifications:
Table Diameter 216.53"
Maximum Turning Diameter 236.22"
Maximum Turning Height 145.66"
Horizontal Travel of Rail Head 135.82"
Vertical Travel of Cross Rail 102.36"
Ram Stroke 78.74"
Ram Cross Section 11.02"
Table Speed (3- Ranges) .3-45 RPM
Table T-Slots (Nominal)................ 1.65" 1.65"
Table Weight Capacity 132,277 Lbs.
Table Motor 80 HP / 100 HP
Approx. 8 trucks will be needed upon removal.
Specs
Table Dia 216.53"
Swing 236.22"
Work Ht-U/R 145.66"
Power 100 hp
RPM 45 RPM
Control CNC FANUC 18i-TB
Massive CNC Vertical Lathe for Sale
Dual Fanuc Series 18T Control
Table capacity is 60 Ton
Max 45 RPM
5.5 Meter Table 80HP Motor
6M Max Swing and
3.7M Max Height
Ram head has 2M travel and
3.45M travel along cross rail
Hydraulic operator elevator and Gantry
No Chip Conveyor
Equipped With
Equipped With

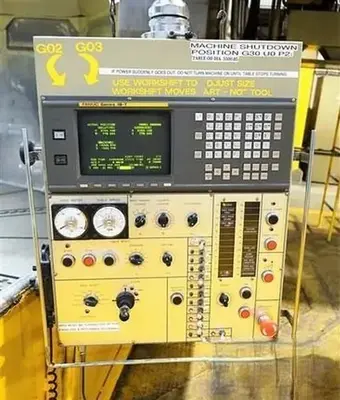

Fanuc 18i-TB CNC Control - Dual Operator Controls

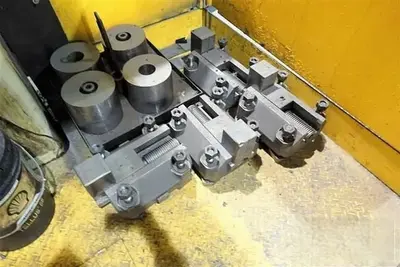

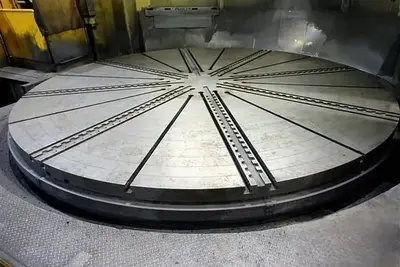

T-Slotted Table with (4) Face Plate Type Jaws

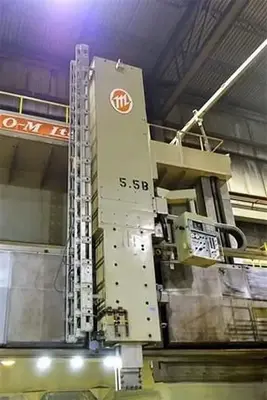

Vertical Ram with Tool Block Holder
Thread Cutting Cycle Retract
Constant Surface Speed Control
Inch / Metric Conversion
Chamfering / Corner Rounding
Tool Nose Radius Compensation
Tool Geometry / Wear Compensation
Stored Pitch Error Compensation

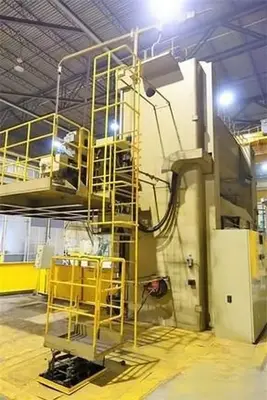

Independent Operator Platform and Lift
Steel Sliding Way Covers
100 HP Table Drive
