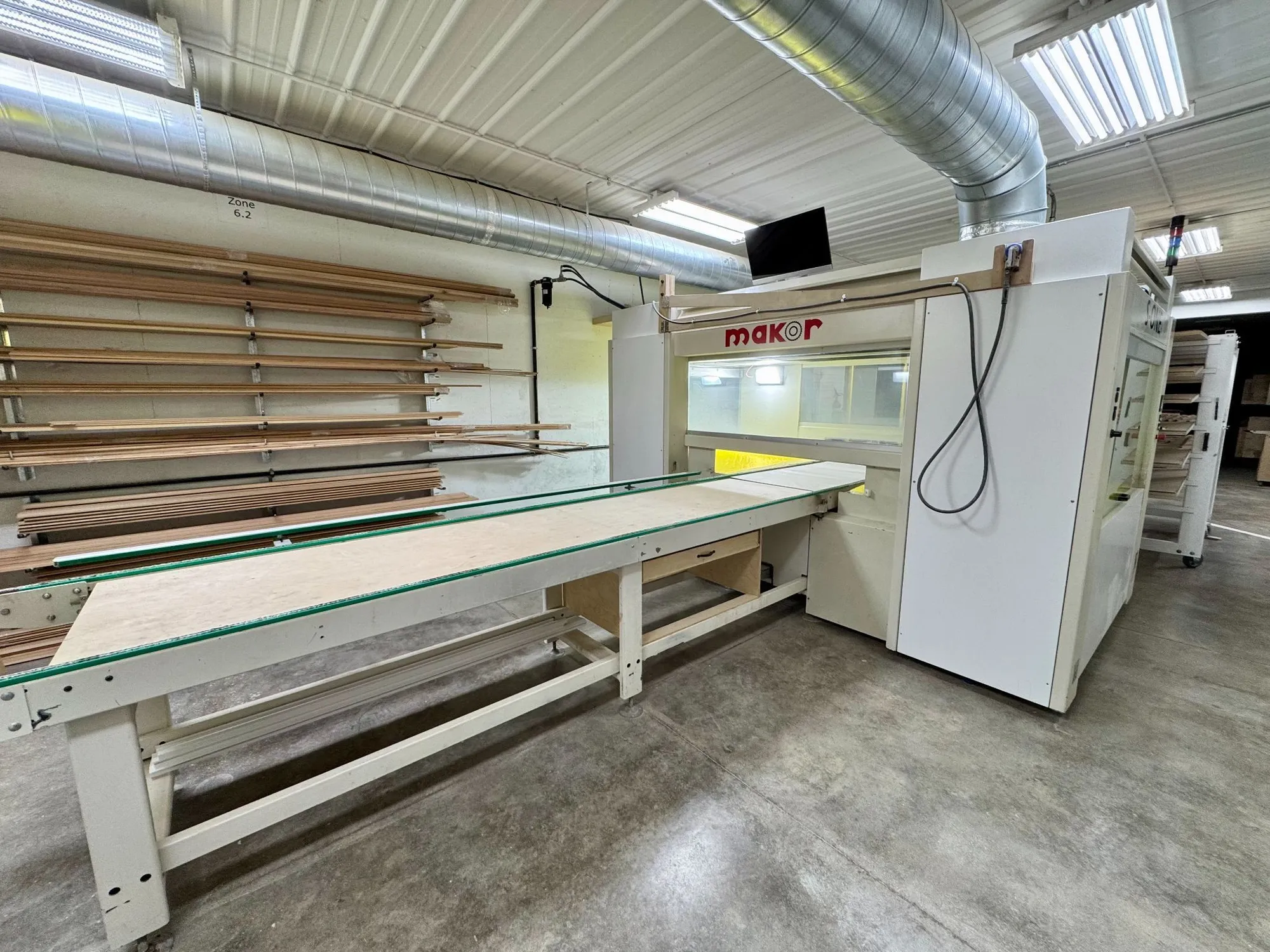

USED 2013 MAKOR S-ONE-M

The START-ONE can be used for automatic spraying of all types of paint and glue. In a very simple and effective way, it offers all the advantages of much more complex systems:

better utilization of coating materials (paint savings = $)

uniformity of application and consistent quality

increased productivity compared to a manual operator

cleaner and healthier work environment

Carrier Trays transport of work pieces

product carrier trays are transported through the spray machine on two parallel chains equipped with a variable speed drive (inverter)

carrier trays can be covered with paper or a similar protective material, which is periodically replaced/recovered as needed to extend functional life

system is capable of handling two product carrier tray dimensions:  2440 x 1220 x 25mm (96" x 48" x 1") or 4000 x 1220 x 25mm (13' x 48" x 1")

useful working area of:  2200 x 1100mm (86-5/8 x 43-1/4") per carrier tray (26 sq ft.) or3700 x 1100mm (145" x 43-1/4") per carrier tray (43.7 sq. ft.)

carrier tray length and thickness can vary minimally, but width must be precise to enable proper transportation

four (4) guns can be connected to one of two (2) coating circuits

two (2) high pressure circuits with recycle for coatings each with return line

coating circuits have return hoses for quick circuit washing and for paint recirculation

standard supply includes two (2) gun holding plates with quick disconnection system to allow fast replacing of the spraying unit

machine is managed by a PLC with a special user interface that displays and manages all functions and working parameters in an intuitive way

a series of sensors detect the workpiece dimensions as they enter the machine to control the spray gun activation (optimize consumption of paint)
