USED 1979 ELDORADO M-75
Overview

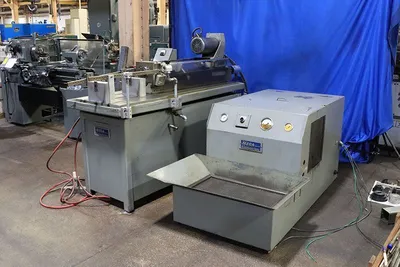

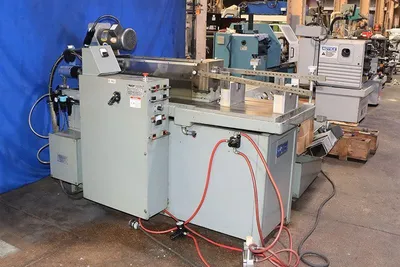

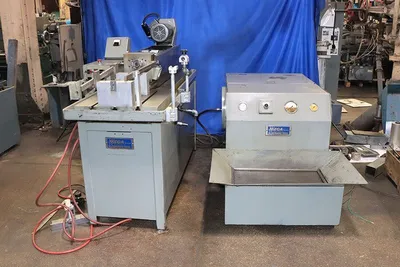

1"x30" Eldorado, Model M75, Single Spindle Gun Type Deep Hole Drilling Machine equipped with a F-18 High Pressure Coolant System.
Specs
We are pleased to offer the following for your consideration:
1"x30" Eldorado, Model M75, Single Spindle Gun Type Deep Hole Drilling Machine equipped with a 1.5 H.P.
main motor having the following general specifications:
Working Surface of table, 22"x22"
Drilling Capacity, .055 up to 1" (in most material)
Spindle travel ball screw feed, 30"
Centerline of spindle to top of table, 8"
Variable speeds, 480 to 3895 RPM
Variable feed rate, .1 to 99.9 IPM
Rapid traverse and return rate, 200 IPM
F-18 High Pressure Coolant System, 1500 PSI and
18 GPM, 90 Gallon Tank, 7.5 H.P. pump motor
Machine Dimensions, approximately 3'x7'x5' high
Coolant System, approximately 74"x36"x41: high
Weight approximately, 4,000 lbs. total
EQUIPMENT:
Whip Guide, Feed Thrust meter, Automatic Lubrication System,
Flo-Minder and Hardened and Ground Bedways.
Serial Number: 492 - Built 1979 - Very Good Operating Condition
Temporary Description
Inspect Under Power. Loaded on Truck. 30 Day Return Privilege Guarantee.
F.O.B. Truck, Harrison, NJ
