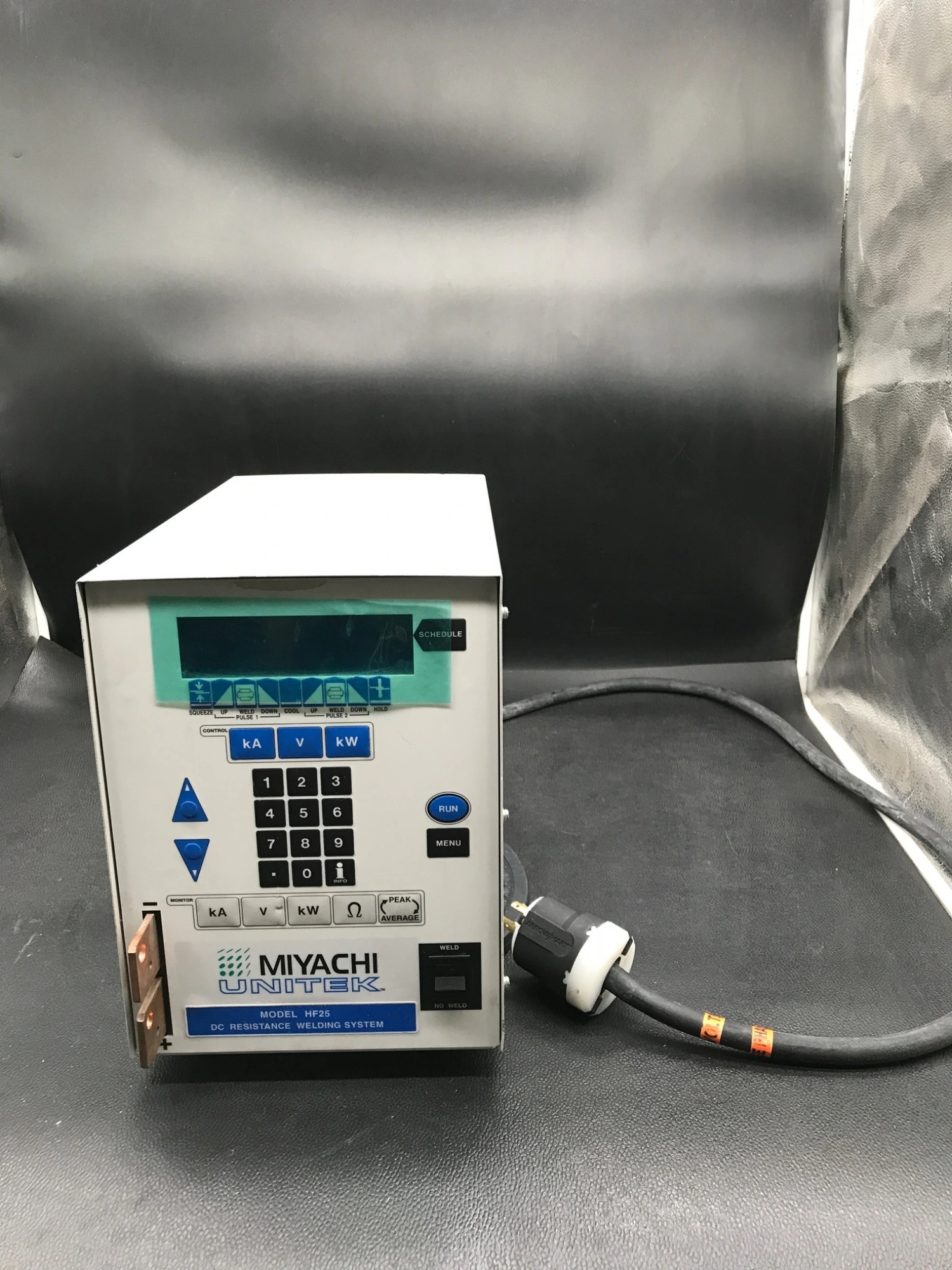

USED MIYACHI UNITEK HF25
Overview
This listing is for a USED Miyachi Unitek HF25 DC Resistance Welding System. The HF25 is a microprocessor-controlled DC resistance welding power supply designed for precision resistance welding applications including battery tab welding, electronic component assembly, wire attachment, and production welding operations. The system provides programmable weld scheduling, weld monitoring, dual pulse capability, and real-time display of welding parameters including current, voltage, power, and resistance.
Specs

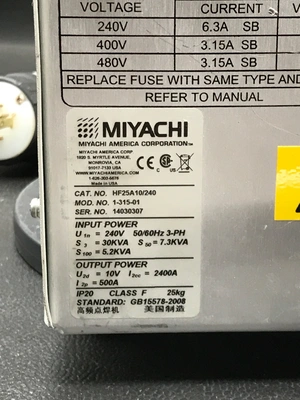

Manufacturer: Miyachi America Corporation
Brand: Miyachi Unitek
Model: HF25
Model Number: 1-315-01
Catalog Number: HF25A10/240
Condition: USED
Equipment Type: DC Resistance Welding System
Serial Number: 14030307
Input Power
Voltage: 240 VAC
Frequency: 50/60 Hz
Phase: 3
Power Ratings
S3 Rating: 30 kVA
S50 Rating: 7.3 kVA
S100 Rating: 5.2 kVA
Output Power
Output Voltage: 10 V
Short Circuit Current: 2400 A
Pulse Current Rating: 500 A

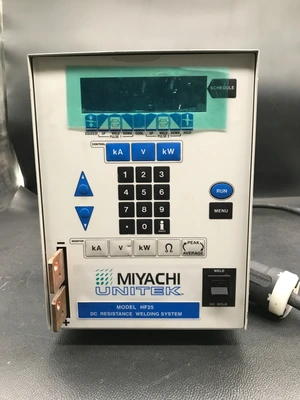

Operator Interface
Digital Display: Present
Numeric Keypad: Present
Run Pushbutton: Present
Menu Pushbutton: Present
Weld Functions
Dual Pulse Welding: Present
Schedule Programming: Present
Squeeze Control: Present
Weld Pulse 1: Programmable
Cool Cycle: Programmable
Weld Pulse 2: Programmable
Hold Cycle: Programmable
Monitoring Functions
Current Monitoring: kA
Voltage Monitoring: V
Power Monitoring: kW
Resistance Monitoring: Ohms
Peak/Average Display: Present
Construction
Bench Top Configuration: Yes
Protection Class: IP20
Insulation Class: F
Country of Manufacture: USA
