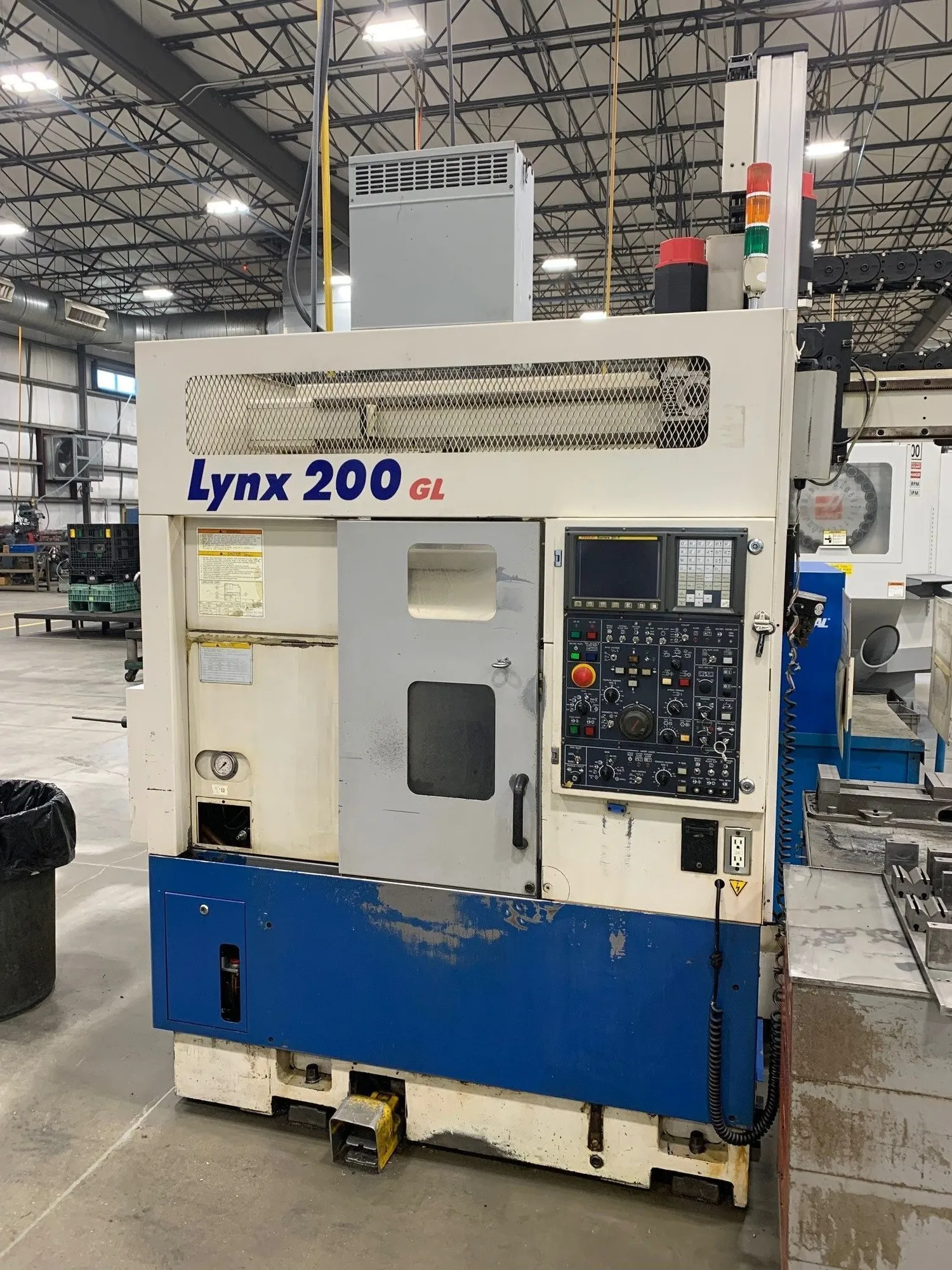

1999 Daewoo Lynx 200 GL CNC Turning Center with Fanuc 21-T Control, 8" Chuck, Parts Catcher, and Gantry Loader
| Swing | 18.11" | 459.99 mm |
| Machining Length | 11.81" | 299.97 mm |
| # Axis | 2 | 2 |
| Chuck Size | 8" | 203.2 mm |
| Bar Capacity | 1.75" | 44.45 mm |
| Power | 15 hp | 11.2 kW |
| Max RPM | 5,000 RPM | 5,000 RPM |
| Turning Dia | 11.02" | 279.91 mm |
| Tailstock | No | No |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Control | CNC (Fanuc 21T) | CNC (Fanuc 21T) |
| Weight | 7600 LBS | 7600 LBS |
Swing Over Bed.....................18.11"
Max Turning Diameter...............11.02"
Max Turning Length.................11.81"
X-Axis Travel......................6.3"
Z-Axis Travel......................13.0"
Spindle Motor......................15 HP
Spindle Nose.......................A2-5
Spindle Bore.......................2"
Max Bar Capacity...................1.75"
Spindle Speed......................5000 RPM
Rapid Traverse X Axis..............787 IPM
Rapid Traverse Z Axis..............945 IPM
Turret Capacity....................12 Stations
Turret Index Time..................0.15 Second
Electrics..........................220V/3PH/60HZ
Weight.............................7,600 LBS
Fanuc 21-T CNC Control
RS-232 Port
8" 3-Jaw Kitagawa Hydraulic Chuck
Tool Presetter
Rigid Tapping
12 Station Turret
Parts Catcher
Coolant System
Foot Switch
Turbo Chip Conveyor
Custom Built Spindle Liner with Adjustable Stop
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
