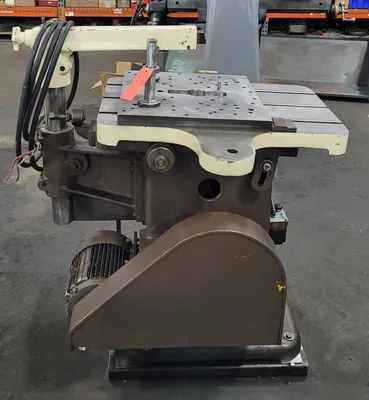

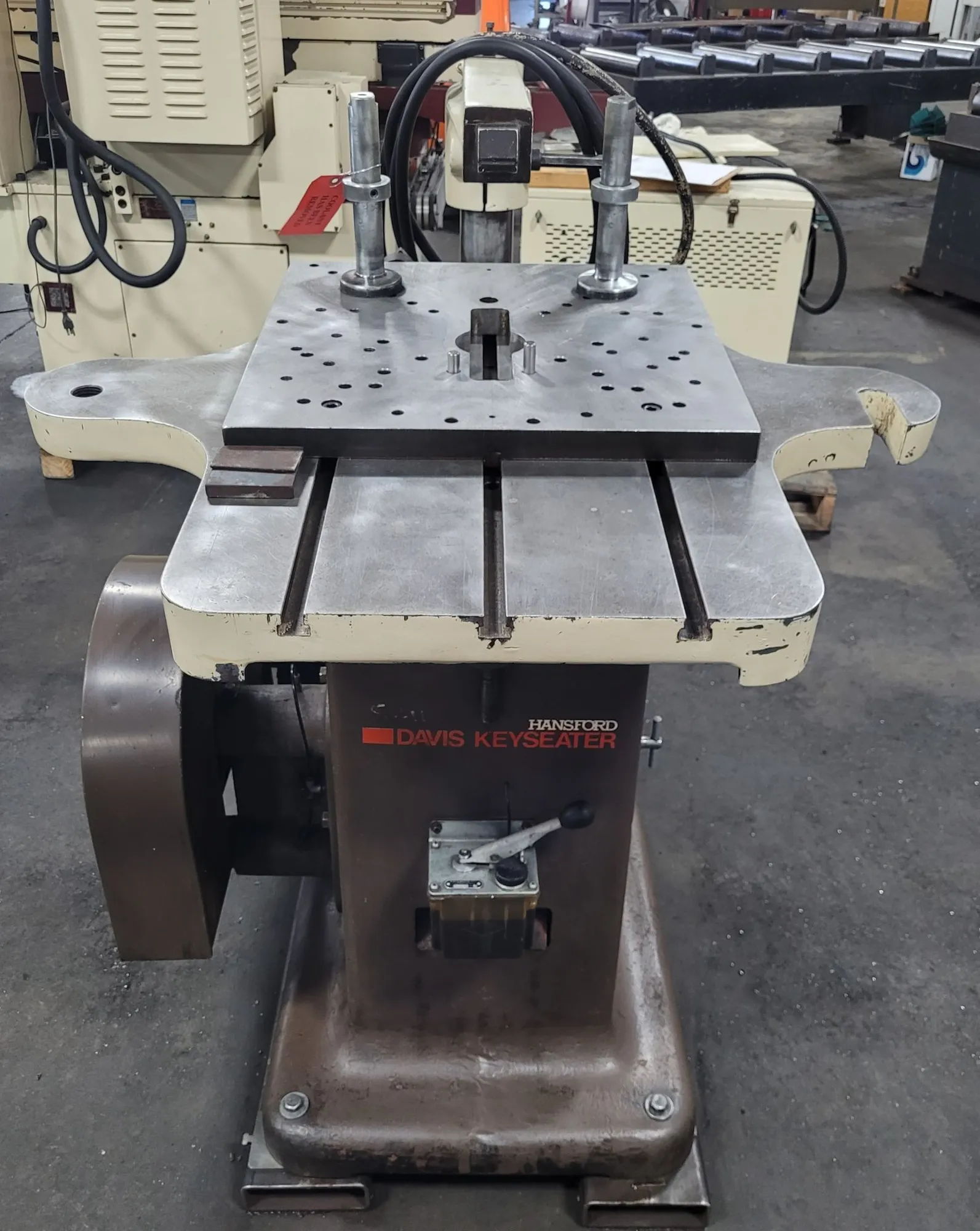

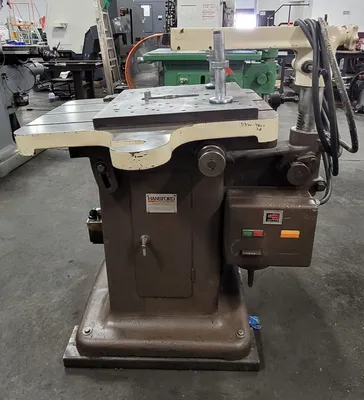

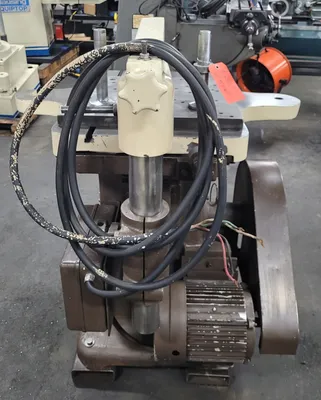

USED HANSFORD DAVIS Model 5

Hansford Davis Model 5 Keyseater

Cutting and Performance Specs
Keyway Width Capacity: 1/16" to 1-1/2"
Maximum Keyway Length: Up to 17" (depending on tooling/cutter setup)
Throat Depth (Face of cutter to arm post): 18-3/4"
Stroke: 4-1/2”
Strokes Per Minute (SPM): 48
Power Drive: 2 HP motor
Max included taper cut/foot: 3”

Table and Dimensions

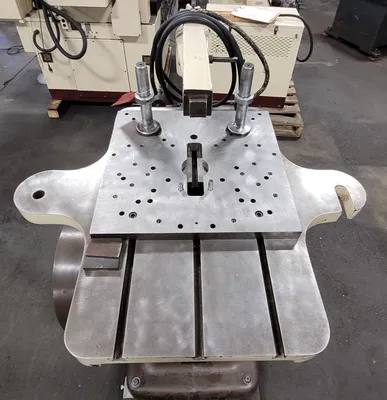

Table Size: 21x31 inches
Table Movement: 1-3/8"
T Slots in Table: 3

Wired: 480V
Operation Type: Manual
Machine Dimensions (L x W x H): 30" x 48" x 55"
Machine Weight: 1,800 lbs

Specifications Subject to Verification
