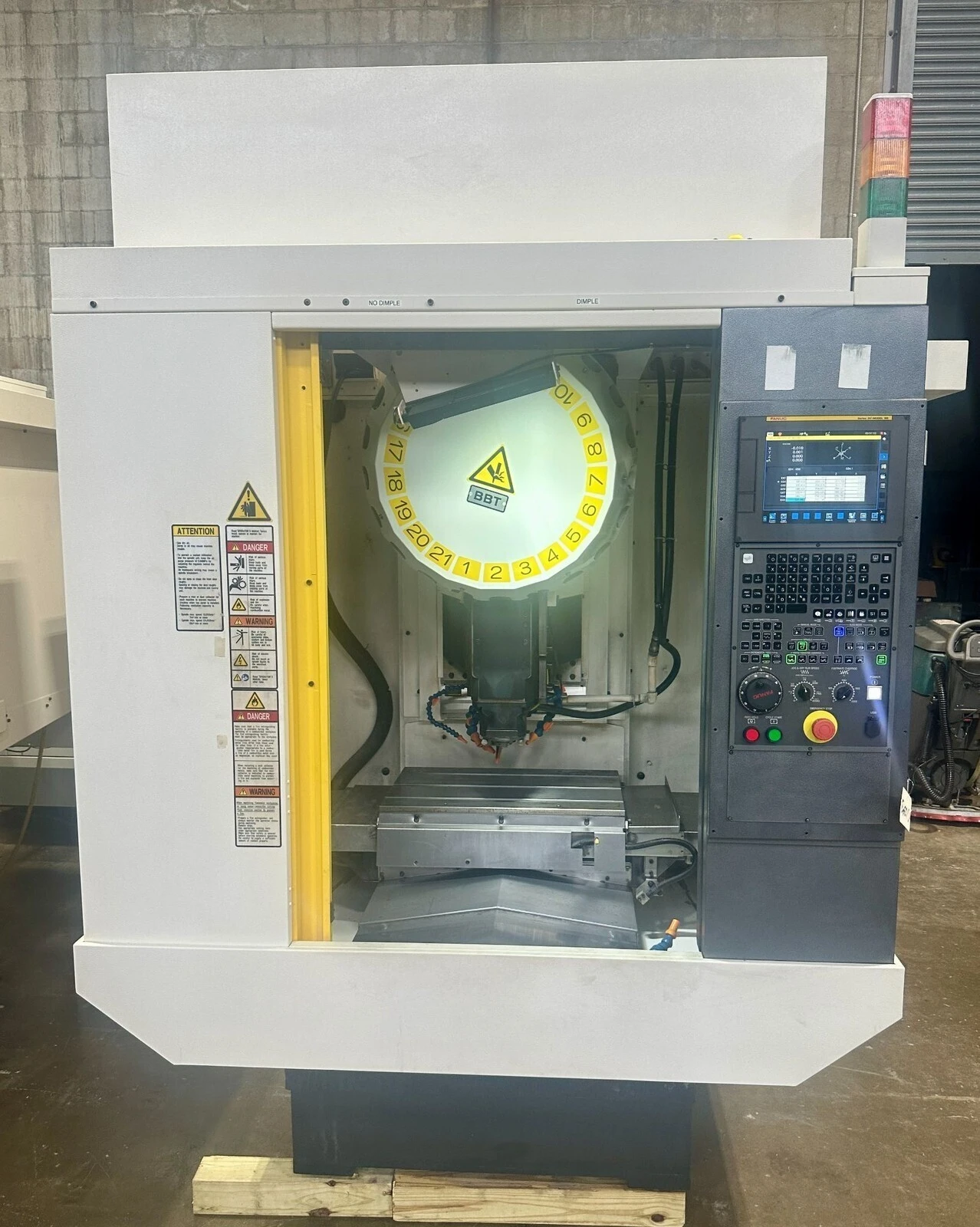

USED 2018 FANUC ROBODRILL ALPHA D21MIB5 ADV
Overview
Used Vertical Machining Center. X/Y/Z travels: 19.7"/15.7"/15.7". Speed: 24,000 RPM. BT-30 Taper, 21 ATC, Fanuc 31i CNC, 4" Riser, Auto Door, Coolant, Tool Setter, MistBuster.
Specs
Table-L 15.7"
Table-W 25.6"
Max Table Load Capacity 881 lb
X-Axis (Longitudinal Travel)19.7"
Y-Axis (Cross Travel)15.7"
Z-Axis (Vertical Travel)15.7"
Max Clearance Tabletop to Spindle Nose 26.7"
Min Clearance Tabletop to Spindle Nose 11"
Rapid Traverse Rate (X, Y, & Z Axis) 2,125 in/min.
Max Spindle Speed 24,000 RPM
Spindle Taper BT-30
Automatic Tool Changer Capacity (ATC) 21
Weight 5291 LBS
Dimensions 81" X 65" X 119"
Equipped With
Fanuc Series 31i - Model B5ADV CNC Control, 15-3/4" x 25-1/2" Table, X=19.6", Y=15.7", Z=15.7", BT30 Taper, 24000 Max Spindle RPM, 21 ATC, 4" Riser , Coolant Tank, Auto Door on Right Side, Tool Setter, MistBuster Filtration System.
