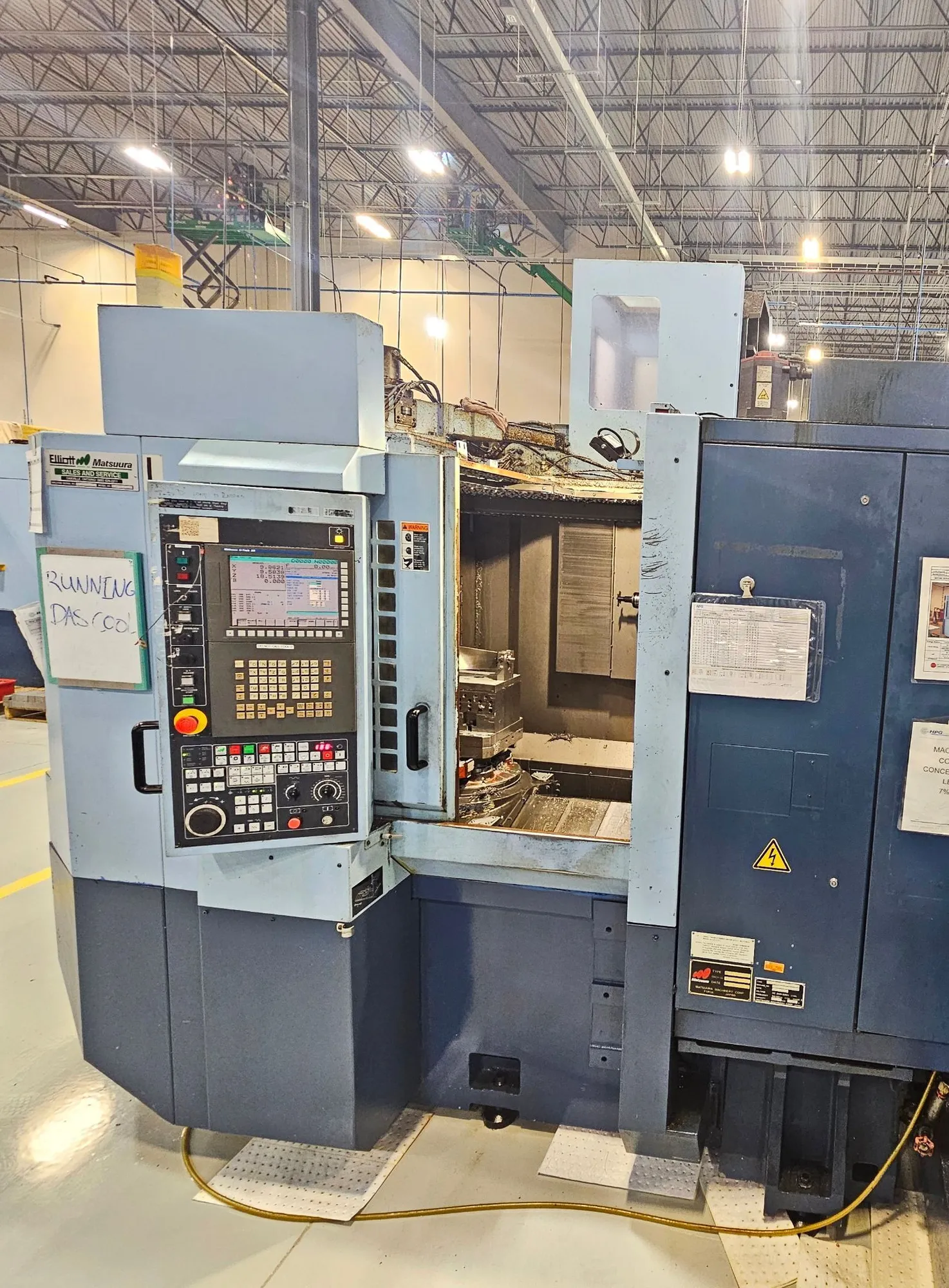

2004 Matsuura H.Plus-300 Horizontal CNC Machining Center, Dual-pallet Changer, B-Axis, Spindle Oil Cooler, Chip Conveyor, Spindle Overload Protection
| X-Axis | 19.68" | 499.87 mm |
| Y-Axis | 22.04" | 559.82 mm |
| Z-Axis | 19.68" | 499.87 mm |
| B-Axis | 360° | 360° |
| Power | 20 hp | 14.9 kW |
| RPM | 15,000 RPM | 15,000 RPM |
| # ATC | 51 | 51 |
| Taper | BT-40 | BT-40 |
| Pallet-W | 11.81" | 299.97 mm |
| Pallet-L | 11.81" | 299.97 mm |
| Max Workpiece Diameter | 20.86" | 529.84 mm |
| Max Workpiece Height | 29.92" | 759.97 mm |
| Max Pallet Load | 551 lb | 249.9 kg |
| # Axis | 3 | 3 |
| Rapid Traverse (X/Y/Z) | 2,362 in/min. | 2,362 in/min. |
| Made In | Japan | Japan |
| Control | CNC (Matsuura G-Tech 16i) | CNC (Matsuura G-Tech 16i) |
| Dimensions | 143.93" X 84.44" X 105.62 | 143.93" X 84.44" X 105.62 |
| Weight | 18,298 lb | 18,298 lb |
Dual-pallet changer
B-axis
Chip conveyor - Rear discharge
Synchronized tapping
Spindle oil cooler
Spindle overload protection
