USED 2024 HOLZ-HER 1329

Lot Closes:: 8/18/2026 9:05:00 AM PT

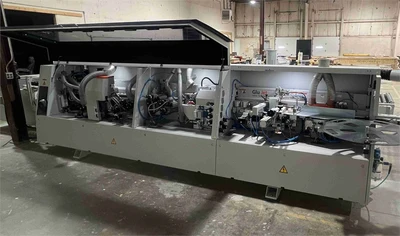

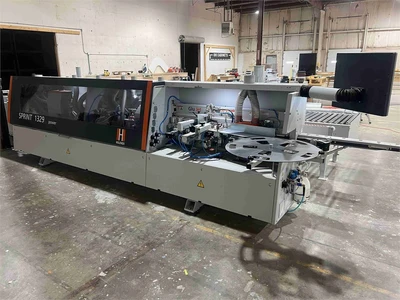

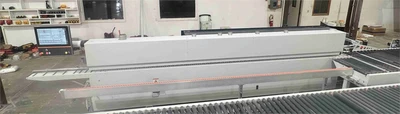

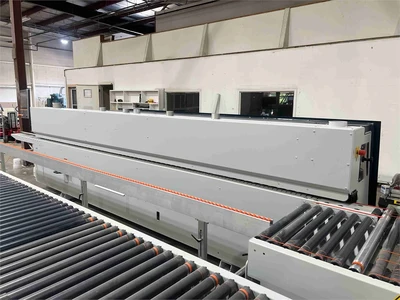

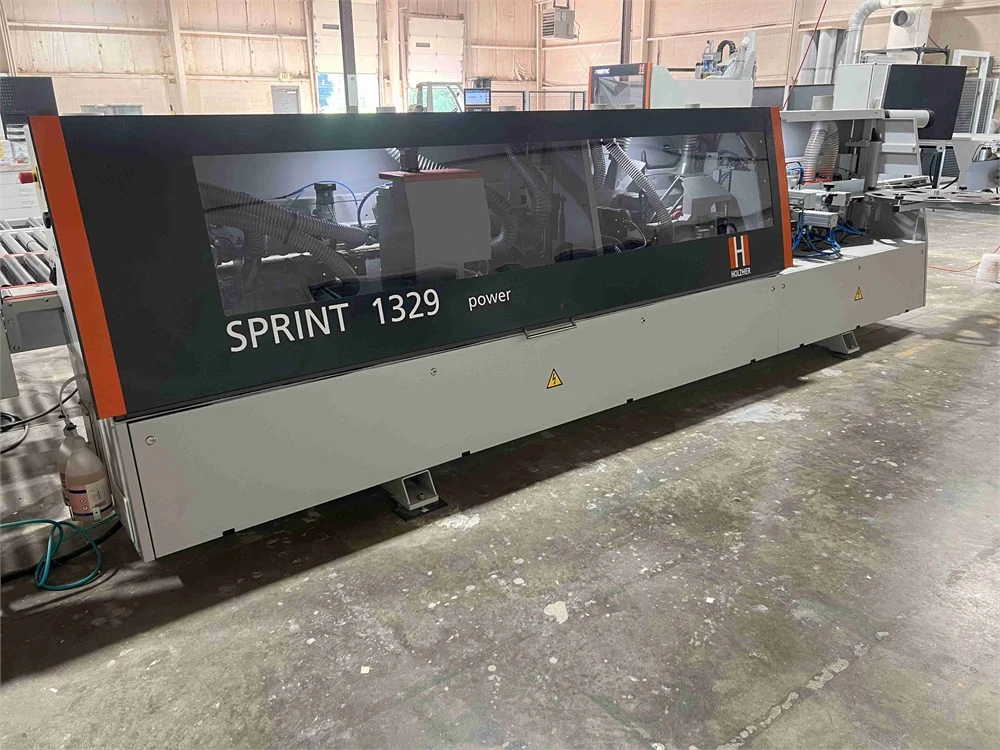

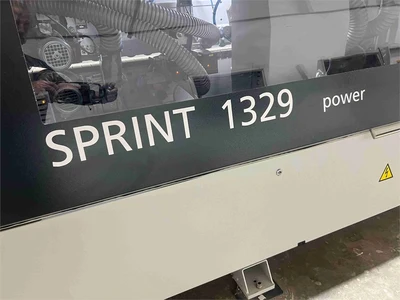

Holz-Her "1329" Edgebander (2024)
See video of machine in operation.
Edgebanding Capacity: edge thickness min./max. 0.4 - 15 mm (0.016 - 0.59"), coiled material 0.4 - 3 mm (0.016 - 0.157"); Panel thickness 8 - 60 mm (0.236 - 2.362"), workpiece width min. of 60 mm (2.36"); workpiece length min. 160 mm (6.29"); Feed speed 10 - 18 MPM (33 - 59 FPM).
Programmable Logic Control (PLC) for Pre-Milling, edge feed, glue application, end trimming, flush trimming, radius trimming, scraping & corner rounding.
Holz-Her PPC 315 "EDGE CONTROL TOUCH" Electronically controlled set-up processes with 100%  repetition accuracy.

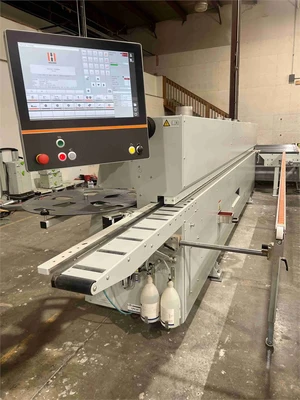

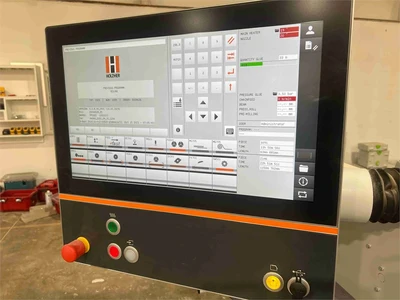

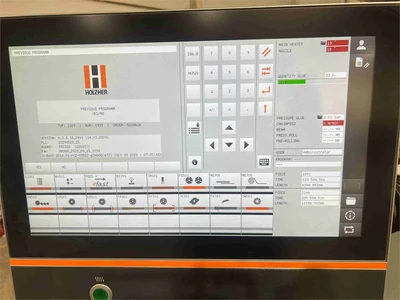

18.5" Flat Touch Screen with Brilliant graphic display of machining process. Simple operation – rotating and swiveling control panel at eye height., programs can be easily created and recalled at will; Graphic interface makes programming easy, icon of each unit may be brought up on the screen to show the operator the status of the unit and the parameters which can be programmed.

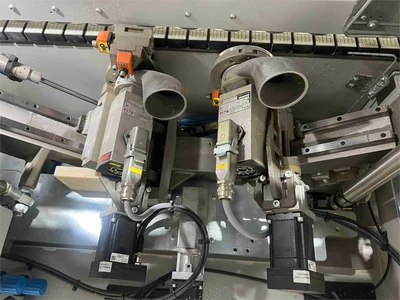

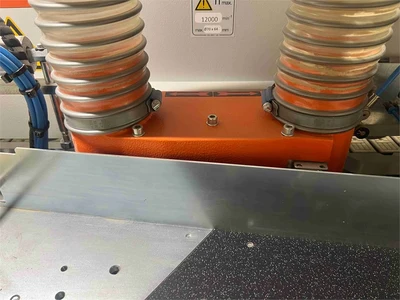

Pre-Milling Station (1802): (2) 2.0 KW (2.68 HP) - 12,000 RPM motors; Equipped with "ProLock" quick-change flange including height adjustment for optimum utilization of cutters.

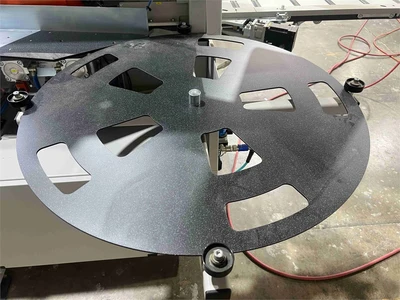

Edge Feeder Magazine:  "SYNCRO" drive. The new magazine with its synchronous adaptation to the feed rate guarantees short intervals between work pieces & simultaneously optimizes edging protrusions. Small 3° feed angle thanks to nozzle design with easy feeding of coils, strips &up to 3 mm & solid wood edging up to 15 mm (.059"). Exclusive "Tractor-Belt feed System", edge guide equipped with automatic guillotine lock-out for safety.
Pressure Section: Servo controlled pressure section with (1) large driven roller and (2) cantered idle rollers. Straight and tapered pressure rollers for perfect glued joints.

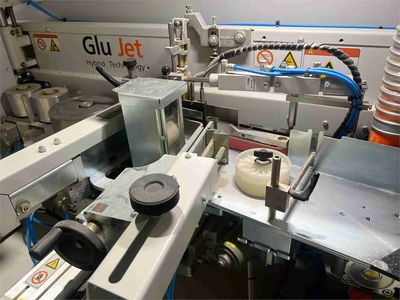

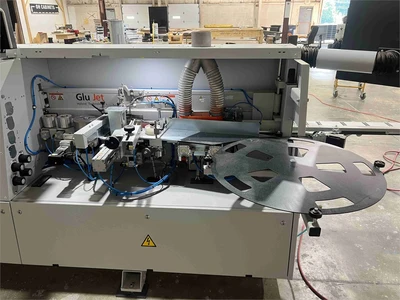

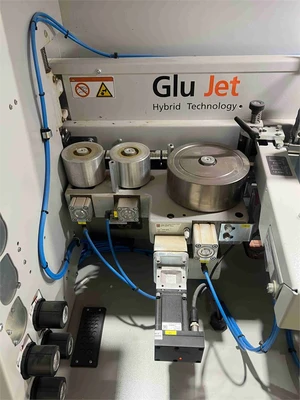

GLUING SYSTEM (GJ301): "Glue Jet" thin film technology processes "EVA" or "PUR" Glue, motorized, programmable glue nozzle (upper glue line) height positioning.
End Trimming Unit (1918): Front & rear 2 x 0.35 KW (0.5 HP) - 9,000 RPM motor each, uni-point swivel-axis for no re-indexing when changing from flush to bevel end trim (0° - 10° bevel),"PCS" programmable pneumatic change-over from flush to bevel.
Multi-function Trimming Unit (1826): Servo controlled, .65 KW (0.87 HP) - 12,000 RPM each motor. Uni-Point design, pneumatic.

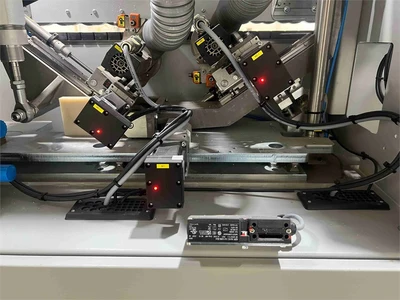

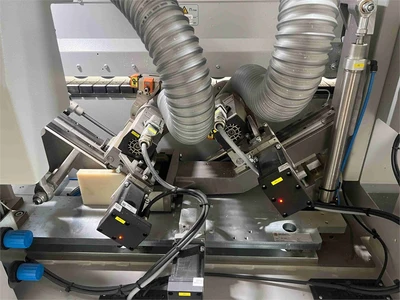

Trimming & Corner Rounding Unit (1833): For linear edge-trimming or vertical corner rounding with servo motor programmable positioning, (2) Motor 0.22 KW (0.30 HP) - 9000 RPM for up to 3 mm edge thickness and work-piece thickness min./max. 8 - 60 mm (0.31 - 2.36"), max. feed speed 18 MPM (60 FMP) up to 25 mm panel thickness, (16 m/min. 38 mm thickness, 12/m/min. 60 mm thickness).

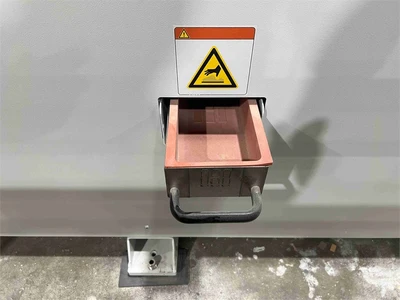

Profile Scraping Unit (1939): knife position for PVC edges, reversible insert carbide knives, equipped with air-jet blowers and chip collector box.
Glue Scraping Unit (17 Scrape): Flat, top/bottom, ball bearing guided and pneumatic controlled.

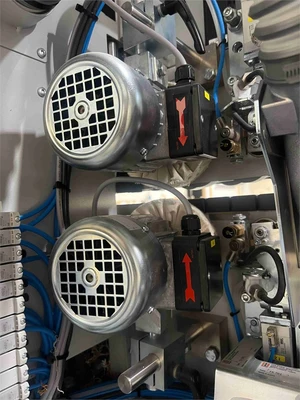

Buffing Station (1940): Top & bottom buffing motors with 150 mm ( 6.0") cloth buffing wheel diameter, adjusts in any direction (vertical tilt is 0° - 5°, horizontal swivel is 0° - 20°); 1,440 RPM wheel rotation.
Return conveyor NOT included, listed in lot 003
