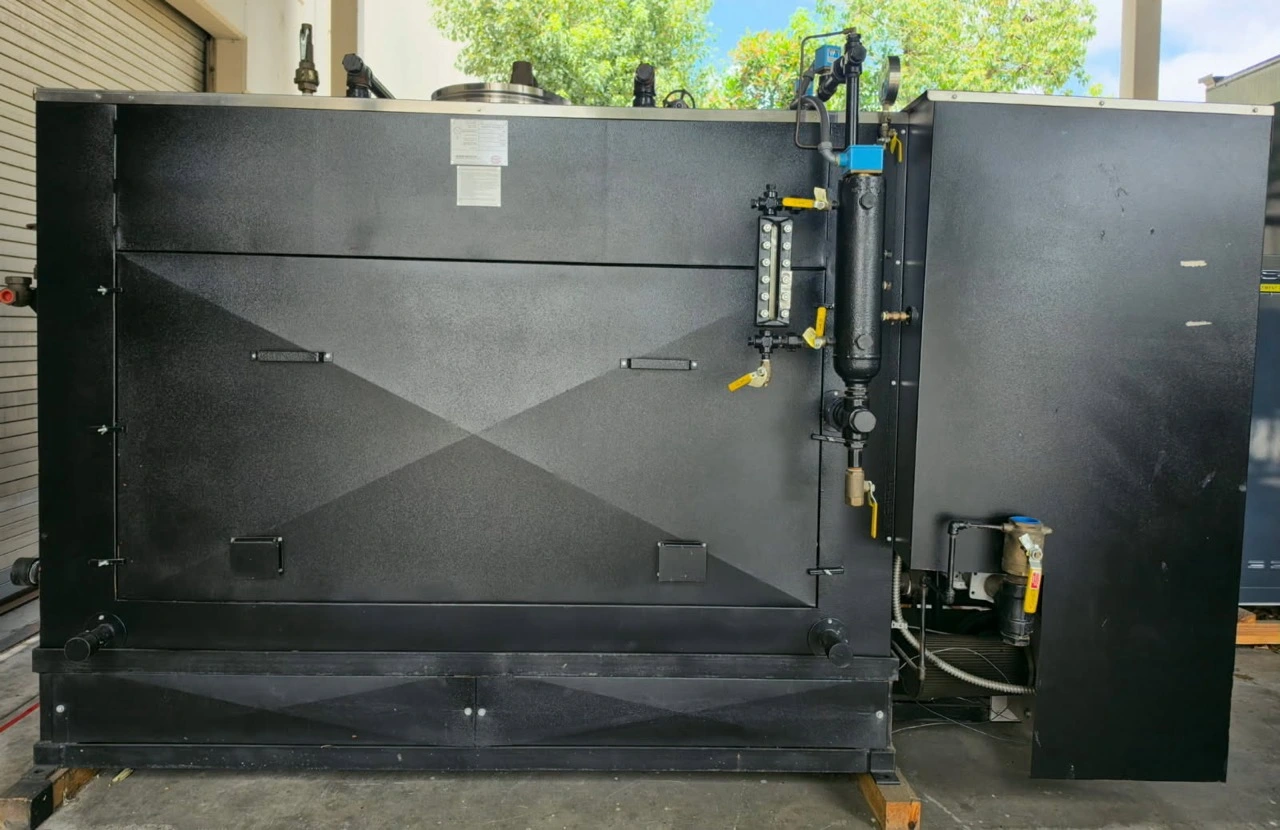

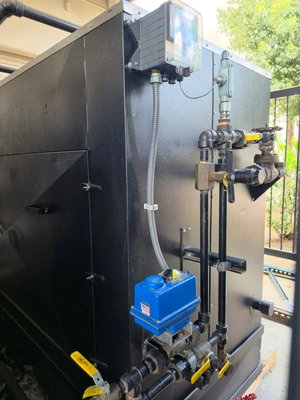

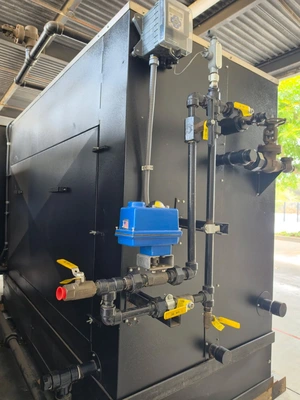

USED 2022 FULTON DUAL 48 HP LOW NOX STEAM BOILER

Manufacturer: Parker Boiler
System Type: Dual Steam Boiler Package
Boiler Quantity: 2
Boiler Model: 48L
Boiler Horsepower: 48 HP each
Fuel: Natural Gas
Maximum Allowable Working Pressure: 150 PSI
Recommended Operating Pressure: Up to 135 PSIG
Steam Capacity: 1,656 lbs/hr each (3,312 lbs/hr total)
Heat Input: 1,995 MBH each
Heat Output: 1,596 MBH each
Boiler Construction: Horizontal Drum Sectional Water Tube
ASME: “S” Stamp
Electrical Requirements:
230V / 3 Phase / 60 Hz
115V / 1 Phase / 60 Hz controls
Burner Type: Low NOx Premix Metal Fiber Burners
Ignition: Spark Ignition

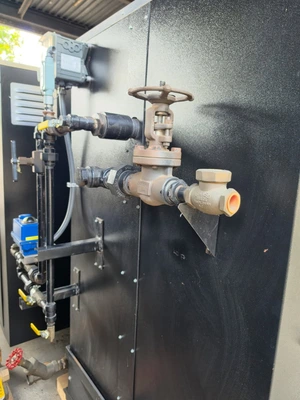

Steam Outlet: 2 in.
Gas Supply: 7–14 in. W.C.
Steam Relief Valve: 150 PSI
Approximate Weight (Each Boiler): 4,305 lbs
Approximate Shipping Weight (Each Boiler): 4,680 lbs
Included Equipment

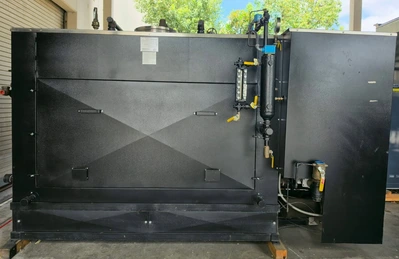

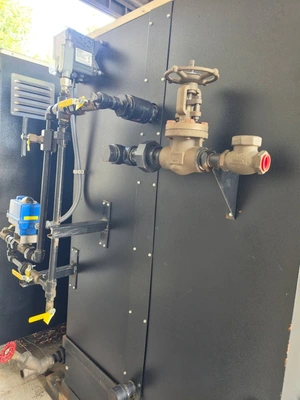

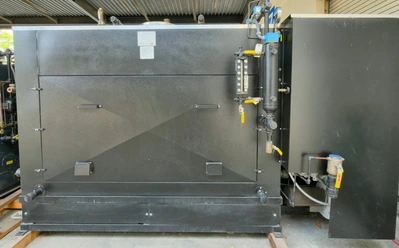

(2) Parker 48L Low NOx Steam Boilers

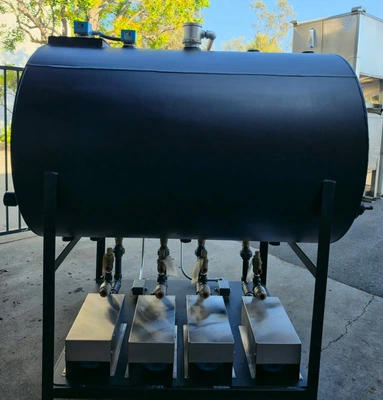

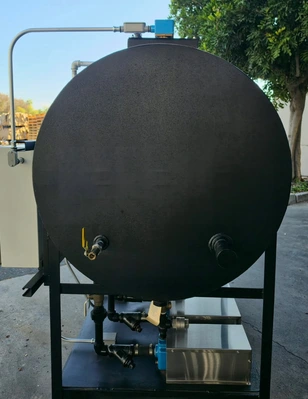

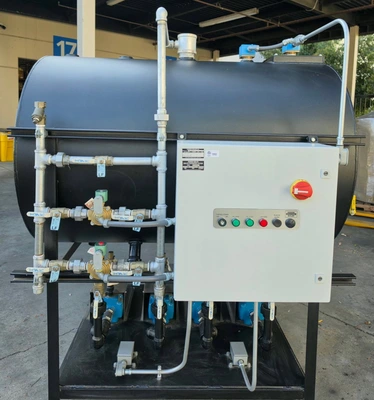

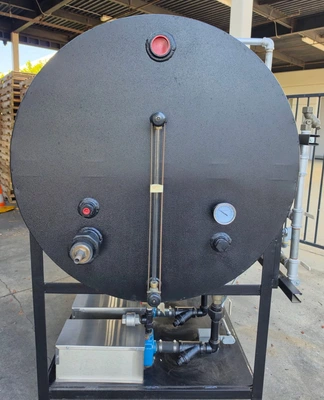

Parker R8-150-3 Feedwater Return System
264-gallon tank
Dual feed pumps
Automatic water make-up
Parker BD3048 Blowdown Tank
Dual LMI Chemical Feed Pumps
Poly Chemical Tank

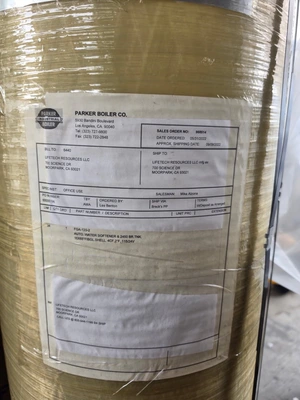

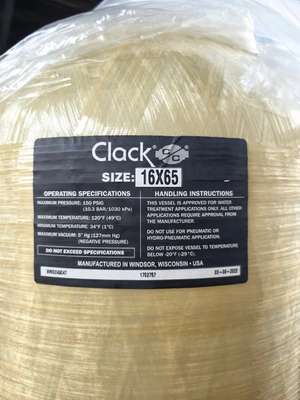

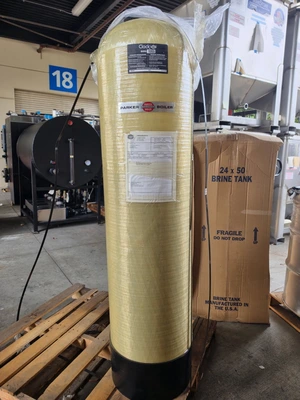

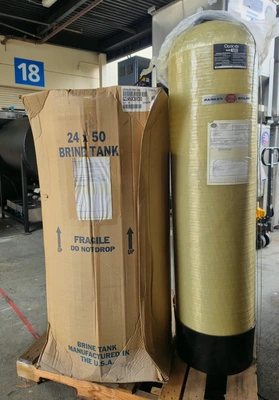

Parker FGA-120 Automatic Water Softener
ParkerView Lead/Lag Boiler Control Panel
Boiler control panel upgrades
Automatic boiler sequencing
Cellular remote monitoring capability
Alarm monitoring and historical data logging
