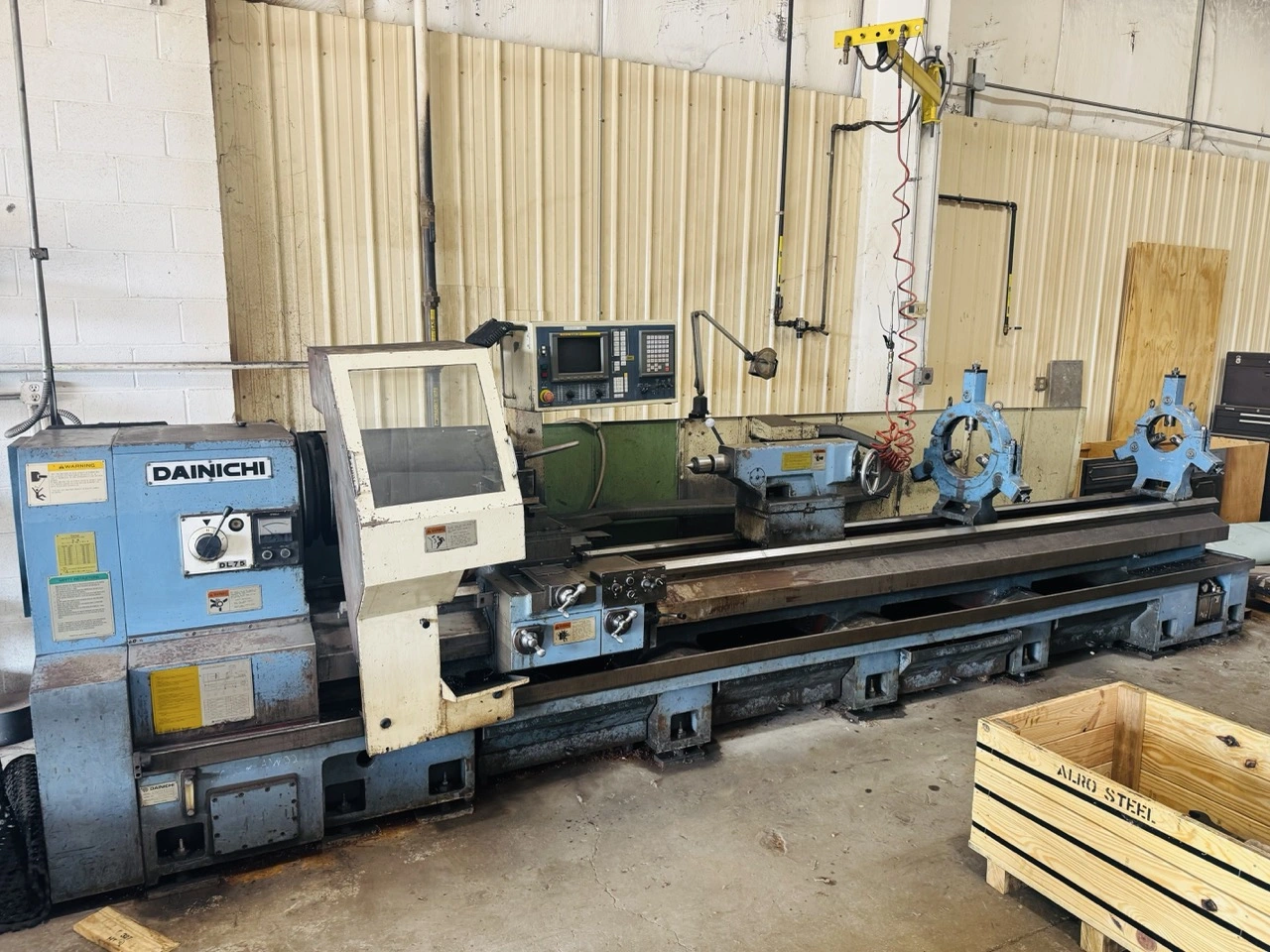

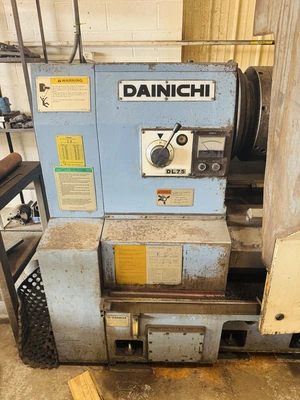

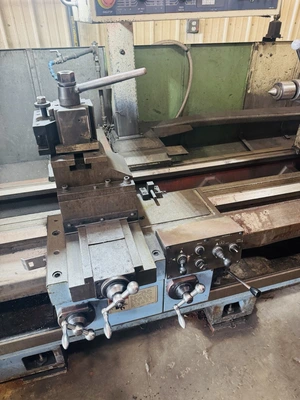

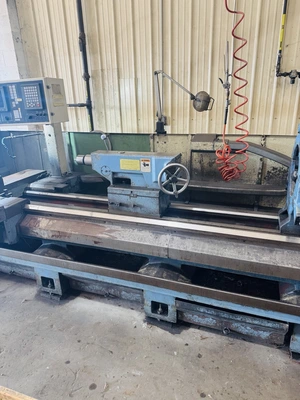

USED 1996 DAINICHI DL75X400
Overview
Specs
Maximum Turning Diameter: 28.8″
Maximum Turning Length: 157″
Distance Between Centers: 157.5″
Swing Over Bed: 29.5″
Swing Over Carriage: 18.9″
X-Axis Travel: 17.7″
Z-Axis Travel: 160.2″
Spindle Bore: 3.35″
Maximum Bar Capacity: 3.35″
Spindle Speed: 12–1,120 RPM
Spindle Motor: 15/10 HP
Chuck Size: 12″
Tailstock Taper: MT No. 5
Rapid Traverse: Equipped
Electronic Positioning: DRO System
Coolant System: Yes
Maximum Workpiece Weight Between Centers: 3,307 Lbs.
Approximate Machine Weight: 12,100 Lbs.
Equipped With:

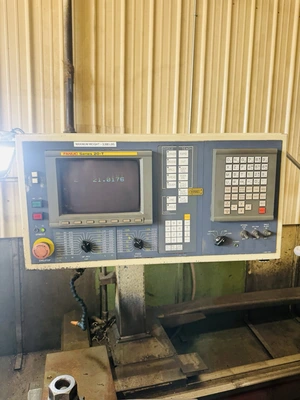

Fanuc Series 20-T CNC Control

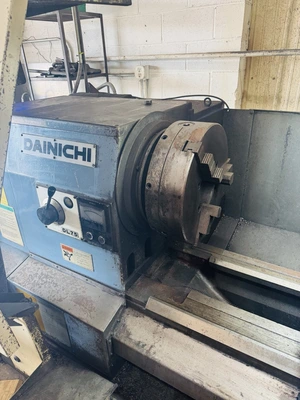

12″ 3-Jaw Chuck
Tailstock

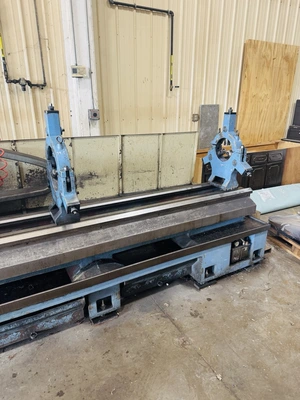

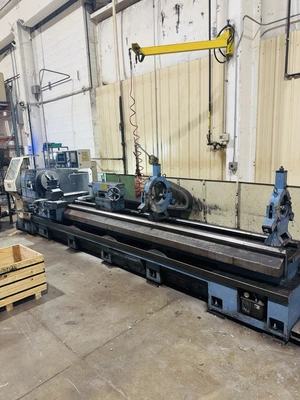

(2) Factory Steady Rests
Rapid Traverse
Coolant System
