USED LISSMAC SBM-XS 300 G1E1 ALU MIX

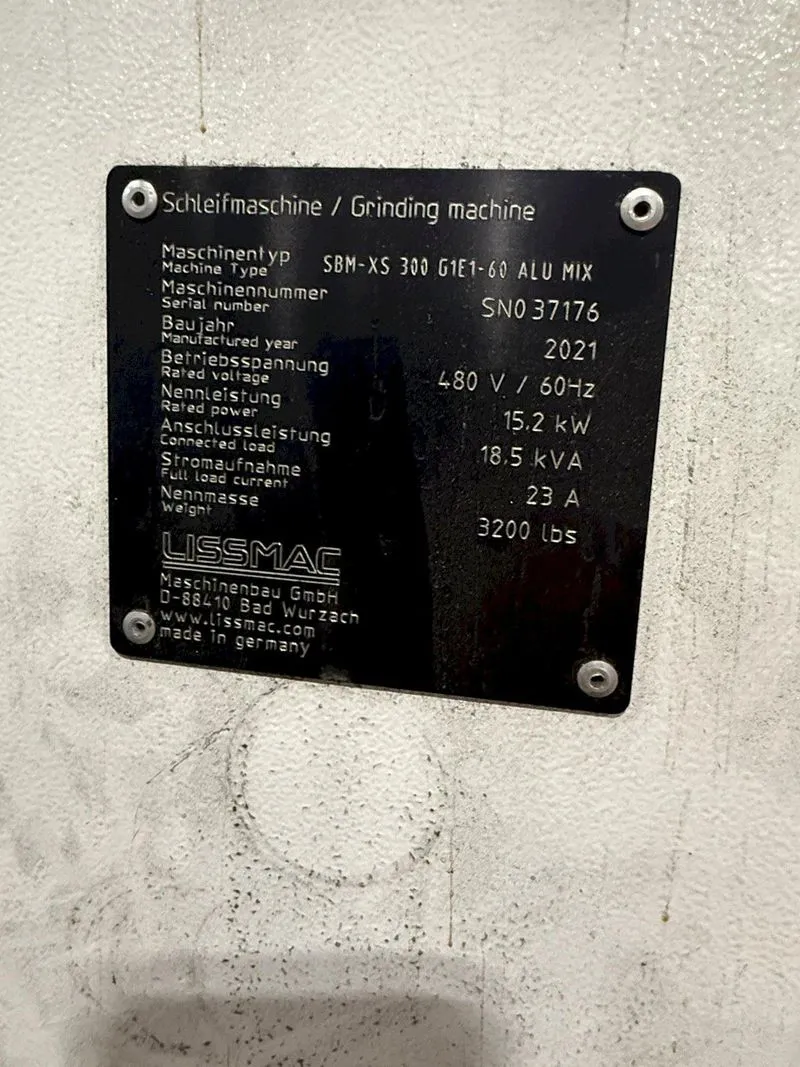

Serial ...................... SNO-37176
Year new .................... 2021
Model ....................... SBM-XS 300 G1E1 ALU MIX
Working width - Max ......... 11.8″ (300 mm)
Material thickness .......... 0.04″ – 0.6″ (1 – 15 mm)
Materials worked ............ Steel, Stainless steel, Aluminum
Feed rate – variable ........ 0 to 6.6 Ft/min (0 to 2 M/min)
Integrated turning station .. Yes, works both sides
Front part return ........... Yes
Dust collector .............. Lissmac DDE 1500
Total power ................. 20.3 HP

Weight – catalog ............ 3,200 Lbs.
Dimensions – catalog ........ 51″(L) x 91″(W) x 75″(H)

The Lissmac Deburring Machine model SBM-XS 300 G1E1 ALU MIX is a fully automatic small parts processing machine for deburring on both sides and edge rounding of inner and outer contours for punched, laser, and fine plasma cut workpieces in one operation. Cross-sanding belts remove burrs and surface splashes while rotating flexible grinding flap rollers evenly round all the workpiece edges even on inner and outer contours. Galvanized surfaces/protective films are retained while secondary burrs are removed.

Brand
LISSMAC
Type
Grinders
Stock No.
25916
