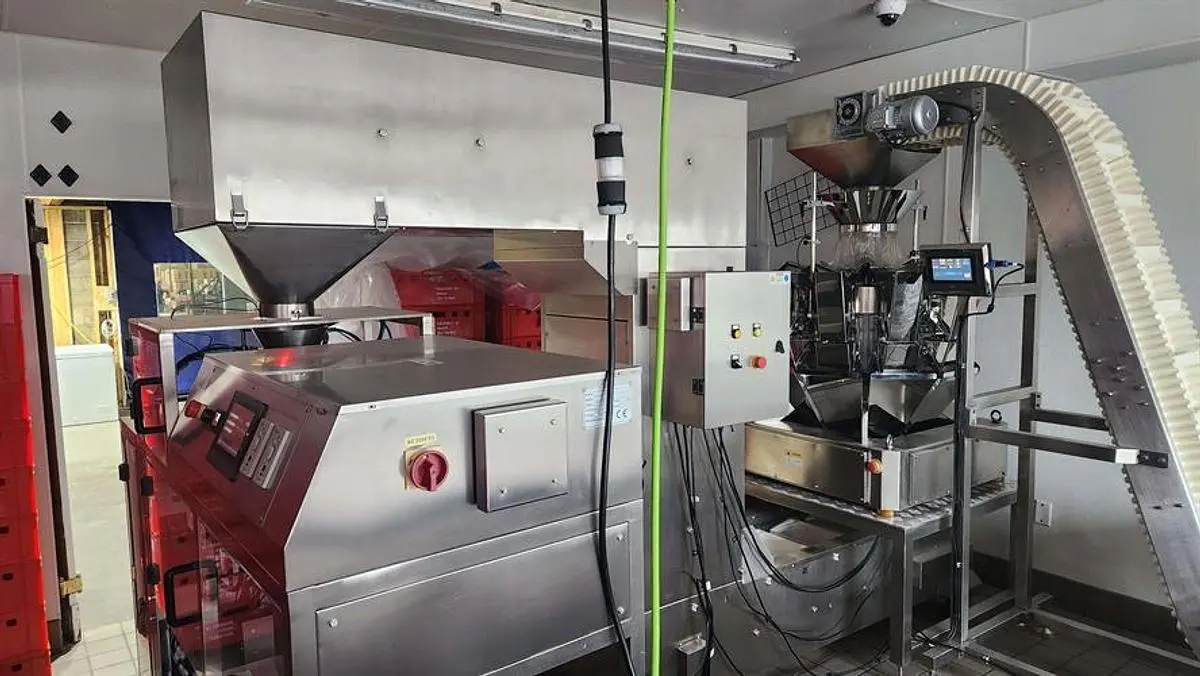

Shenzhen Ouya Industry Pre-made Pouch Machine with Scales

Shenzhen Ouya Industry Pre-made Pouch Machine with Scales

System built 1999

Inclined Cleated Conveyor with stainless steel hopper with vibrator feeder to feed Scale

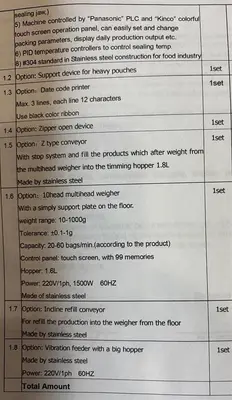

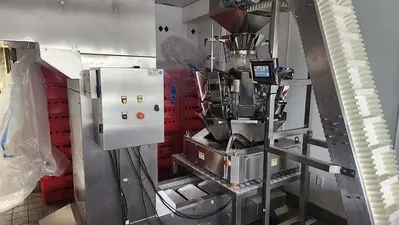

10-Head Rotary Scale
- 1.6 liter smooth stainless steel buckets
- 10-1000 gram range with +- 0.1 to 1 gram
- Single phase, 220 volts
- Scale discharges weighed amount into one bucket of a bucket elevator

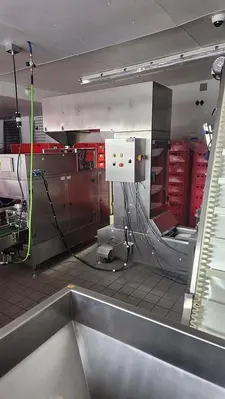

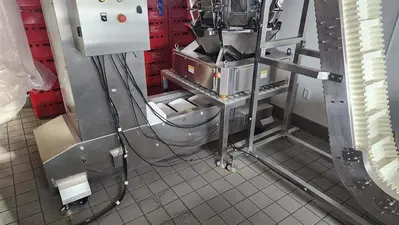

Bucket Elevator Stainless Steel Z-Shaped to feed Pre-made pouchmachine

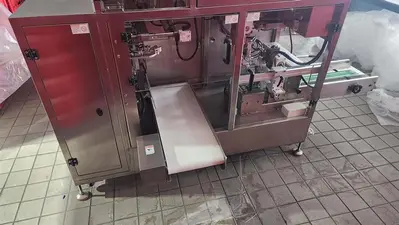

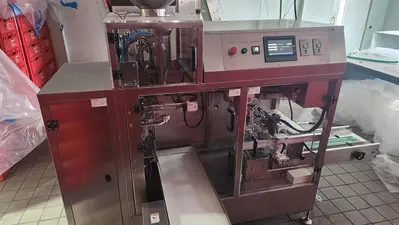

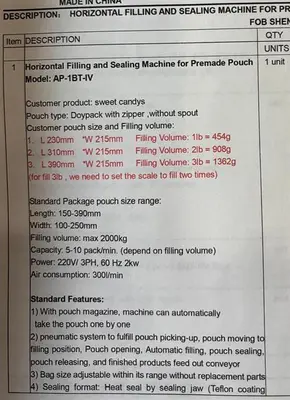

Shenzhen model AP-1BT-IV Pre-made Pouch Machine
- Width: 100-250 mm
- Length: 150-390 mm
- Capacity: 5-10/minute
- 3 phase, 220 volts
- Pouch magazine station
- Pneumatic system to pickup pouch and move to fill position
- Pouch opening station
- Filling station
- Pouch heat sealing station
- Pouch release station

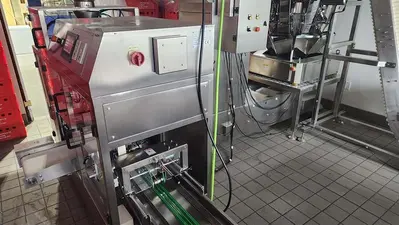

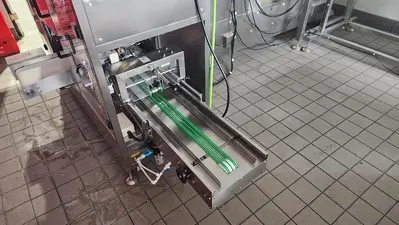

- Pouch discharge conveyor
- Hot stamp printer
- Customer current pouch sizes: 215 mm W x 230 mm long 1lb, 215 mm W x 310 mm long 2lb, 214 mm width x 390 mm long 3 lb (for 3lb fill need to set scale to fill two times per cycle)
