USED UNIQUE MME-3

Used Equipment Facts About This Machine
Manufacturer
Unique Mixers & Furnaces
Product Overview

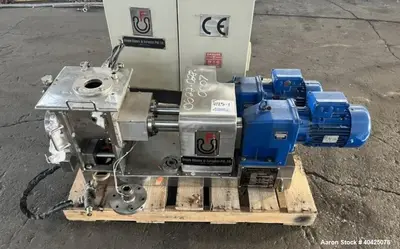

The Used Unique Mixers & Furnaces PVT Mixtruder, Model MME-3, is a compact laboratory and pilot-scale masticator mixer extruder designed for intensive mixing, kneading, and extrusion of high-viscosity materials. Featuring 316 stainless steel product contact surfaces and 304 stainless steel non-product contact surfaces, this versatile processing system is well suited for pharmaceutical, chemical, food, cosmetic, adhesive, polymer, and specialty material applications.

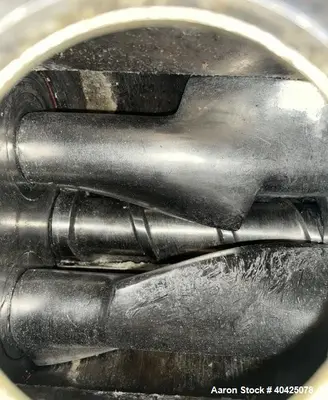

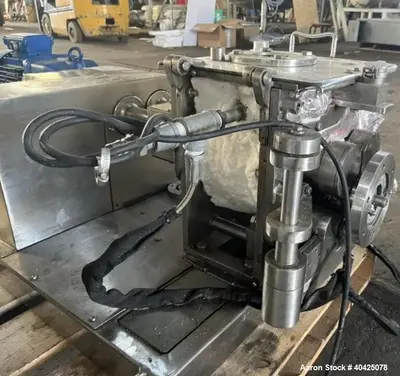

The unit has a 6-liter (1.58-gallon) total bowl capacity with an approximate 3-liter (0.80-gallon) working capacity. Equipped with heavy-duty masticator blades, a jacketed mixing bowl rated for 4 kg/cm² (56 PSI), and independent 3 HP mixer and extruder drives, the MME-3 provides efficient processing of dense, cohesive, and difficult-to-mix materials.

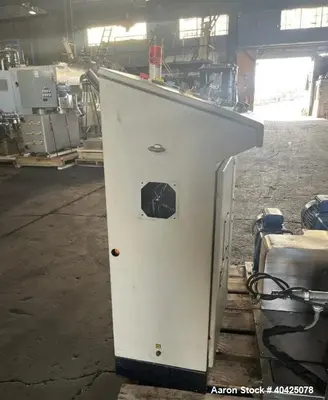

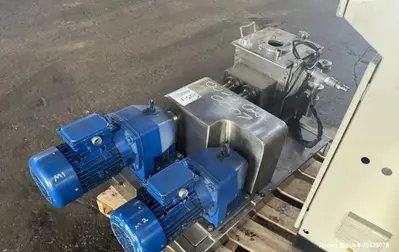

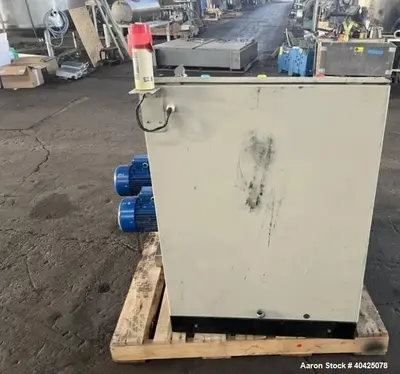

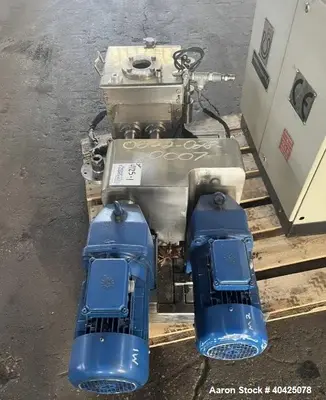

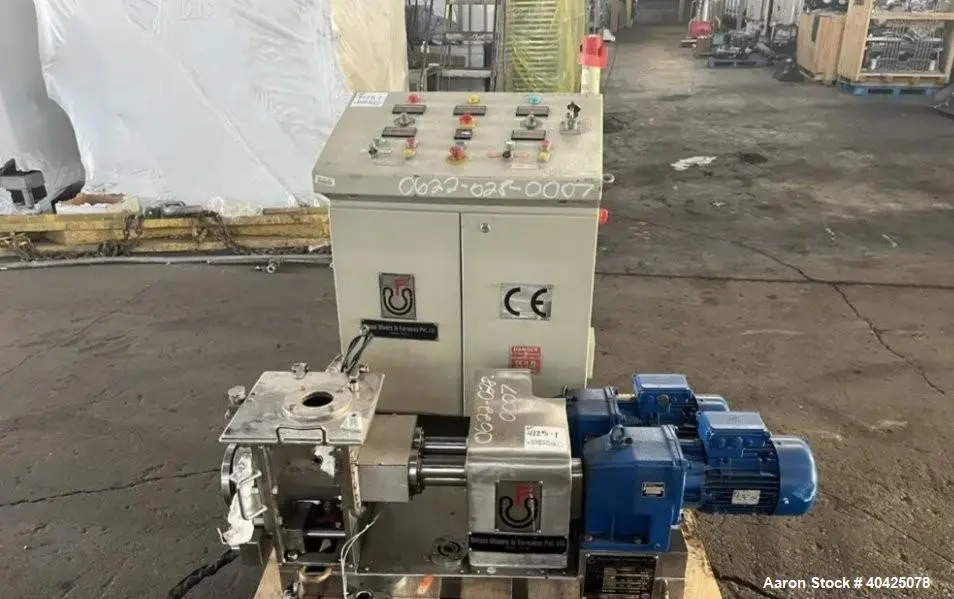

Both the mixer and extruder are powered by 3 HP motors operating through 17.12:1 gear reducers, with an external control panel featuring variable frequency drive (VFD) motor controllers for precise speed adjustment. Built in 2006, the unit is mounted on a compact unitized base and includes removable end plates and a flat cover for convenient cleaning and maintenance.

Note: This listing includes the mixer/extruder and external VFD control panel (Order #U-2805). Tooling, dies, ancillary feeding equipment, and downstream processing equipment are included only if specifically stated.

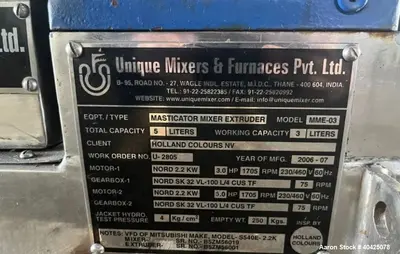

Specifications

Specification
Details

Manufacturer
Unique Mixers & Furnaces

Model
MME-3

Equipment Type
PVT Mixtruder / Masticator Mixer Extruder

Condition
Used

Build Year
2006

Product Contact Material
316 Stainless Steel

Non-Product Contact Material
304 Stainless Steel

Total Capacity
6 Liters (1.58 Gallons)

Working Capacity
3 Liters (0.80 Gallons)

Mixing Blades
Masticator Blades

Bowl
Jacketed

Jacket Pressure Rating
4 kg/cm² (56 PSI)

Mixer Motor
3 HP, 1705 RPM

Mixer Voltage
230/460 Volt

Mixer Gearbox Ratio
17.12:1

Extruder Motor
3 HP, 1705 RPM

Extruder Voltage
230/460 Volt

Extruder Gearbox Ratio
17.12:1

Controls
External Control Panel with VFD Motor Controllers

Control Panel Order
U-2805

Mounting
Unitized Base

Cover
Flat Cover

End Plates
Removable

Features

316 stainless steel product contact surfaces
304 stainless steel exterior construction
6-liter total vessel capacity
3-liter working capacity
Heavy-duty masticator mixing blades
Integrated mixer and extruder design
Jacketed mixing bowl
Jacket rated to 56 PSI
Independent 3 HP mixer drive
Independent 3 HP extruder drive
17.12:1 gearbox reduction on both drives
External VFD motor controls
Removable end plates for simplified cleaning
Mounted on a compact unitized base
Built in 2006

Applications
The Unique MME-3 is commonly used for processing:

High-viscosity pastes
Pharmaceutical formulations
Ointments
Creams
Cosmetic compounds
Adhesives
Sealants
Polymer compounds
Rubber compounds
Specialty chemicals
Food pastes
Research and pilot-scale process development

Common Industries

Pharmaceutical manufacturing
Cosmetics
Chemical manufacturing
Food processing
Adhesives and sealants
Plastics and polymers
Rubber processing
Specialty chemicals
Research laboratories
Pilot plant operations

Products This Mixtruder Is Used For

Masticator mixers
Mixer extruders
Sigma-type mixing equipment
Laboratory mixer extruders
Pharmaceutical mixing equipment
High-viscosity mixers
Paste processing equipment
Polymer mixing equipment
Jacketed laboratory mixers
Pilot plant processing equipment
Adhesive mixing systems
Specialty chemical processing equipment

Frequently Asked Questions
What is the working capacity of the MME-3?
The mixer has a 6-liter total capacity with an approximate 3-liter (0.80-gallon) working capacity.
What materials are used for construction?
The product contact surfaces are constructed from 316 stainless steel, while the non-product contact surfaces are 304 stainless steel.
Is the mixing bowl jacketed?
Yes. The bowl is jacketed and rated for 4 kg/cm² (56 PSI) for heating or cooling applications.
How are the mixer and extruder driven?
The unit features independent 3 HP motors for both the mixer and extruder, each operating through a 17.12:1 gearbox reduction and controlled by VFDs.
Does the unit include speed controls?
Yes. An external control panel with VFD motor controllers (Order #U-2805) is included for variable speed operation.
Can Aaron Equipment assist with shipping and logistics?
Yes. Aaron Equipment can coordinate professional crating, freight, export documentation, and worldwide shipping logistics for mixer extruders, processing equipment, and complete production systems.
