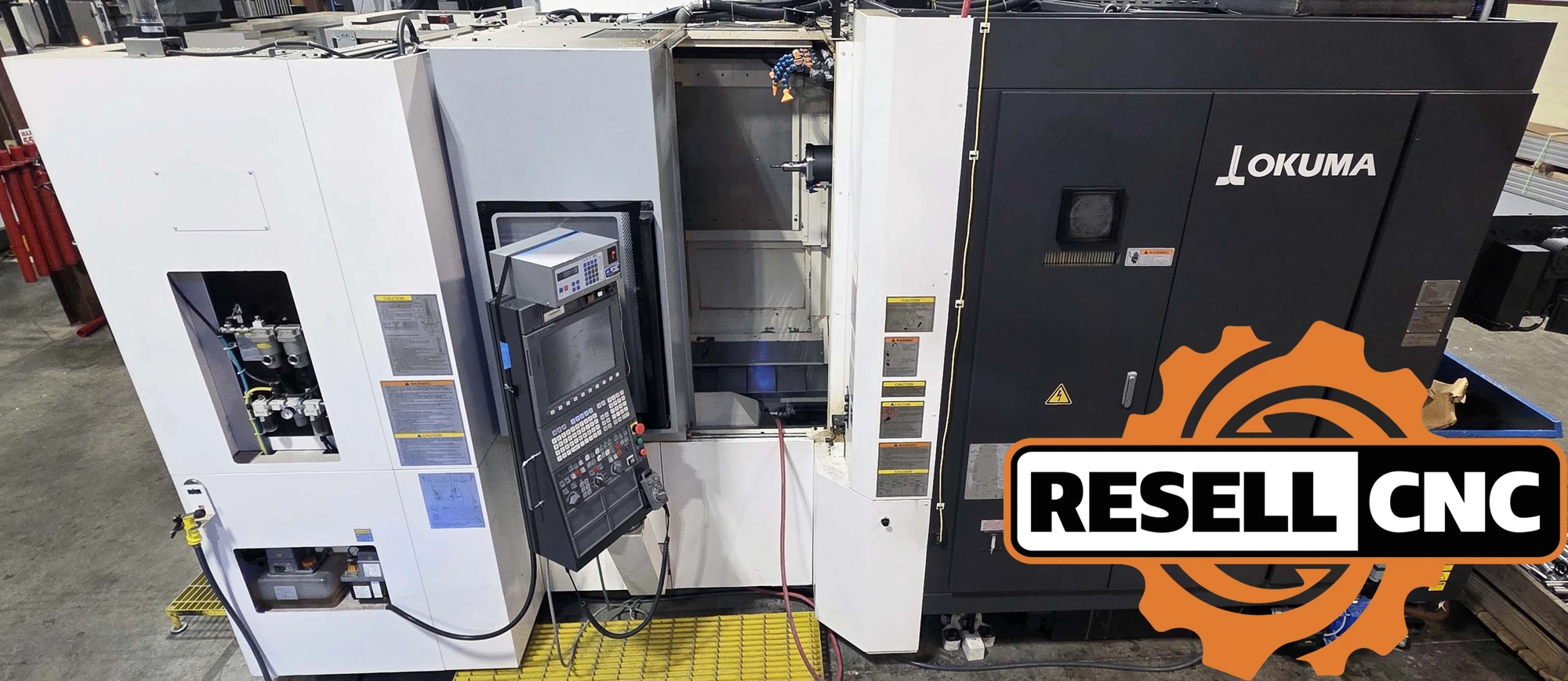

USED 2017 Okuma MB-5000

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Control Options: 15" Color LCD Touchscreen

4GB Ram Memory

120GB SDD

RS232 Port

MT Connect Full Capacity

OSP Suite Software

Windows Operating System

3D Simulation

Angle Chamfering

Auto Power Shut-Off

Extended Common Variables

Helical Cutting

I-MAP

Pitch Error Compensation

Programmable Travel Limits

Rapid Traverse Override

Schedule Program Function

Simple Load Monitor

Auto Work Gauging

Advanced One Touch IGF

Additional Machine Specs: Spindle Chiller

Tool Breakage Detection

Renishaw OMP60

MP Systems Splash Gun

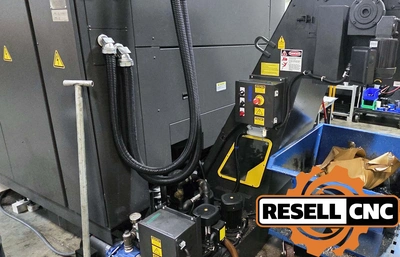

Mayfran Consep 2000 Chip Conveyor

3 Light Tower

B Axis: false
C Axis: false

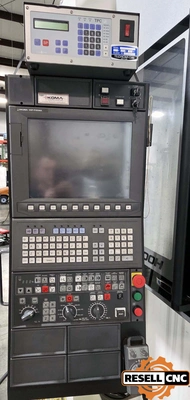

Control Make Model: OSP P300MA CNC Control
Control Options: Coordinate Rotation and Scaling, High Speed Machining, USB, Ethernet / LAN, Synchronized Tapping, Inch/Metric Conversion, Manual Pulse Generator / Pendant
Coolant Psi: 1000.0
Coolant Type S: Thru-Spindle Coolant
Horizontal Table Pallet Size In MM: 500.0
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Machine Options: Transformer
Max Table Pallet Load: 1100.0
Max Tool Diameter: 5.91
Max Tool Diameter Adjacent: 2.76
Max Tool Length: 11.81
Max Tool Weight: 22.0
Number Of Pallets: 2.0
Programmable Tailstock: false
Rapid Traverse: 2362
Single Turret: false
Single Turret Live Tooling: false
Spindle Center To Table Top: 5.31" - 35.24
Spindle Motor: 35
Spindle Speed: 15000.0
Spindle Taper Other: Big Plus
Spindle Taper Type: CAT#40
Sub Spindle: false

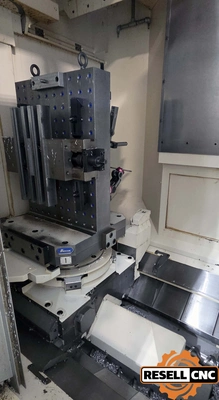

Table Pallet Indexing: Full 4th Axis (Continuous)
Tailstock: false
Tool Changer Type: Chain
Tool Magazine Capacity: 64.0
Twin Turret: false
X Travel: 29.92
Y Axis: false
Y Travel: 29.92
Z Travel: 29.92
