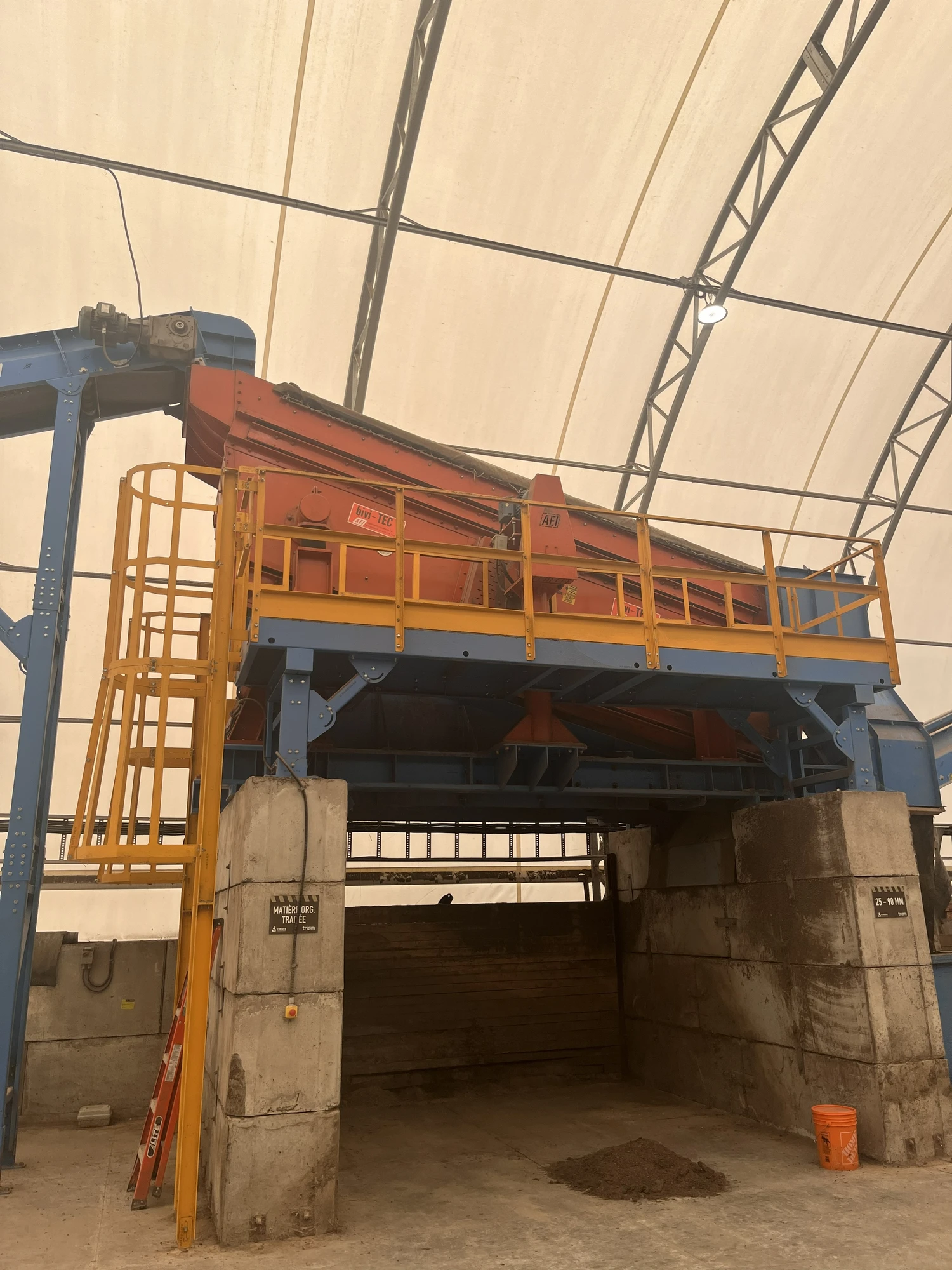

USED 2021 AEI KRL/DD 1300x4M OX

- BIVITEC KRL/DD 1300x4M OX, Double Deck Patented Double
Oscillation Inclined Screen with:

- Top Deck fitted with (12) 5mm thick urethane panels with 15mm
Round openings and patented wedge fastening system

- Bottom Deck fitted with (12) 3mm thick urethane panels with 3mm
x 10mm slotted openings and patented wedge fastening system

- two-bearing vibrating mechanism located between the decks with
heavy duty screen roller bearings

- complete drive unit consisting of a Cardan line shaft drive, Vbelt
drive and sheaves, drive guard, 25 HP, 1800 RPM, TEFC, 575
volt, 3 phase electric motor, fixed motor mount on right side

- heavy duty screen basket with patented Ox-horn sealing system

- floating frame mounted on rubber isolation blocks

- precision construction steel Ox-horn panel supports

- base mounted on rubber springs for smoother performance

- canvas screen cover for quick attachment and removal

- heavy duty under screen support frame

- prime and finish painted

- shipping weight approximately 12,800 lbs.
