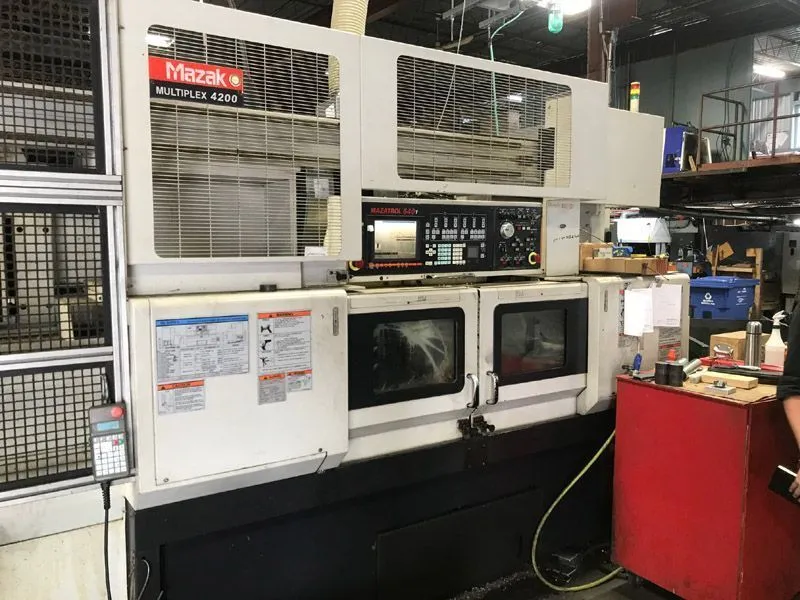

USED 2004 MAZAK MULTIPLEX 4200

Maximum Swing ............................. 12.5"
Standard Cutting Diameter.................. 10.24"
Maximum Bar Diameter....................... 2.0"
Maximum Machining Length For Chuckwork..... 7.0"
Maximum Machining Length For Shaftwork..... 21.0"

MAIN SPINDLE (L&R)
Distance Between Spindle Faces:
Max.(Both Heads @ Home Position)...... 46.85"
Min................................... 10.15"
Spindle Nose.............................. A2-6"
Spindle Bore.............................. 2.4"
Spindle Speed/Ranges...................... 35-5,000 RPM/1
Spindle Horsepower (Cont/30 Mins).......... 20/30 HP (A.C.)
Spindle Torque............................. 258.2 ft.-lbs.

TURRET (L&R)
Type of Turrets............................ Dodecagonal/Drum
Non-Lift
Tool Holder Shanks......................... Modified VDI
Turret Index Time (1 Step)................. 0.2 sec.
Total Number of Tools...................... 24 (12x2)
Tool Size (Turning & Facing)............... 1" x 1"
Tool Size (Boring Bar Max. Dia.)........... 1-1/2"

AXIS
Travel X-Axis (L&R)........................ 9.06"
Travel Z-Axis (L).......................... 17.25"
(R).......................... 19.37"
Rapid Traverse: X-Axis.................... 1200 IPM
Z-Axis.................... 1300 IPM

MACHINE
Machine Floor Space (W x L)
W/O Automation or Bar Feeder, etc...... 81.54" x 140.6"
Machine Height............................. 82.3"
Total Power Required (Machine Only)........ 77.4 KVA
Air Requirements........................... 71 PSI / 14 CFM
Total Weight (For Machine only)............ 16,060 lbs.
