NEW SCS 00724

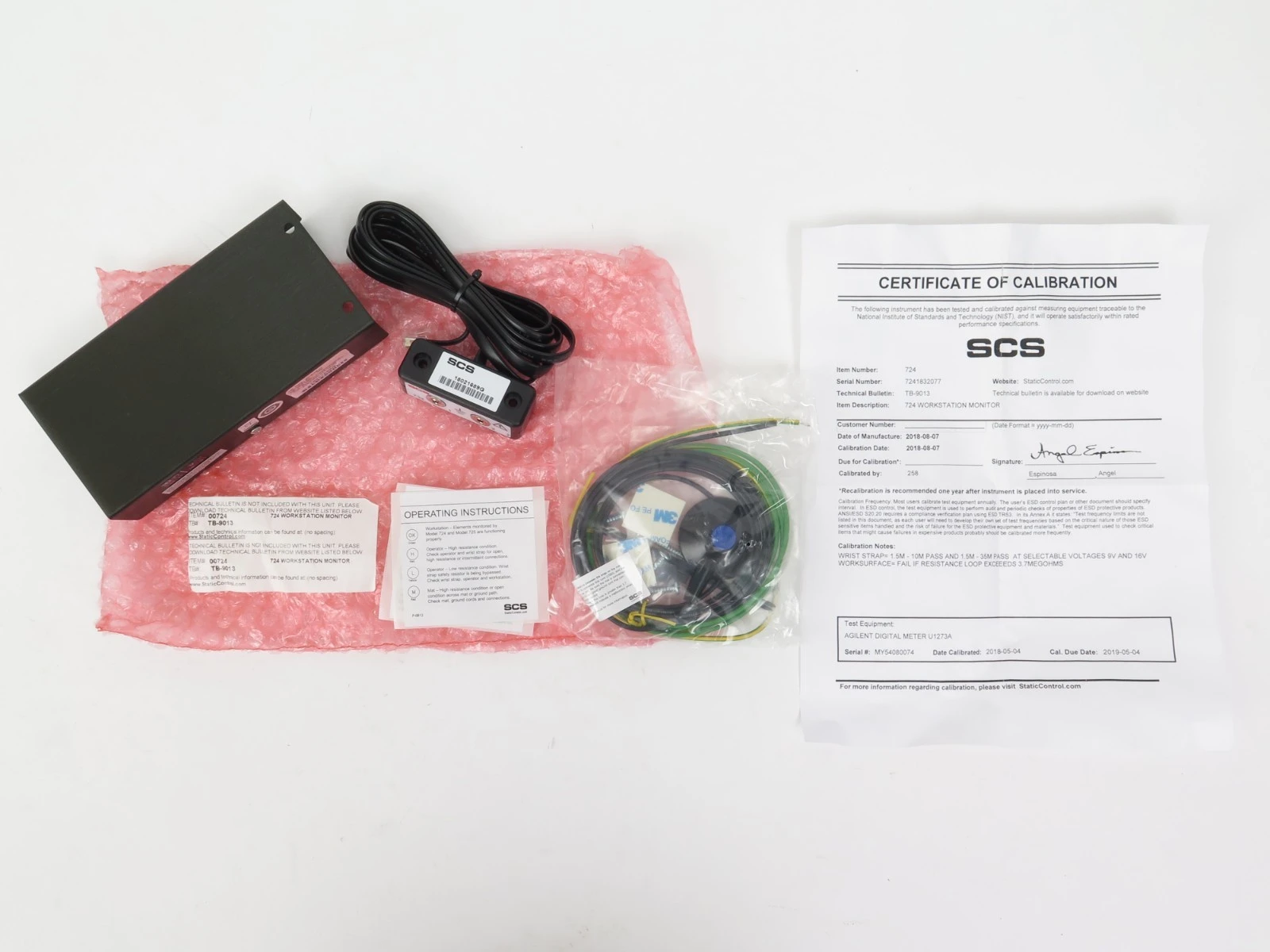

Item Specifics Manufacturer: SCS Brand: SCS Model: 724 Model Number: 00724 Type: Continuous ESD Workstation Monitor Monitoring Capacity: Two Operators and One Worksurface Wrist-Strap System: Dual-Wire / Dual-Conductor Power Input: 25V DC at 50mA Power Connector Polarity: Center Negative Power Connector Size: 5.5mm OD x 2.1mm ID x 9.5mm Selectable Operator Test Voltages: 9V DC or 16V DC Operator Test Current: Less Than 3 Microamps Selectable Operator Resistance Limits: 10 Megohms or 35 Megohms Operator Test Range: 1.5 Megohms to 10 or 35 Megohms Worksurface Test Limit: 3.7 Megohms Alarm Type: Visible LED and Adjustable Audible Alarm Operator Alarm Response Time: Less Than 3 Seconds Worksurface Alarm Response Time: Less Than 2 Seconds Operating Temperature: 50°F to 110°F / 10°C to 43°C Monitor Dimensions: 6.5 x 3.125 x 1.375 Inches Compliance: ANSI/ESD S20.20 Certifications: cULus, CE and UKCA Country of Origin: United States Condition: New The official SCS manual confirms the electrical ratings, monitoring limits, dimensions, environmental specifications, certifications, and country of origin listed above. Condition DescriptionNew and unused in original manufacturer bubble-wrap packaging. The packaging may show minor shelf, storage, or handling wear. The monitor has not been installed or tested by us. Only the workstation monitor and items shown in the photographs are included. Please review the pictures carefully for the exact condition, connections, labels, packaging, and included components.DescriptionSCS Model 724 continuous workstation monitor, model number 00724, designed to continuously monitor the path-to-ground integrity of two operators wearing compatible dual-wire wrist straps and one conductive or dissipative worksurface mat.The monitor provides visible and audible notification of improper operator or worksurface grounding. Operator test voltage can be selected between 9V and 16V, while the upper resistance limit can be set to either 10 megohms or 35 megohms. The audible alarm can be disabled or adjusted to soft or loud operation.This model is designed for ESD-protected electronics assembly, repair, manufacturing, laboratory, semiconductor, aerospace, and cleanroom workstations where continuous grounding verification is required. SCS states that the 724 meets ANSI/ESD S20.20 requirements. A complete factory kit normally includes a dual-operator remote, remote cable, power adapter, ground cord, mat-monitor cord, terminal block, and mounting hardware. This listing includes only the items visible in the photographs; accessories should not be assumed to be included. Key Features Continuously monitors two operators and one worksurface Designed for compatible SCS dual-wire wrist straps Monitors wrist-strap and worksurface path-to-ground integrity Visible LED status and fault indicators Adjustable audible alarm with off, soft, and loud settings Selectable 9V or 16V operator test voltage Selectable 10 or 35 megohm upper resistance limit Detects high- and low-resistance operator conditions 3.7-megohm worksurface monitoring limit Less than three-second operator alarm response Compact workstation-mount design Meets ANSI/ESD S20.20 requirements Made in the USA New in original bubble-wrap packaging Shipping Returns Policies Shipping Orders ship within 1 business day of payment, subject to freight scheduling. We do not ship to Alaska, Hawaii, territories, or APO/FPO mailboxes unless prior arrangements are made. Any orders shipped via shipping or freight forwarder are final sale with no returns. Freight All freight damage must be noted on the Bill of Lading (BOL) at the time of delivery. Take clear photos of: The damaged item Packaging The BOL damage notation Retain all original packaging until the claim is resolved. Failure to follow these steps may result in denial of any refund related to shipping damage. International buyers are fully responsible for: Customs clearance Duties and taxes Brokerage fees Buyer must arrange for their own customs broker if required. Seller does not provide customs clearance services. All shipments are FOB origin, title and risk transfer to buyer at shipping point. Returns Anacapa Equipment Brokers, Inc. is committed to excellent customer service. Items are sold as-is with a 30-day Right of Return, unless otherwise stated. Only items shown in the listing photos are included. Buyer may return equipment for any reason within 30 days of receipt, provided it is returned in the same condition as shipped. No returns or refunds will be accepted if the buyer uses a shipping or freight forwarder for international shipment. Store Policies All equipment is sold as-is with no warranty of merchantability or fitness for a particular purpose. Buyer assumes all risk regarding the quality, performance, suitability, and safety of the equipment. Equipment should only be installed and operated by qualified personnel. Seller is not liable for any damages, injuries, or losses, incidental or consequential, related to the use of purchased equipment. Buyer agrees to defend, indemnify, and hold harmless Anacapa Equipment Brokers, Inc., its officers, employees, and agents from all claims, damages, or expenses, including legal fees, arising out of the purchase, ownership, or use of equipment.
