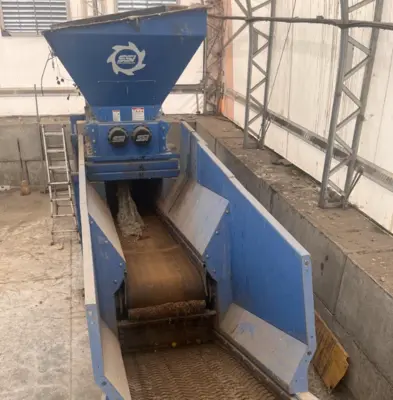

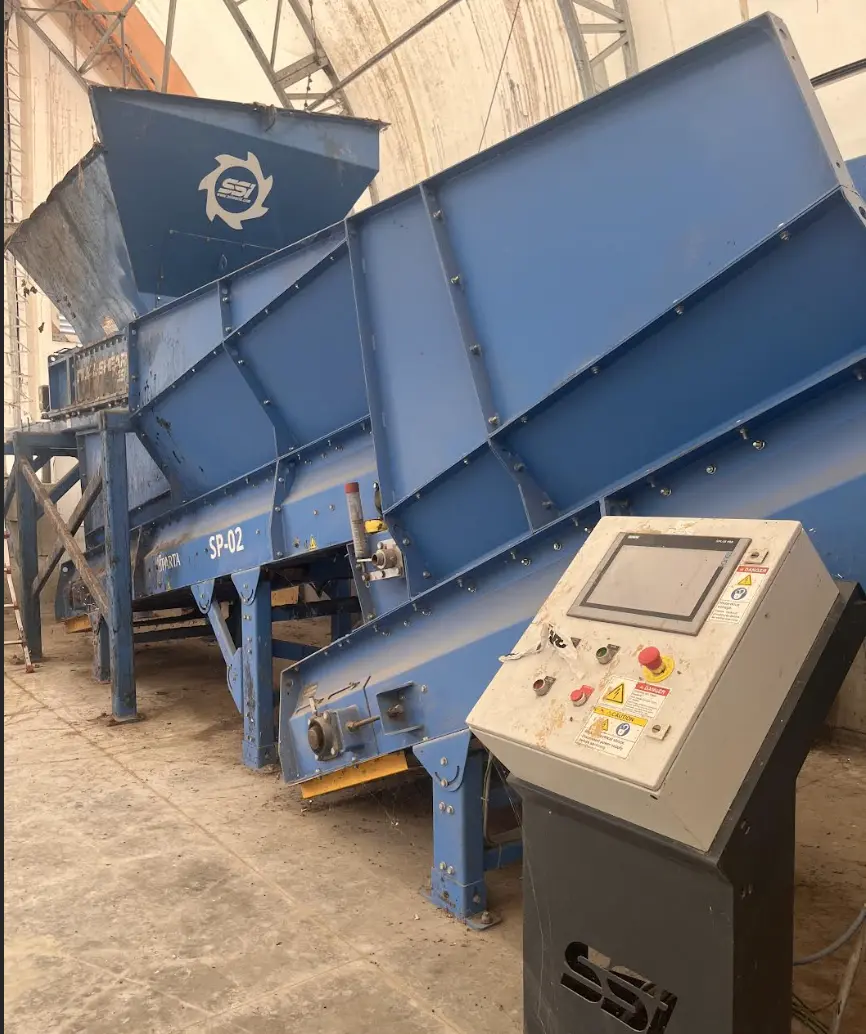

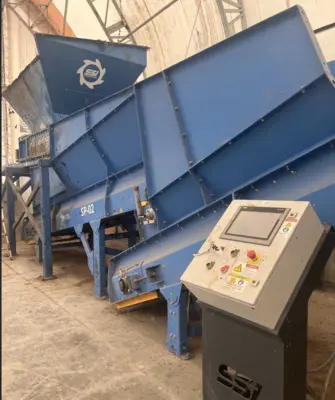

USED 2020 SSI M85
Overview
Shredder features:
Patented ACLS™ - Advanced Cutter Locking System
Patented SSP™ - Severe Shock Protection System
Individually removable cleaning fingers
Proprietary bearing & seal arrangements at shredder gearbox and endplate
CNC machined shredder frame – torsion box design, modular construction
Heavy-duty gear reducer
Shredder hardware:
35" (890mm) wide x 63" (1600mm) long cutting chamber
100HP (75kW) drive motor (TEFC)
18.1” (460 mm) diameter cutters designed for application
6” (152 mm) high strength hexagonal shafts
Funnel-style feed hopper
Shredder support stand; height can be up to 60” (1.5m) tall
Approx 1000 Hours, Conveyors NOT included
Specs
Shredder Dimensions
Voltage/Phase/Freq.
575/3/60
Cutting Chamber Width
35 in
(892 mm)
Control Voltage
24 VDC
Cutting Chamber Lengt
63 in
(1608 mm)
Stand Height
78.00 in
(1981 mm)
Planetary Gear Reducer
Manufacturer
Brevini
Weights
Model
SL4003
Shredder Assembly
18,500 lb
(8,330 kg)
Ratio
82.6:1
Heaviest Piece - Installation
SSP Coupling
Part Name
Shredder Head
Manufacturer
Falk
Part Weight
12,500 lb
(5,630 kg)
Model
1080T41
Maintenance weights
Spring Setting Dim 'X'
1.71 in
(43.4 mm)
Planetary Reducer
670 lb
(300 kg)
New Pad Break-In Dim X
1.92 in
(48.8 mm)
Shaft (drive)
860 lb
(385 kg)
Cutter
120 lb
(55 kg)
Endplate
650 lb
(295 kg)
Cutter Stack
Start Clearance
0.13in
(3.2mm)
Shaft Speeds
Synchronous
Maximum
Stack Order
see S3129.xls
Right Hand Shaft
22 rpm
27 rpm
Cutter Diameter
18.1 in
(460 mm)
Left Hand Shaft
17 rpm
22 rpm
Thickness (Nominal)
2.00 in
(51 mm)
Shaft Torque (Peak)
Endplate Hub Bolt Torques
Right Hand Shaft
43,400 ft-lb
(58,800 Nm)
Jacking Bolt Torque
35 ft-lb
(47 Nm)
Left Hand Shaft
54,800 ft-lb
(74,300 Nm)
Gearbox Bearing Nut Torque
Cutter Force at Tip (Peak)
Bearing Lock Bolt Torque
8 ft-lb
(11 Nm)
Right Hand Shaft
57,400 lbs
(255,500 N)
Left Hand Shaft
72,500 lbs
(323,000 N)
Oil Capacities
Cutter Tip Speed at Tip (Maximum)
Shredder Gear Box
20 gal
(76 L)
Right Hand Shaft
129 ft/min
(0.66 m/s)
Planetary Gear Reducer
2.5 gal
(10 L)
Left Hand Shaft
102 ft/min
(0.52 m/s)
