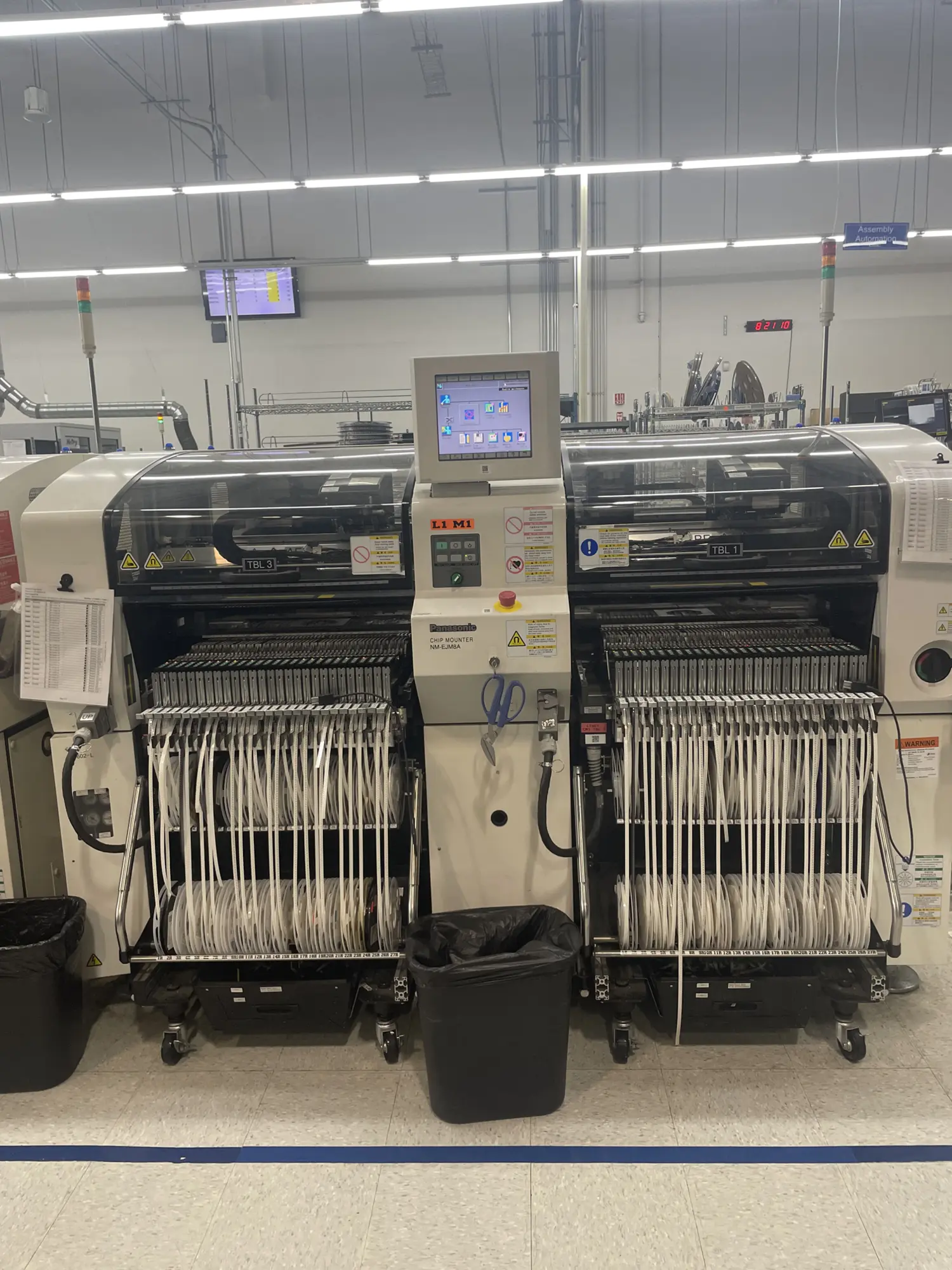

USED 2015 PANASONIC CM602-L (NM-EJM8A) MODULAR HIGH SPEED PLACEMENT MACHINE

Panasonic CM602-L High-Speed Modular SMT Pick & Place Machine (2015)

Note: The Panasonic CM602-L is available individually or as part of a complete turnkey Panasonic production line. The machine is connected to power and available for inspection by appointment.

Machine Details:
Manufacturer: Panasonic
Model: CM602-L
Model Number: NM-EJM8A
Machine Type: High-Speed Modular SMT Pick & Place
Year of Manufacture: 2015
Serial Number: 12FV6506
Head Configuration: 12 + 12
Width Adjustment: Automatic
SMEMA Compatible: Yes
Software Version: V6.56 (Q34TE)
Flow Direction: Right to Left
Hour Meter: Approx. 65,230 Hours
Country of Manufacture: Singapore

*Complete Turnkey Production Line Available*

This machine is available individually or as part of a complete Panasonic production line consisting of:

- (2) Panasonic SP-18-L Screen Printers with TCU
- Panasonic CM602-L High-Speed Modular Pick & Place Machine (2015, 12 + 12 Head Configuration)
- Panasonic CM602-L Pick & Place Machine with Extension Conveyor (2012, 8 + 8 Head Configuration)
- Panasonic DT401 Modular Pick & Place Machine (2012, 3-Head with Tray Configuration)
- (2) Panasonic PanaCIM Pre-Setup Stations
- Vitronics XPM3i 1030 10-Zone Reflow Oven (2012)
- SMEMA-Compatible Board Handling Equipment

Individual machines or the complete production line are available for purchase.
