USED 2016 AMADA H-550EII

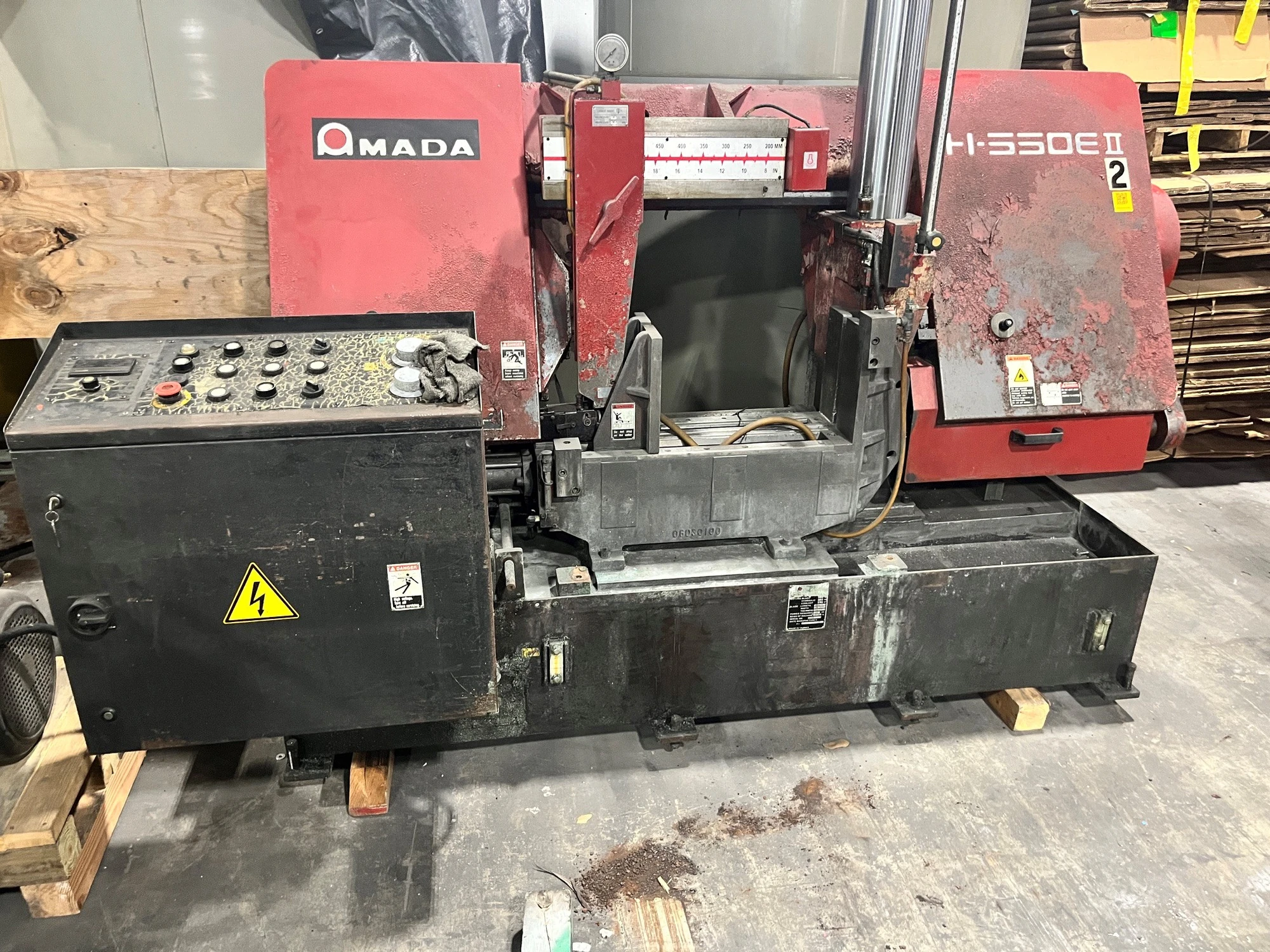

Amada H-550E-II Horizontal Band Saw (2016)

Cutting Capacity:
(Round) 7.9 to 18.9in.
(Rectangle W x H) 7.9 x 18.9 1.7 x 18.9 in.
Saw Blade Dimension (W x T x L) 1.61 x 0.051 x 192 in.
Running Speed 56,82,115,148,180,213,246 fpm.
Breakage sensor - Yes.
Sawhead Down Feed controller.
Hydraulic (pressure and flow feedback control)
Depth-of-cut setting / manual.
Table Height 26.6 in.
Allowable loading mass 2000kg.
Power Source Voltage and Frequency 200/220 Vac. 50/60Hz.
Hydraulic Oil Tank 70 liters (18.5 US gal).
Cutting Fluid tank 80 liters (21.1 US gal).
Power source Voltage and Frequence 200/220 VAC 10%, 50/60 Hz Apparent 10 kVA.

Cutting and Work Capacity

Round Capacity: 7.87″ to 18.90″ (200 – 480 mm)
Rectangle Capacity (W x H): 21.65″ x 18.90″ (550 x 480 mm)
Allowable Work Load: 4,409 lbs. (2,000 kg)
Table Height: 26.7″ (675 mm)
Saw Blade Specifications
Blade Dimensions (L x T x W): 16′ x 0.050″ x 1.5″ (4880 x 1.3 x 41 mm)
Blade Speeds: 56, 82, 115, 148, 180, 213, 246 ft/min (inverter-driven)
Tension Control: Hydraulic
Cutting Control: Hydraulic pressure and flow control valve
Motor and Power Data
Saw Blade Motor: 7.5 HP (5.5 kW)
Hydraulic Pump Motor: 2 HP (1.5 kW)
Cutting Fluid Pump Motor: 1/2 HP (0.4 kW)
Power Requirement: AC220V ±10%, 3-phase, 60 Hz (10 kVA)
Fluid Capacities and Dimensions
Cutting Fluid Tank: 21.1 gal (80 liters)
Hydraulic Tank: 18.5 gal (70 liters)
Machine Weight: 4,629 lbs. (2,100 kg)
Dimensions (W x L x H): 107.2″ x 72.8″ x 80.9″ (Head-Up position
