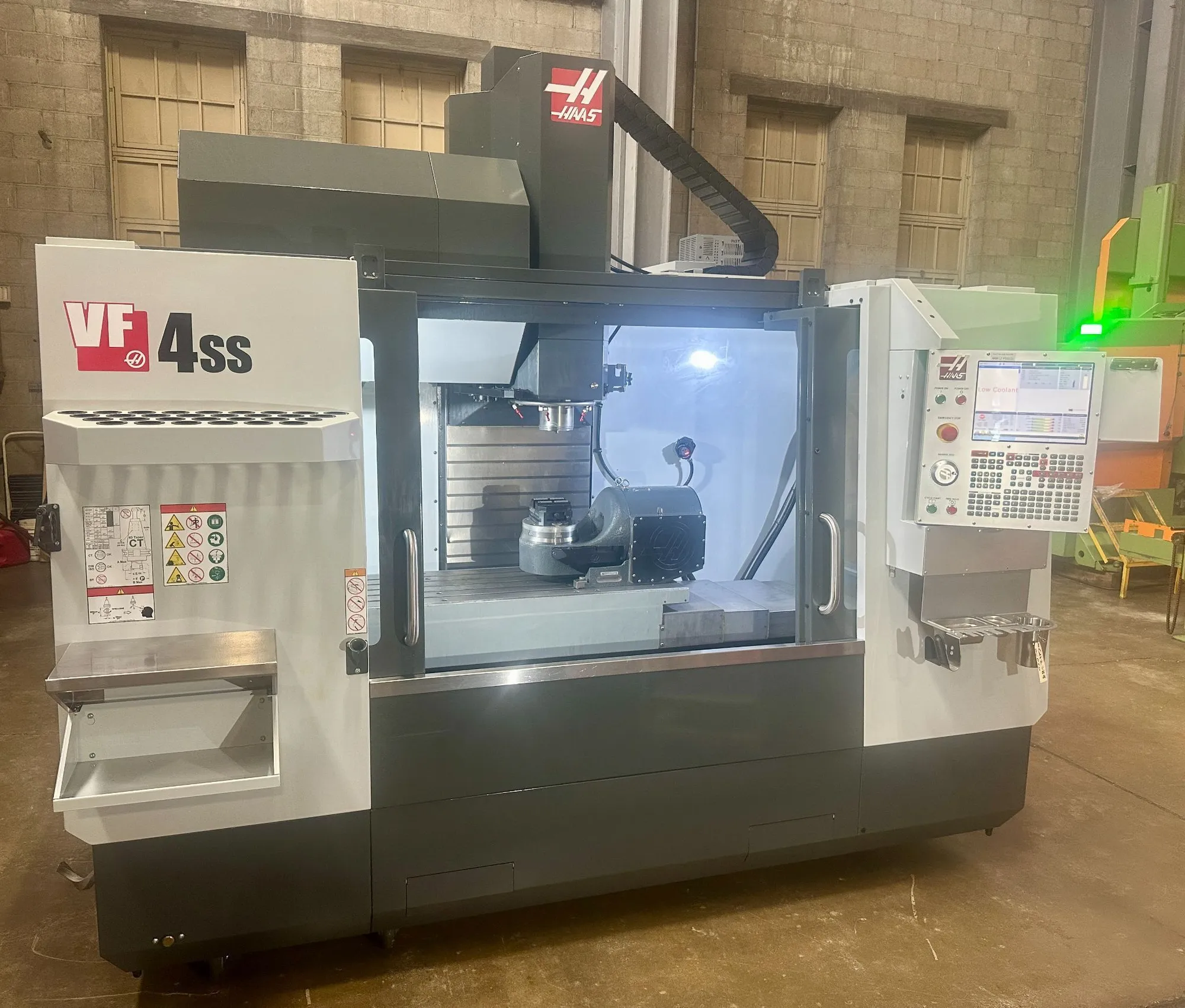

USED 2022 HAAS VF-4SS

Ohio, United States
Great American Equipment Company is a Worldwide Stocking Dealer of Used and Surplus Metal Working Machine Tools. Family Owned and Operated, We Have Been in The Used Machinery Business Since 1984.
Overview
Vertical Machining Centers

Haas VF-4SS 5-Axis CNC Vertical Machining Center, Haas CNC Control, Haas TRT-210 4th/5th Axis Rotary Table, Travels X-Axis 50"/ Y-Axis- 20"/ Z-Axis 25", 12,000 RPM Spindle, Cat 40, 30 Station Tool Changer, TSC, Probing, Coolant System, New 2022 -835 Cutting Hrs.

Specs
CNC Control
HAAS
HAAS
# Axis
5
5
Table-L
52"
1,320.8 mm
Table-W
19.5"
495.3 mm
Max Table Load Capacity
1,750 lb
793.8 kg
X-Axis (Longitudinal Travel)
50"
1,270 mm
Y-Axis (Cross Travel)
20"
508 mm
Z-Axis (Vertical Travel)
25"
635 mm
A-Axis (Table Tilt)
120°
120°
B-Axis (Table Rotation)
360°
360°
Spindle Power
30 hp
22.4 kW
Spindle Speed Range
12,000 RPM
12,000 RPM
Spindle Taper
Cat 40
Cat 40
Automatic Tool Changer Capacity (ATC)
30
30
Machine Hours
835
835
Electrics
220/3/60
220/3/60
Dimensions
122" x 92" x 100"
122" x 92" x 100"
Weight
13,320 LBS
13,320 LBS
Equipped With

Haas CNC Control, Haas TRT-210 4th/5th Axis Rotary Table w/ Jergens Vise, Travels X-Axis 50"/ Y-Axis- 20"/ Z-Axis 25", 12,000 RPM Spindle, Cat 40, 30 Station Tool Changer, Through Spindle Coolant, Probing, See Photo for Full Options Page- 1 GB Max Memory, Rigid Tapping, VPS Editing, High Speed Machining, Wireless Networking, Chip Auger- Coolant System, New 2022 -835 Cutting Hrs.
