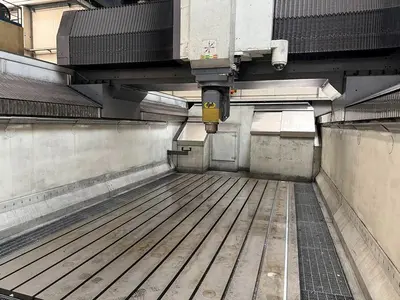

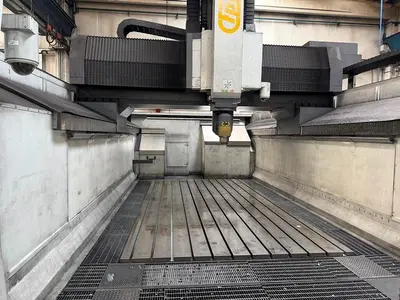

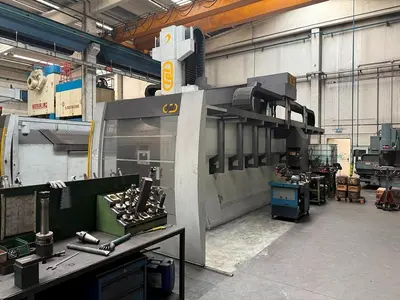

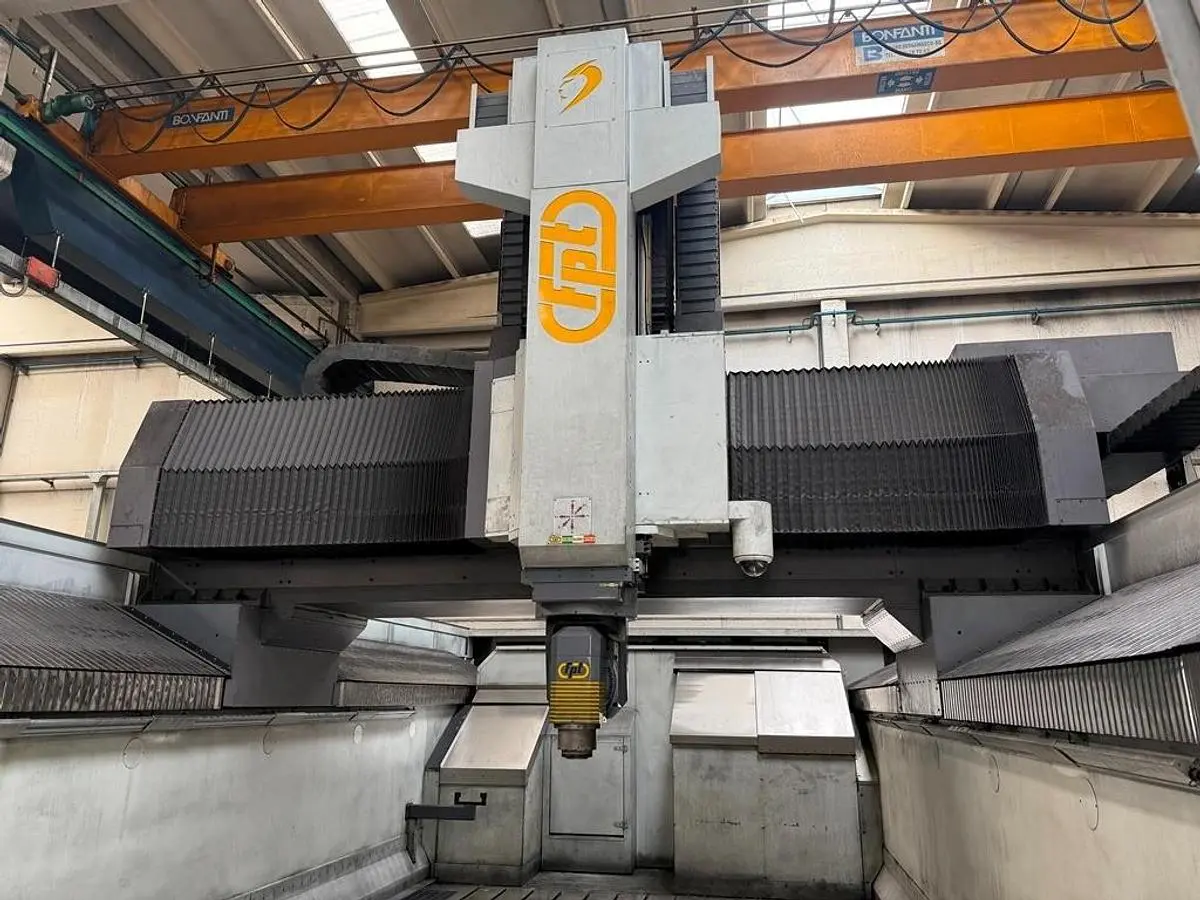

USED 2016 FPT DINOMAX3 L70

Heidenhain 640 iTNC CNC Control
n.1 Universal bi-rotary head with continuous positioning
Spindle Speed 5,000 rpm
Tool taper ISO 50 DIN 69871

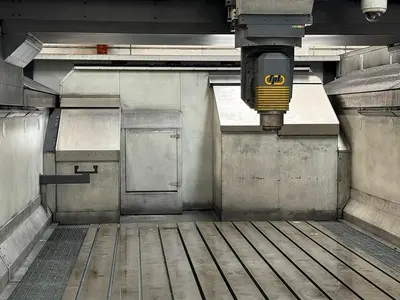

n.1 head (fork type) with 2 continuous axes
33 kW 5-axis head with electrospindle 1st axis rotation +/- 180° 2nd axis rotation +/- 92,5°
Spindle speed 18,000 rpm
Spindle taper HSK63A
40 Position Tool Changer
25 Position ISO 50 Taper
15 Position HSK 63A Taper
Rigid tapping for electrospinde (for each milling head) Rigid tapping for mechanical milling head
Automatic head magazine with 3 positions
Internal coolant 20 bar
Air pressure internal coolant - External coolant 4 bar
n. 1 chip conveyor front of the table
n. 2 chip conveyors lateral to the table
Spindle extension 400mm - ISO 50 with cooling - 5,000 rpm

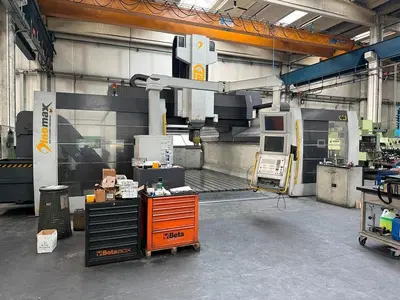

Remote control panel, Handwheel HR 550 FS Laser probe and sw with tool measuring system wear, lenght and radius Static RTCP system Working area videosurveillance system
