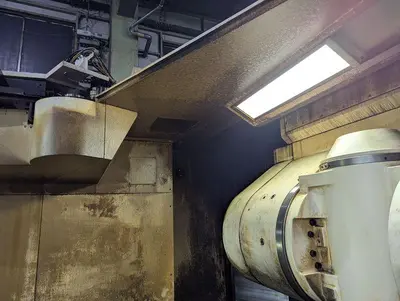

USED 2020 MAZAK INTEGREX E-1600V/10S

INTEGREX e-V:
Simultaneous 5-axis double-column machining center suitable for large workpieces

Milling spindle, 10,000 min⁻¹ (rpm) specification
MAZAK standard color (F: White / S: Black)
MAZATROL SmoothX specification
19" color LCD (touch panel)
Turning spindle (table), 300 min⁻¹ specification
Automatic power ON + warm-up operation / power OFF
ATC automatic recovery function
Turning spindle (table) 0.0001° indexing / C-axis control
Milling spindle AC 37kW (50HP) specification
Chiller unit
MAZA-CHECK
Ball screw core cooling (X, Y, Z axes)
Roller guide
Scale feedback (Z-axis)
Scale feedback (C-axis)
Absolute position detection function (linear axes)
B-axis 0.0001° / contouring machining capable (EIA required)
Y-axis stroke 1,600 mm
Tool-number display magazine operation panel (tool ID coding not supported)
In-machine chip conveyor (sectional type, wear-resistant specification)
1.5 MPa through-spindle coolant / flood coolant simultaneous discharge capable
Fully enclosed coolant cover
Operator door interlock (with locking mechanism)
Hydraulic pressure assurance interlock
Full-length external step + fixed internal step
Mazak Monitoring System B mounting preparation, RMP600
Manual pulse generator (wired)
Work light
Standard tooling package (complete set)
EIA/ISO package
3D coordinate conversion function
Direct drawing-dimension input
Smooth restart function
USB I/F (1 port)
LAN port
SD I/F (1 port) + USB I/F (1 port)
Safety shield
ATC, 120 tools
Scale feedback (B-axis)
Scale feedback (X, Y axes)
Chip conveyor (side discharge, CONSEP)
Large-capacity chip bucket (rotary type)
Coolant temperature control (water-soluble coolant specification)
Coolant gun
Milling spindle through-spindle air blow (usable during rotation, with lubrication function)
Niagara coolant (mandatory option)
Earth-leakage breaker (cannot be installed together with power transformer)
Wireless touch sensor (RMP600)
3-tier signal tower (square)
Positioning block for angle tool holder
Flash tool mounting preparation
Smooth synchronized tapping (milling spindle)
F) EIA simultaneous 5-axis machining tool-diameter compensation function
Shaping (shaving) machining
EIA Dynamic Compensation 2 (including Compensation 1)
B) G00 constant-tilt control
Re-threading (thread repair) function
B) Cylindrical interpolation & polar coordinate interpolation (EIA)
Workpiece setup-error compensation function
Tool-axis-direction tool-length compensation function
Smooth X 5-axis package
Ø1,850 jaw-mounted chuck / turning spindle limited to 205 min⁻¹
Tool eye for large-diameter pallet (automatic / rotary type)
Turning spindle high-torque specification, 300 min⁻¹, 6.8 kN·m
X-axis stroke 2,315 mm / max. workpiece Ø2,050 mm
External step, front-stairs setup-side specification
Machine height compatible up to 4,500 mm (STD −35 mm)
Magazine-side 50 mm step/height-difference compatible
