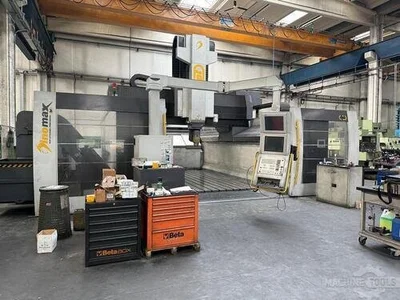

USED 2016 FPT DINOMAX2 L60
Overview
Heidenhain 640 iTNC CNC Controln.1 Universal bi-rotary head with continuous positioning Spindle speed rpm 5.000 Tool taper ISO 50 DIN 69871n.1 head (fork type) with 2 continuous axes 33 kW 5-axis head with electrospindle 1st axis rotation +/- 180° 2nd axis rotation +/- 92,5° Spindle speed rpm 18.000 Spindle taper HSK63ATool magazine 40 positions: 40 n. 25 positions ISO 50 taper n. 15 positions HSK63A taperRigid tapping for electrospinde (for each milling head)Rigid tapping for mechanical milling headAutomatic head magazine with 3 positionsInternal coolant 20 barAir pressure internal coolantExternal coolant 4 barn. 1 chip conveyor front of the tablen. 2 chip conveyors lateral to the tableSpindle extension mm 400 ISO 50 with cooling, rpm 5.000Remote control panel, Handwheel HR 550 FSLaser probe and sw with tool measuring system wear, lenght and radiusStatic RTCP systemWorking area videosurveillance system
Specs
Manufacturer: FPT
Model: DINOMAX 2 L60
Year: 2016
Condition: Used
Stock Number: 5654398
Spindle speeds: 18,000 / 5,000 rpm
X axis travel: 7,000 mm
Y axis travel: 3,200 mm
Z axis travel: 1,500 mm
Table dimensions: 3,000 x 6,000 mm
Table capacity: 15 t/m²
Max axis feed speed: 50,000 mm/min
Max horizontal clearance: 4,200 mm
Max verical clearance under crossbeam: 2,330 mm
Table height from ground: 350 mm
Overall dimensions: 10,500 x 7,475 x 5,380 mm
Machine weight: 80,000 kg
