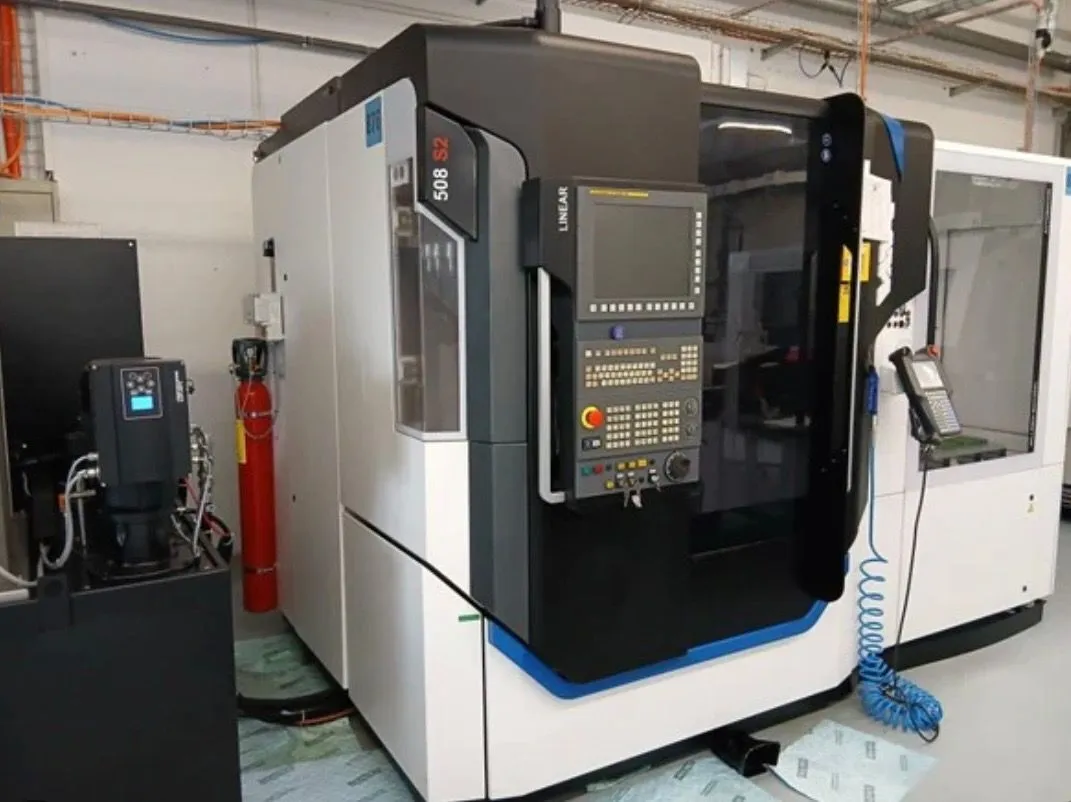

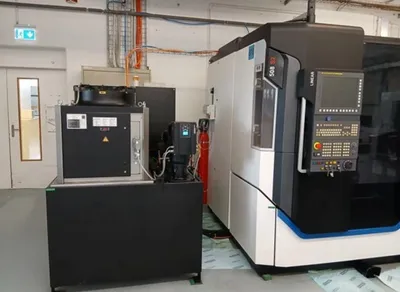

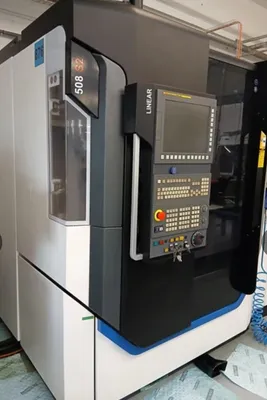

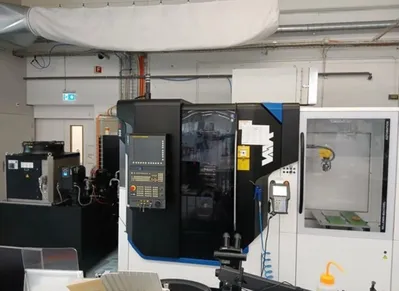

USED 2019 WILLEMIN 508S

One Used Willemin Macodel Type 508S2 Vertical Machining Center with Fanuc 31i-B5 Control, New 2019.

Number of axis total 6
Rotary table: diameter 180 mm
Table load max. 15 kg
Longitudinal travel (X-axis) 400 mm
Transversal travel (y-axis) 200 mm
Vertical travel (z axis) 385 mm
W axis
B axis swiveling range -100 / +30 °
B axis °
Resolution 0.0001
C axis
Resolution 0.0001 °
Table speeds:
Table speed 200 t/min
stepless
up to 120 t/min
Holding torque of the table 400 Nm
Tool changer:
Number of tools 48
Tool diameter max. 50 mm
Diameter with free adjacent pockets 80 mm
Tool length 130 mm
Max. tool-weight 1 kg
Time of tool changing 0.8 s
Average chip-to-chip time 3 s
Spindle nose: HSK E40
Spindle speeds:
stepless
from 50 t/min
up to 42000 t/min
Rapid traverse: 60 m/min
Acceleration 10 m/s
Air connect 6 bar
Voltage 50 Hz 3x 400 Volt
Spindle power 10 / 15 kW
Torque max. 8 / 12 Nm
Total power required 35 kVA
Machine's weight about 5000 kg
Overall dimensions machine:
Length 1870 mm
Width 2210 mm
Height 22220 mm
Various accessories:
Loading robot
Coolant system
Tool setter BLUM 3D type Z-MT
Touch Probe Renishaw OMP 400
Tool break control
Lamp
Oil mist extractor Donaldson DMC-MINI-MMA
Filter for coolant system Turbo Separator type 10
Spindle cooling
Stabilization coolant temperature
Axis
Automatic central lubrication
Fire extinguishing system
Switch cabinet Air conditioner
Foot pedal
Status light
Specifications Subject to Buyer Confirmation
