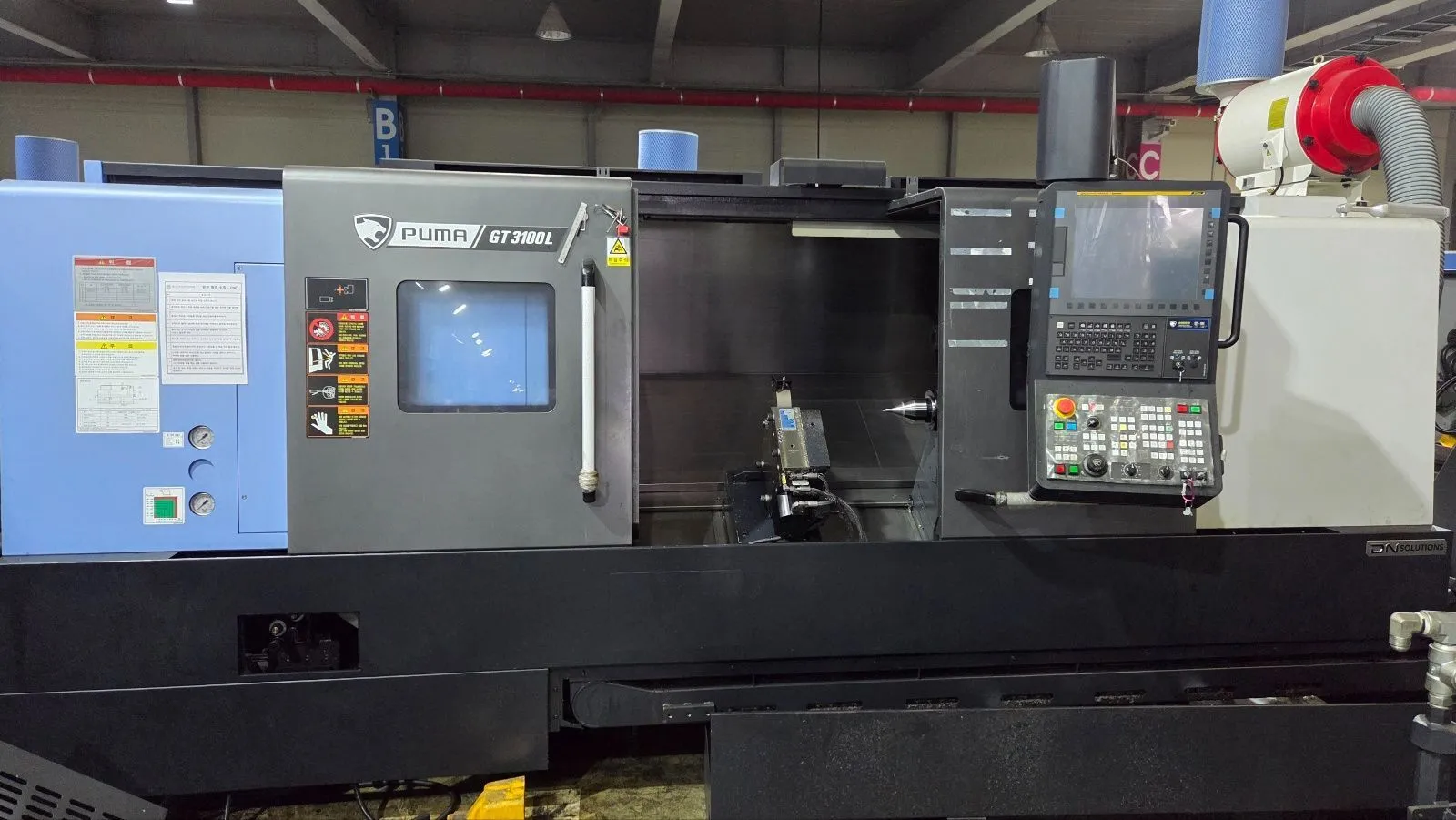

USED 2023 DN SOLUTIONS GT 3100L

Swing Over Bed: 28.3"

Turning Diameter, Shaft Diameter: 18.9"
Machining Length: 50.2"
Distance Between Centers: 0
Distance Between Spindles: 0
Chuck Size 1, 2: 12"
Spindle Nose 1, 2: A2-11
Spindle Bore Diameter 1, 2: 4.4"
Spindle Bar Capacity 1, 2: 4"
Spindle Speeds 1, 2: 2800 RPM
Gear Ranges: 0
Spindle Horsepower 1, 2: 45 HP
Spindle Torque: 0
X - Axis Travel 1, 2: 10.2"
Z - Axis Travel 1, 2: 53.1"
C - Axis Travel 1, 2: 0
W - Axis Travel Sub Spindle: 0
Rapid Traverse Rates X1, X2: 945 IPM
Rapid Traverse Rates Z1, Z2: 1181 IPM
Rapid Traverse Rate W Axis: 0
Rapid Traverse C Axis: 0
Turret Configuration 1, 2: 12
Turret Rotary Tool Spindle Speed 1, 2: 0
Turret Rotary Tool Horse Power 1, 2: 0
Tailstock Quill Diameter: 3.9"
Tailstock Taper: MT #5 LIVE CENTER
Tailstock Quill Travel: 3.9"
Programmable Tailstock: YES
Tailstock Travel: 45.3"
Machine Weight: 15212 LBS.
