USED 1993 FADAL VMC-3016

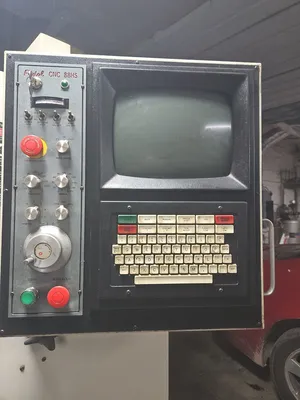

Designed for automated 3-axis milling, drilling, and tapping of metal and plastic components in low- to mid-volume production and prototyping environments. Runs on 230 VAC, 3-phase power (40A full load) and uses a Glentek vector drive system for servo motor control, paired with a Fadal CNC control and keyboard interface for programming and operation.

Key Features & Modifications:
• Travels: 30" X-axis x 16" Y-axis x 20" Z-axis, rigid box ways
• Spindle Taper: CAT 40
• Tool Changer: 21-position umbrella-style Automatic Tool Changer (ATC)

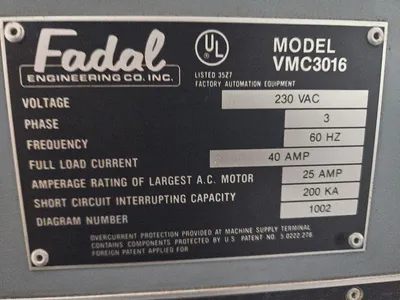

• Electrical: 230 VAC, 3-phase, 60 Hz, 40A full load current
• Servo Drive: Glentek vector drive (Model SMB9675-1A-1-7700)

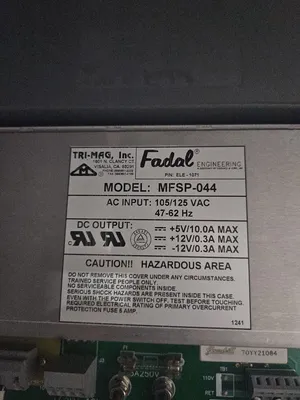

• Control Power Supply: Tri-Mag/Fadal MFSP-044, 105/125 VAC input

Condition Notes:
Machine is structurally complete and was fully operational when installed. It was a prototyping machine, and we bought it in 2019 to start up a new machine shop, but then Covid hit and we’ve turned it on, but never actually run parts on it. It is being sold exactly as pictured. Buyers are highly welcome to coordinate inspection. Perfect starter machine or high-capacity addition for a garage shop or growing commercial outfit looking for cheap, reliable American iron.

Sold AS-IS, Where-IS. Local pickup or freight carrier pick up must be scheduled by the buyer.
