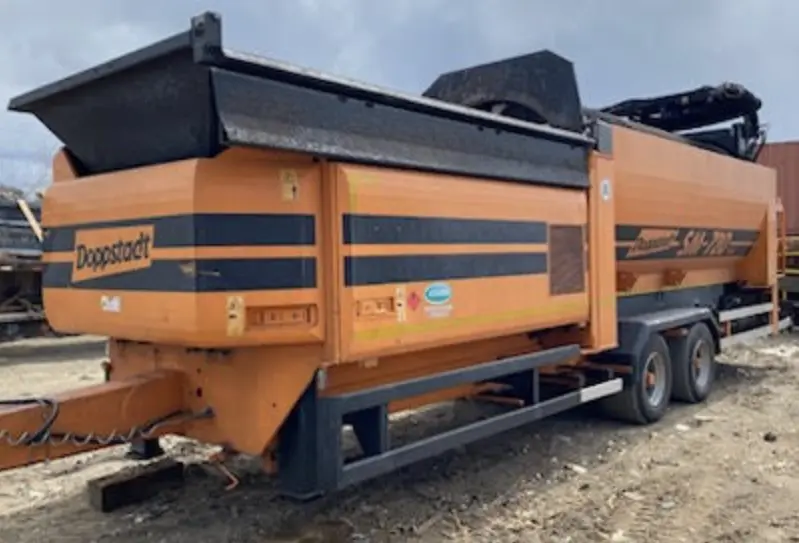

USED DOPPSTADT SM 720 PLUS
Specs
1” Screening Drum
Screening
Screening area equivalent to 7’ diameter x 20’ length
Complete with punch plate drum, replaceable in 15 minutes
Continuous load-sensing material feeding from the hopper belt to the
screening drum
Hopper approximately 6.5 cubic yards
Hydraulically tensioned cleaning brushes
Engine / Mechanical / Hydraulics
Deutz Diesel engine TCD 3.6 L4, 114 hp
Certified EPA Tier 4 Final
Fuel Capacity: 80 Gallons
2-stage fuel filter system
Engine swings out at 90 degrees for ease of access
Central lubrication banks
Hydraulically reversible fan wheel at water and oil cooler
Electrical / Control Panel
Doppstadt Telematic Monitoring System for remote panel access and
diagnostic by factory-trained technician
24V Control Panel system with the following:
Emergency stop
Fold/unfold rear conveyor
Fold/unfold/buckle side conveyor
Continuously adjustable speeds: Drum from 0-20 rpm, hopper belt from 0-.18y/s
Emergency stop switches at the side and rear conveyors
Conveyors
Rear Conveyor: Length: 18’, Width 40” - Hydraulically foldable
Side Conveyor: Length: 18’, Width: 40”- Hydraulically foldable
Chassis / Transportation
Central axle trailer chassis
ABS braking system and road-legal light system
Tires 435/50R 19.5 (low profile)
2-inch EC trailer coupling ring including slip on coupling
Hydraulically adjustable jack-legs
