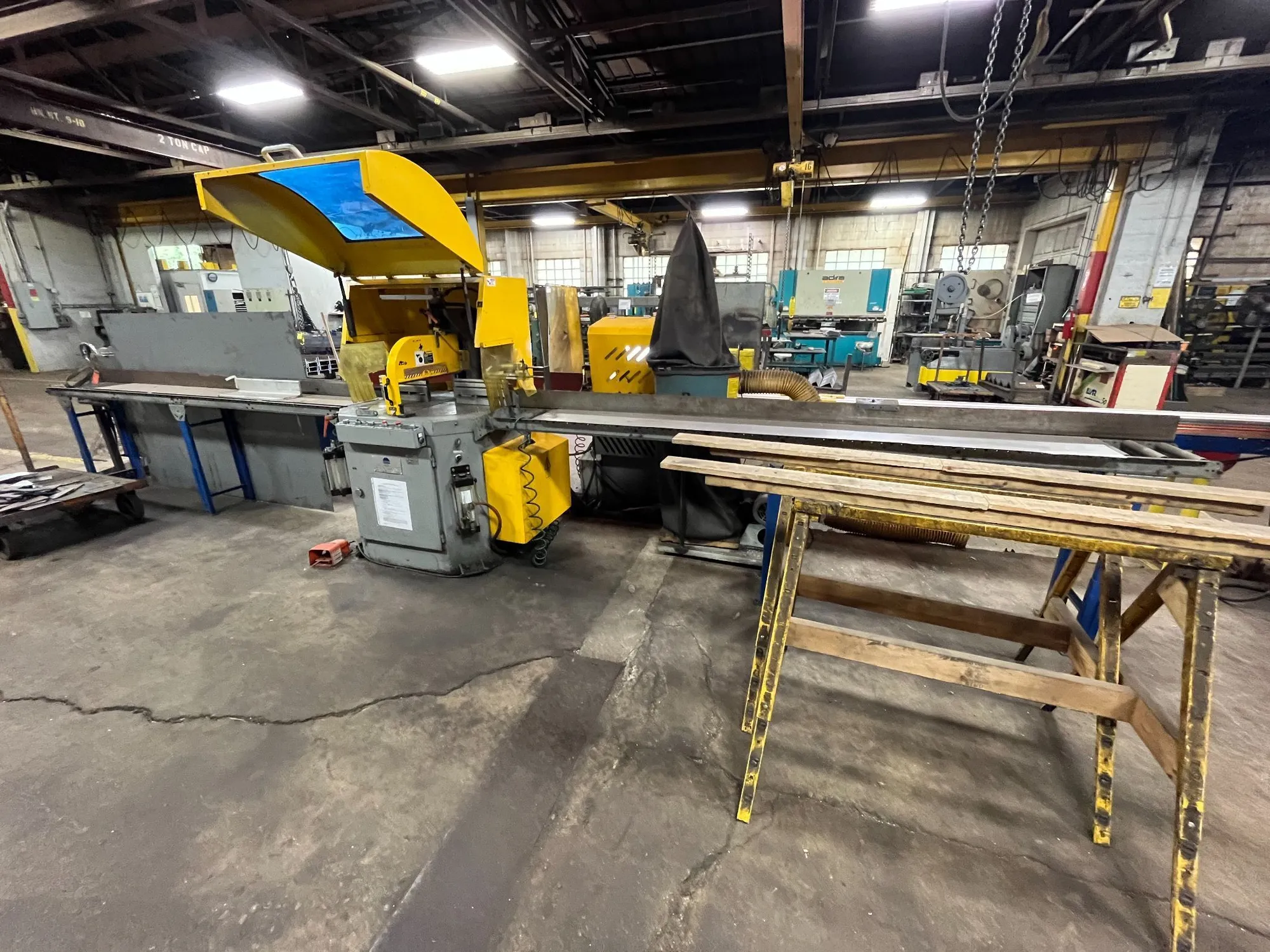

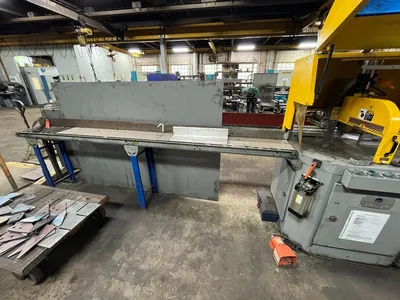

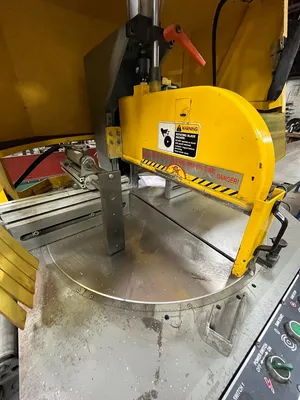

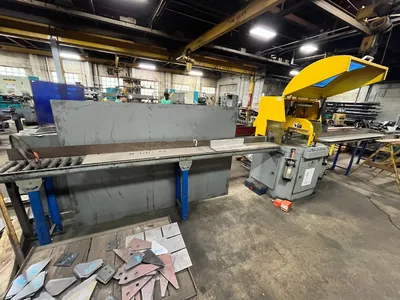

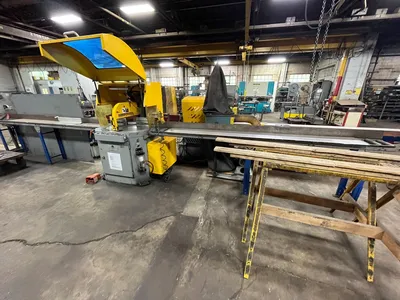

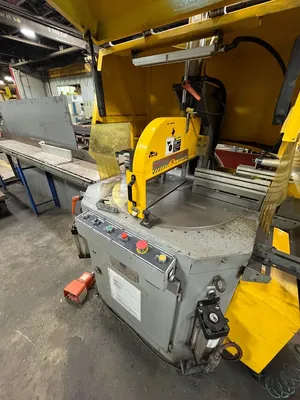

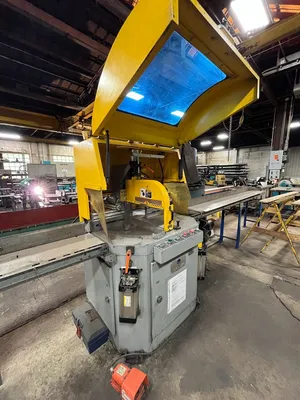

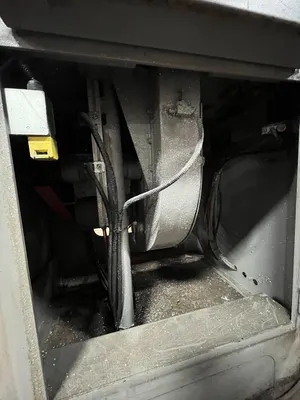

USED 2002 PAT MOONEY PMI-20

Technical Data:

Automatic Cutting Angle 45 degrees to the left and right
Saw Blade Size 20” x 1” bore
Spindle Speed 3000 RPM
Saw Motor 7.5HP
Servomotor (miter and feed system) 400w (2)
Automatic Feed Length 8ft to 21.5ft
Program Storage 100
Maximum Pushing Weight 110LBS
Pusher Positioning Speed 65 FPM to 165 FPM
Work Table Height 34-1/2”
Saw Dimensions 48” x 52” x 72”
Saw Weight 1400LBS

Cutting Capacity
Round-90 Degree 5.905”
Round-45 Degree 5.511”
Square-90 Degree 5.905”
Square-45 Degree 5.511”
Rec a x b-90 Degree 5.511 x 7.874”
Rec a x b-90 Degree 5.905 x 4.724”
Rec a x b-90 Degree .393 x 13.188”
Rec a x b-45 Degree 5.905 x 3.543”
Rec a x b-45 Degree 5.511 x 5.118”
Rec a x b-45 Degree .393 x 9.448”
