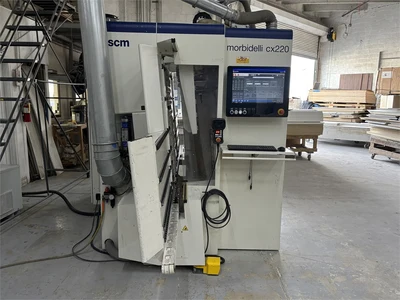

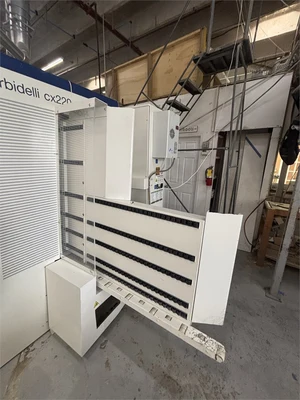

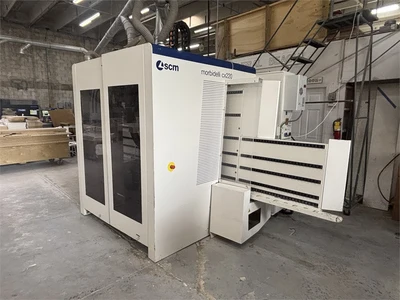

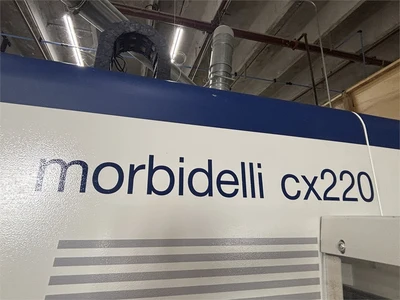

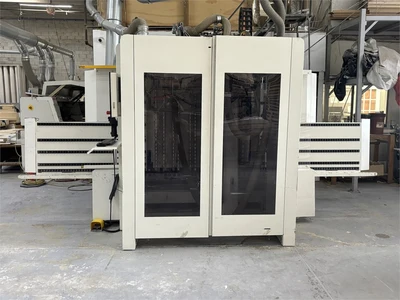

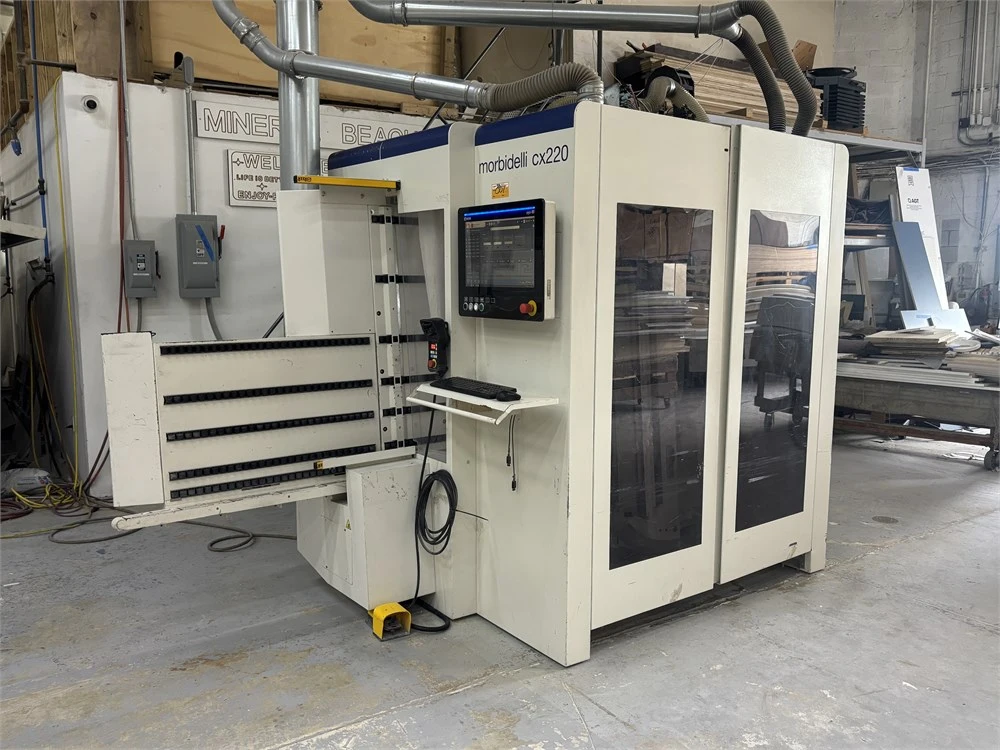

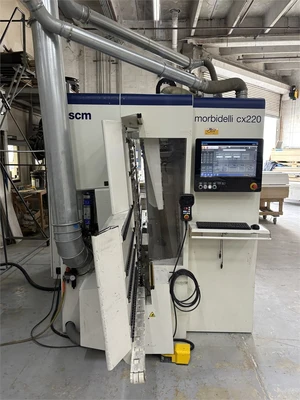

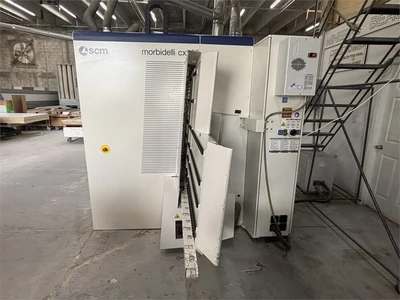

USED 2020 MORBIDELLI CX220

Lot Closes:: 8/11/2026 9:00:00 AM PT
See video of machine in operation
3,050 mm/120" maximum panel length
200 mm/7.8" minimum panel length
1,300 mm/51" maximum panel width
50 mm/1.9" minimum panel width
95 mm/3.7" maximum panel thickness
8 mm/0.3" minimum panel thickness
154 pound maximum panel weight

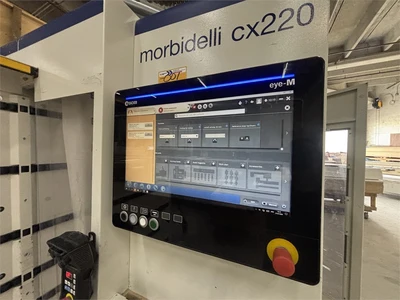

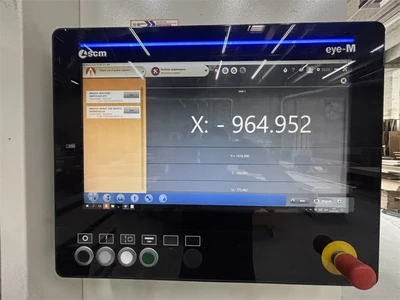

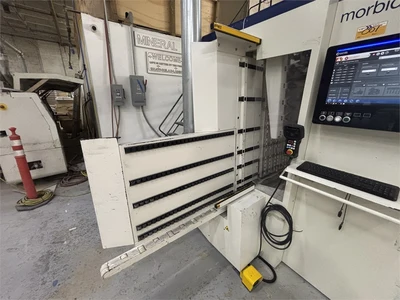

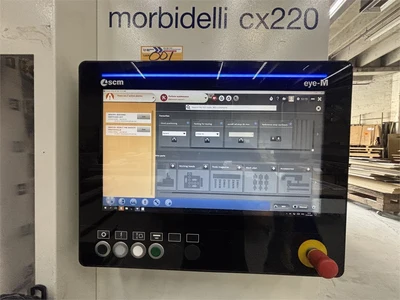

PC control
     21.5" flat screen

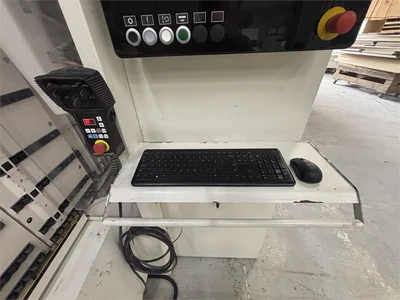

     Keyboard and mouse
     Windows operating system
     SCM's "Maestro CNC" software

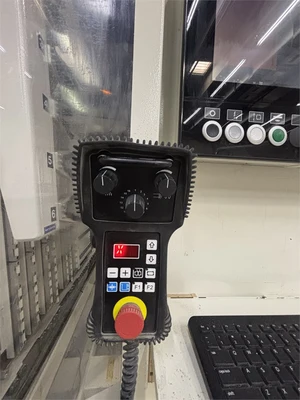

Remote control pendant

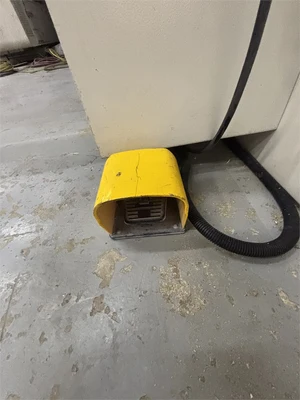

Foot pedal control

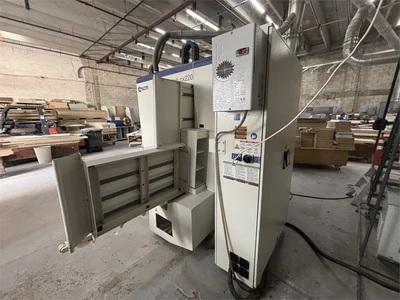

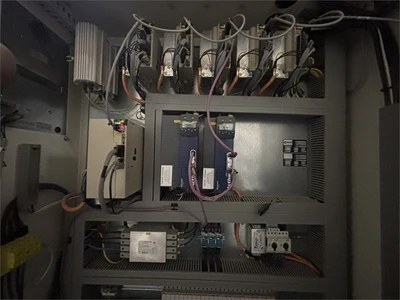

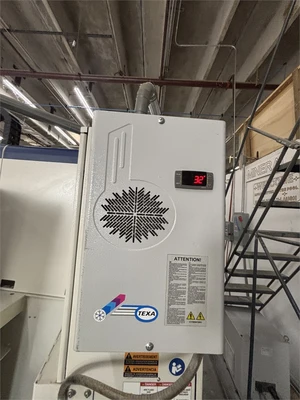

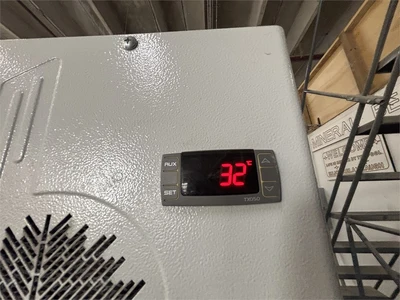

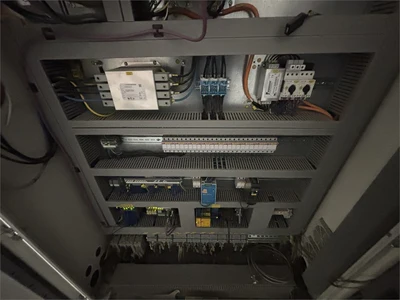

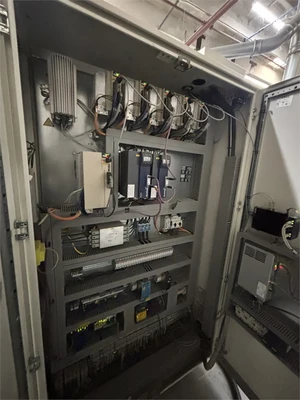

Air-conditioned control cabinet

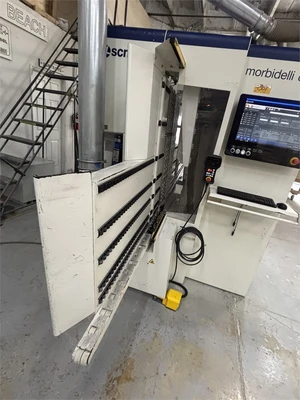

Infeed and outfeed rollers

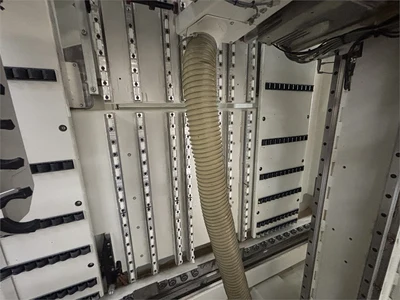

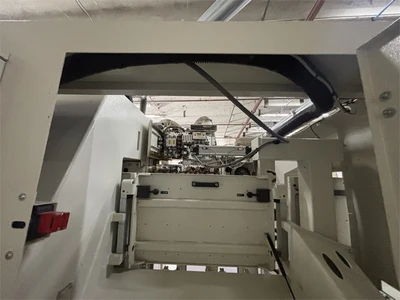

Bottom-mounted roller table inside machine
Two (2) automated clamps for panel positioning in x axis (left to right)

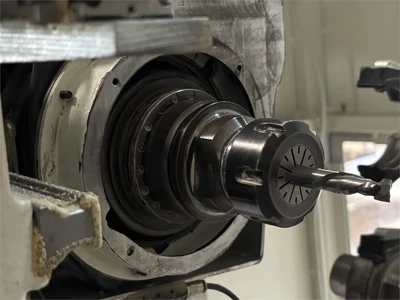

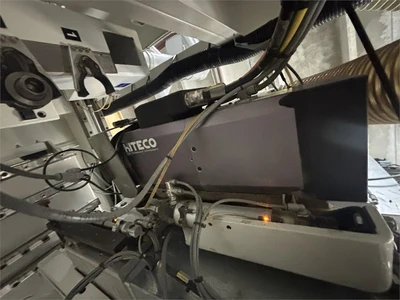

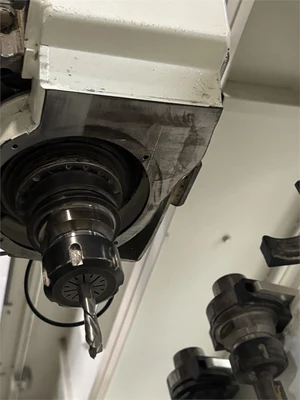

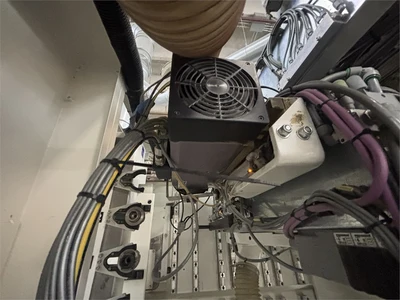

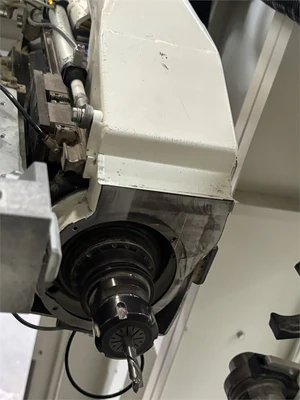

Router
     Air-cooled
     HSK-63F (quick change)
     10 HP
     24,000 maximum RPM
     CW/CCW rotation

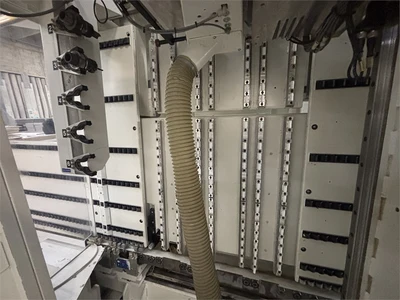

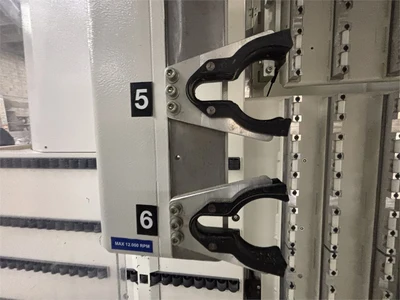

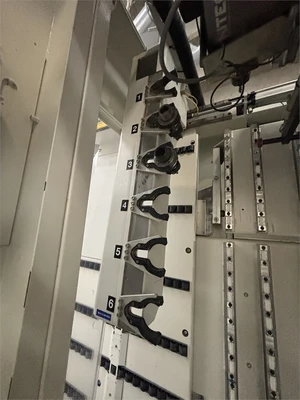

Tool changer
     Six (6) position lateral

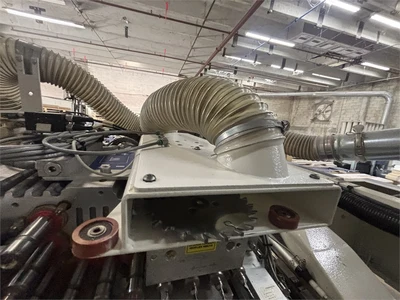

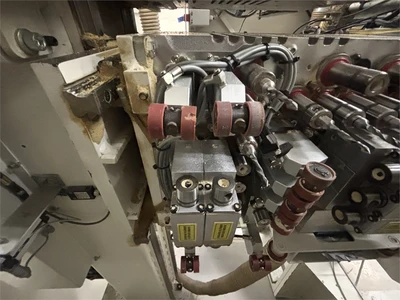

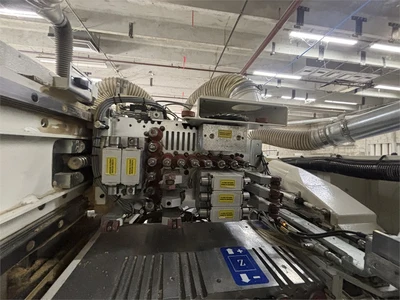

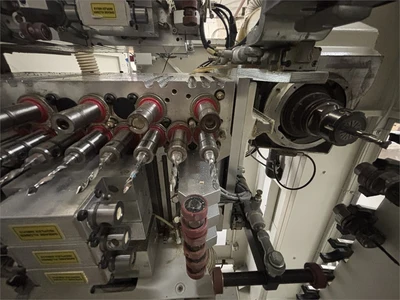

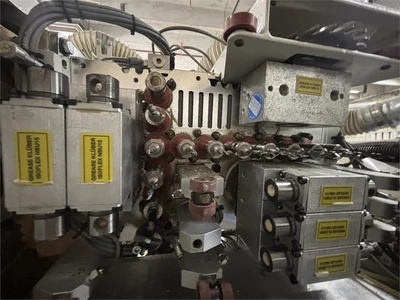

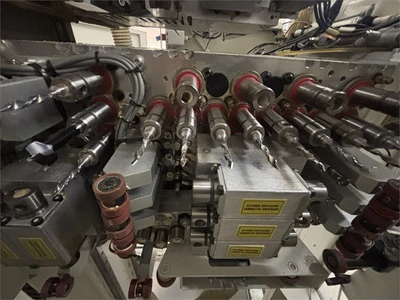

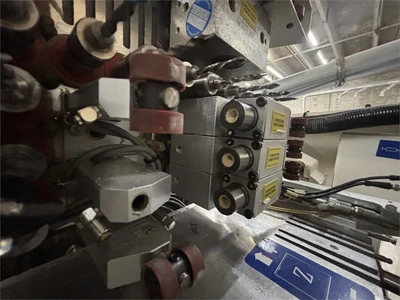

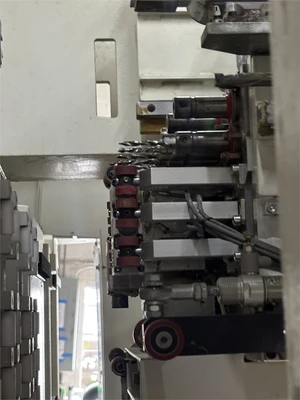

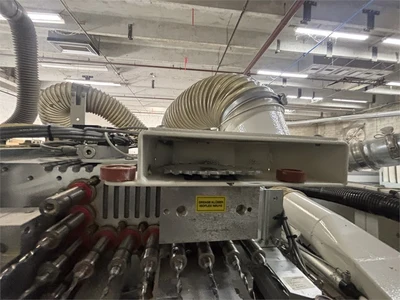

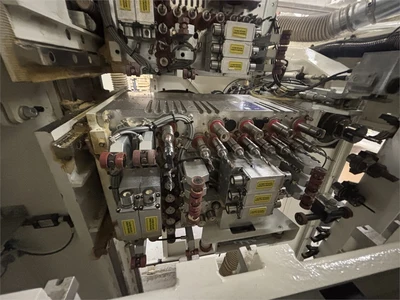

Drill unit 1
     (13) vertical spindles
     Six (6) x axis horizontal spindles
     Four (4) y axis horizontal spindles

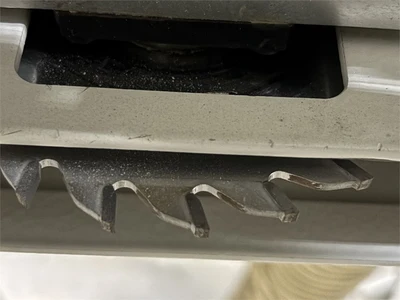

     X axis grooving saw
     3 HP motor
Drill unit 2
     (13) vertical spindles
     Six (6) x axis horizontal spindles
     Four (4) y axis horizontal spindles
     X axis grooving saw
     3 HP motor

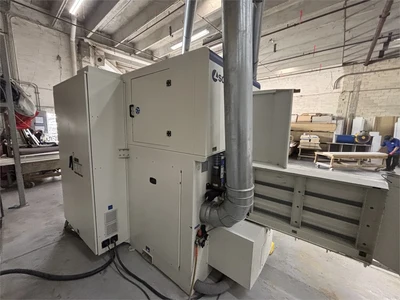

Sound enclosure

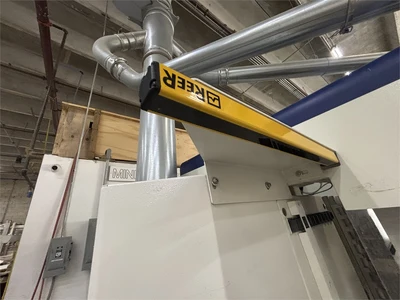

Photo light safety barrier

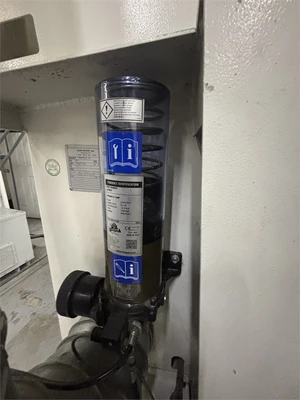

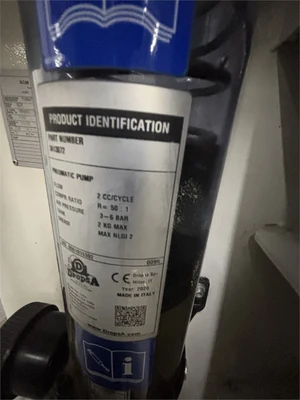

Centralized lubrication system

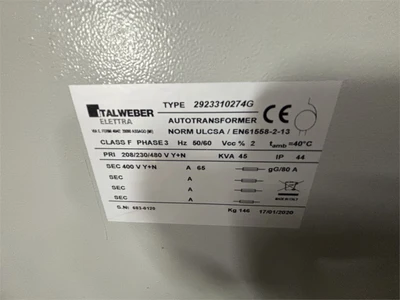

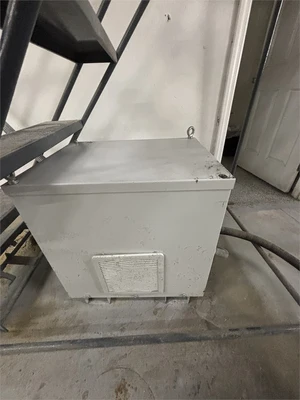

External electrical transformer

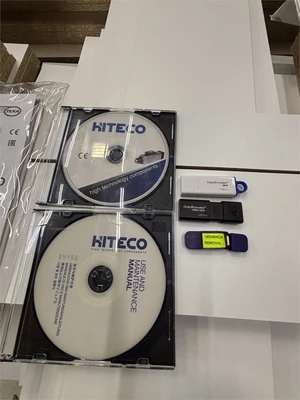

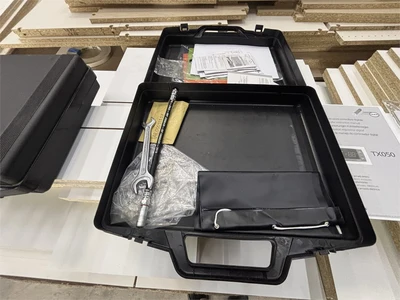

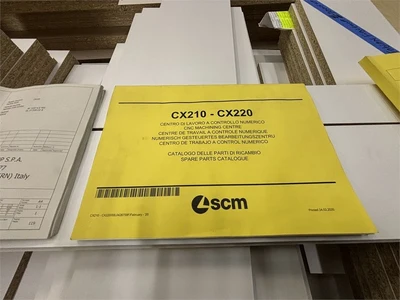

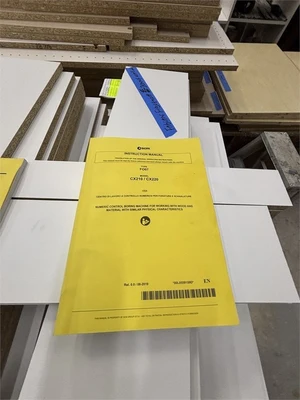

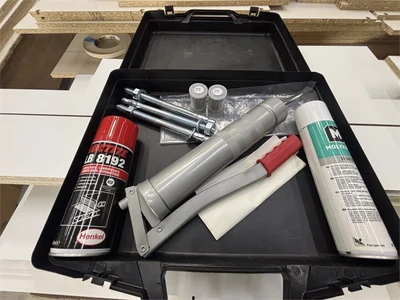

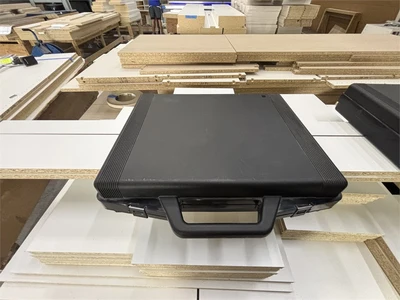

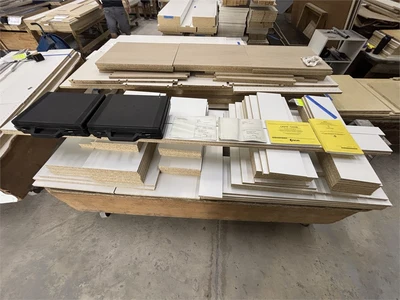

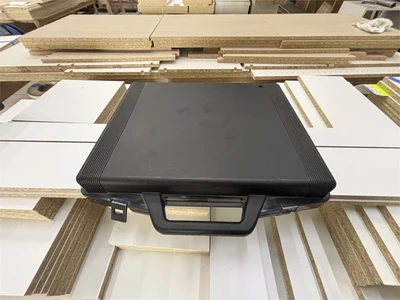

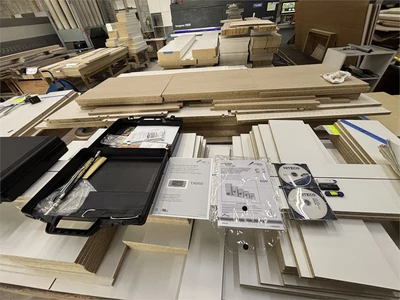

Manuals and accessories as photographed
Dust pipe/flex hose, tooling and tool holders NOT included
