USED SHIGIYA GP-45-100

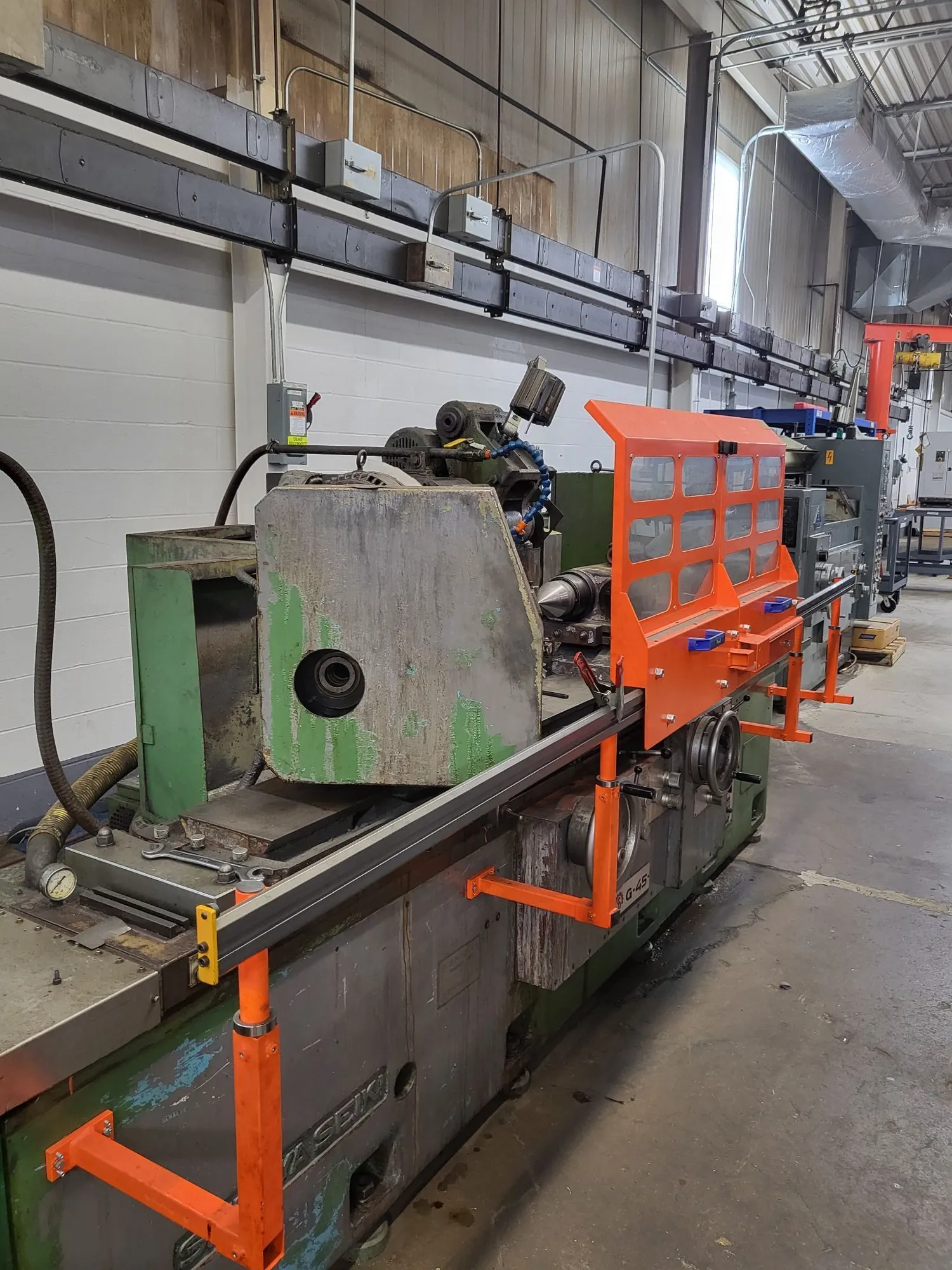

SHIGIYA GP-45-100 OD GRINDING MACHINE
S/N 50166

SPECIFICATIONS

CAPACITY
Swing Over Table...........................39"
Max Grinding OD............................16.9"
Max Grinding Weight........................1,433 LBS

WHEEL SPINDLE STOCK
Wheel Speed................................835-1040 RPM
Wheel Spindle Stock Swivel Angle...........Non Swivel
Handle Feed Amount(Handle Revolution)......0.04”
Handle Feed Amount(Per Graduation).........0.0001”
Fast Feed Travel...........................2.3”

WHEEL DIMENSIONS
OD x Width x ID............................24”x 3”x 10”

TABLE
Swivel Angle...............................2.5”
Handle Feed Amount(Per Revolution).........1-59
Auto Feed Speed Range......................2~118

HEADSTOCK
Taper Of Center............................MT No. 5
Work Spindle Speed.........................13~200 RPM
Headstock Swivel Angle.....................120 Degrees

TAILSTOCK
Taper Of Center............................MT No. 5
Tailstock Moving Distance..................1.7”

MOTORS
Wheel Spindle..............................11 Kw
Work Spindle...............................0.75/1.5 Kw
Wheel Spindle Lubricating Pump.............0.2 Kw
Grinding Fluid Pump........................0.18 Kw
Hydraulic Pump.............................1.5 Kw

Center Height From Floor...................43.3”

Weight.....................................9,920 LBS.

Specifications are deemed accurate, however, subject to verification or prior sale.
