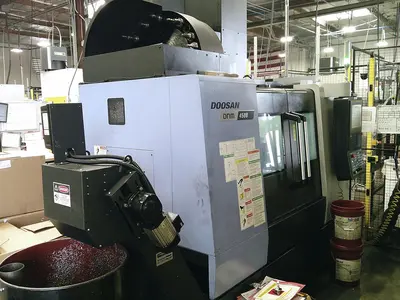

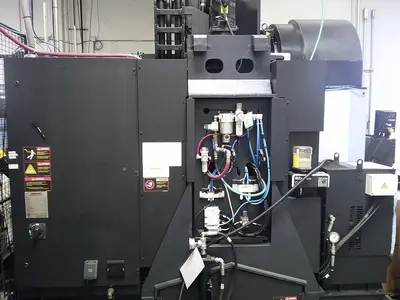

USED 2021 DOOSAN DNM 4500
Overview
4th Axis Rotary| Fanuc Oi Control| Cut Aluminum only
The Doosan DNM 4500 Vertical Machining Center (2021) with Fanuc Oi Plus CNC Control delivers exceptional precision, speed, and reliability for demanding production environments. Designed for high-performance milling, drilling, tapping, and contouring of steel, aluminum, brass, and engineered plastics, it is ideal for automotive, aerospace, medical, tool & die, energy, and precision job shop applications requiring accurate, repeatable machining of complex components.
Specs
Machine Travels (X/Y/Z): 31.5" × 17.7" × 20.1
Table Size: 39.4" × 17.7"
Table Capacity: 1,320 lbs
Spindle Taper: CAT-40
Spindle Speed: 12,000 RPM Direct Drive
Spindle Motor: 15 HP
Rapids: 1,417 IPM (36 m/min)
Cutting Feed: 787 IPM
Tool Changer: 30 Position Side Mount ATC
Tool-to-Tool: approx. 1.2 sec
Chip-to-Chip: approx. 3 sec
Weight: 11,000 lbs (5,000 kg)
Power: 220V, 3 Phase
Equipped With

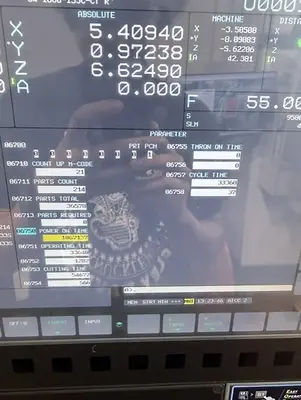

Fanuc Oi Plus Control

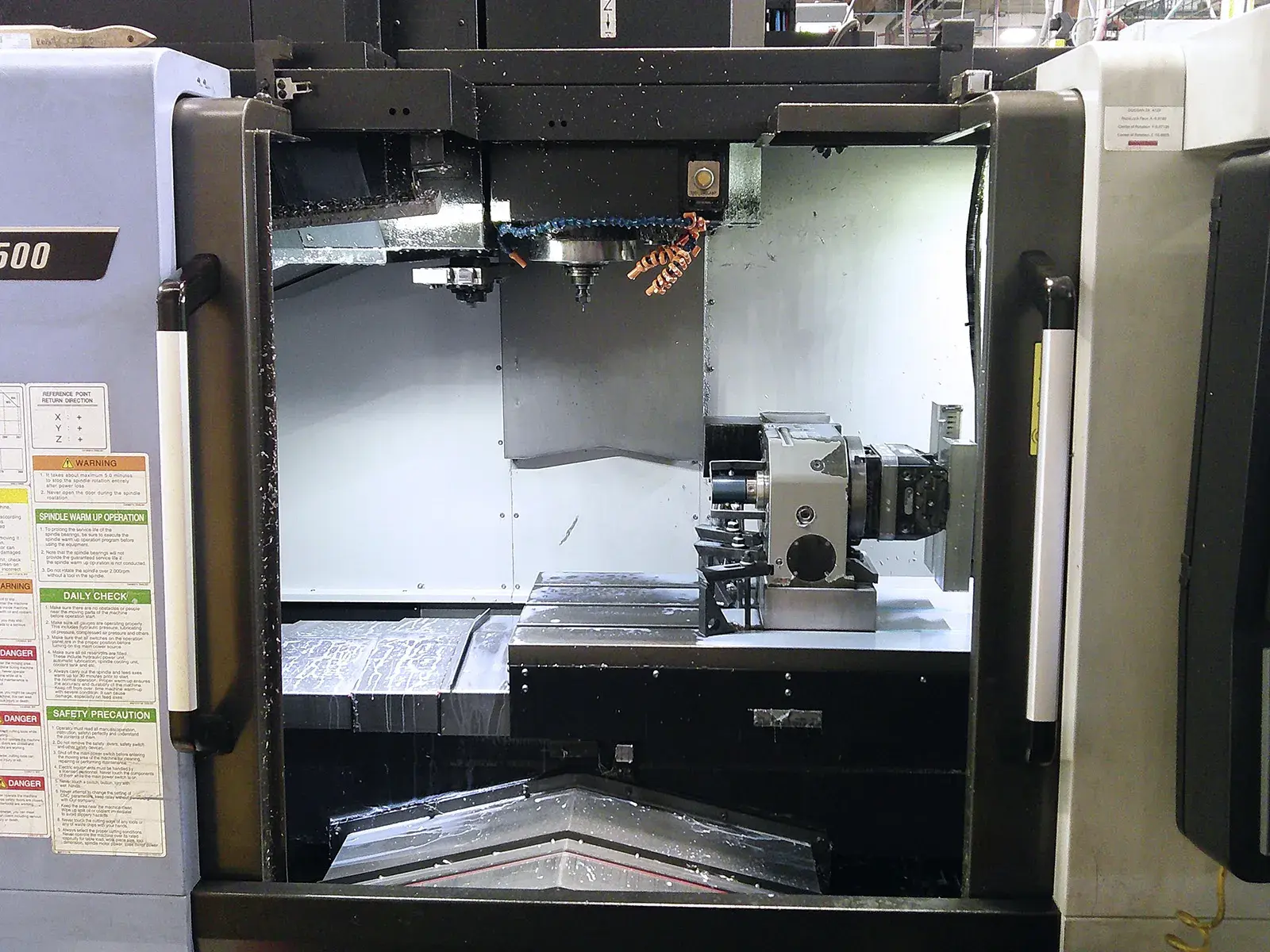

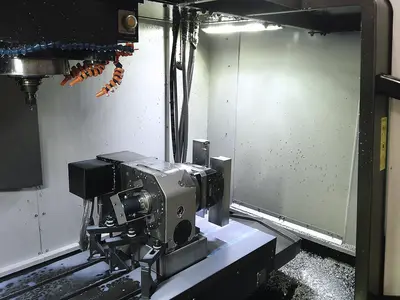

GXA-210 4th Axis Rotary included

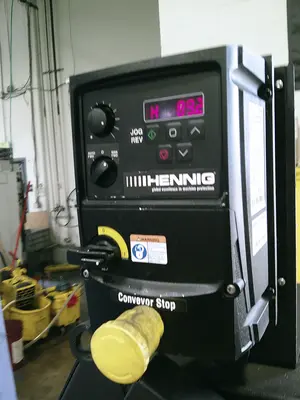

Hennig Chip Conveyor
Renishaw Probe included

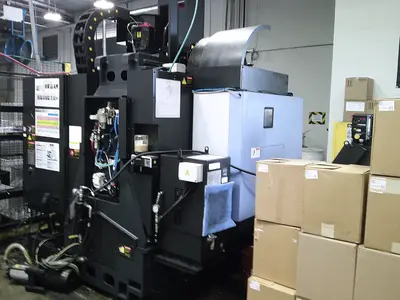

Spindle Oil Chiller
Rigid Tapping
Low Cutting Hours
