USED FITZPATRICK 16LX20D

Used Equipment Facts About This Machine
MANUFACTURER INFORMATION
• Primary manufacturer: Fitzpatrick
• Primary equipment: Chilsonator roll compactor
• Primary model: 16Lx20D
• Mill manufacturer: Fitzpatrick
• Mill model: HAS030
• Screener manufacturer: GKM Siebtechnik
• Screener model: KTS 2600/5DS2V
• Equipment type: Integrated dry granulation system
• Category: Roll Compactors
• Subcategory: Roll Compactors
• Stock number: 54581001
• Condition: Used
PRODUCT DESCRIPTION

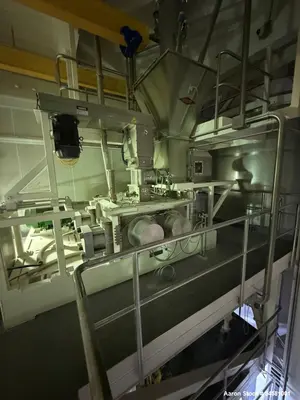

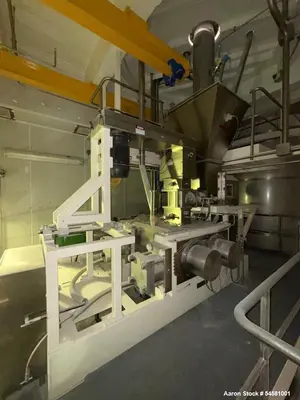

Used Fitzpatrick Chilsonator complete dry granulation system consisting of a model 16Lx20D roll compactor, Fitzpatrick HAS030 Comminutor mill, and GKM Siebtechnik model KTS 2600/5DS2V vibratory tumbler screener. The Chilsonator uses dual 16-inch by 20-inch radial-cored rolls with controlled hydraulic pressure and feed augers to compact powders into ribbons for improved material flow and reduced dust. The compacted ribbons are processed through the HAS030 Comminutor, which uses interchangeable screens and a hammer-and-knife design for controlled particle-size reduction. Final product classification is performed by the GKM screener, featuring an approximately 102-1/2-inch or 2600 mm diameter and five-deck configuration for high-throughput separation. The system has stainless steel wetted parts and is suitable for evaluating pharmaceutical, chemical, food, and specialty-material dry granulation applications. Aaron will facilitate loading as included in the final price, and freight specialists can assist with transportation and customs documentation.
SPECIFICATIONS
• Primary manufacturer: Fitzpatrick
• Chilsonator model: 16Lx20D
• Equipment type: Roll compaction and dry granulation system
• Stock number: 54581001
• Roll quantity: Two
• Roll dimensions: 16 inches x 20 inches
• Roll design: Radial cored
• Roll-pressure control: Hydraulic
• Feed system: Feed augers
• Product-contact construction: Stainless steel wetted parts
• Mill manufacturer: Fitzpatrick
• Mill model: HAS030
• Mill type: Comminutor
• Mill cutting system: Hammer and knife design
• Mill screens: Interchangeable
• Screener manufacturer: GKM Siebtechnik
• Screener model: KTS 2600/5DS2V
• Screener type: Vibratory tumbler screener
• Screener diameter: Approximately 102-1/2 inches / 2600 mm
• Screener decks: Five
• Loading: Aaron will facilitate loading, included in the final price
• Freight assistance: Available
• Customs-document assistance: Available
PRODUCT DETAILS
• Complete dry granulation and particle-size classification system
• Fitzpatrick 16Lx20D Chilsonator roll compactor
• Dual 16-inch x 20-inch radial-cored compaction rolls
• Controlled hydraulic roll pressure
• Powder feed augers
• Compacts powders into ribbons
• Designed to help improve powder flow
• Designed to help reduce dust
• Fitzpatrick HAS030 Comminutor mill
• Hammer-and-knife milling design
• Interchangeable mill screens
• Controlled particle-size reduction
• GKM KTS 2600/5DS2V vibratory tumbler screener
• Approximately 2600 mm diameter screening area
• Five-deck screening configuration
• High-throughput particle separation
• Stainless steel wetted parts
• Integrated compaction, milling, and screening process
• Loading facilitated by Aaron Equipment
• Freight and customs-document assistance available
APPLICATIONS
• Dry granulation
• Powder roll compaction
• Powder densification
• Ribbon production
• Granule production
• Particle-size reduction
• Milling compacted ribbons
• Particle-size classification
• Multi-deck screening
• Dust-reduction processes
• Powder-flow improvement
• Pharmaceutical processing
• Chemical processing
• Food-ingredient processing
• Nutraceutical processing
• Specialty-material processing
• Powder preparation before tableting
• Powder preparation before capsule filling
• Rework processing where compatible
SUITABLE PRODUCTS AND MATERIALS
Product suitability must be confirmed through material testing and process review.
• Pharmaceutical powders
• Nutraceutical powders
• Food powders
• Chemical powders
• Specialty chemical materials
• Mineral-based powders where compatible
• Powder blends
• Fine dry ingredients
• Low-density powders
• Poor-flowing powders
• Dust-producing powders
• Materials requiring dry granulation
• Materials unsuitable for wet granulation
• Compacted powder ribbons
• Granules requiring controlled milling
• Products requiring multi-size classification
• Materials compatible with the stainless steel wetted parts
• Heat- or moisture-sensitive powders where dry granulation is appropriate
FAQS
• WHAT EQUIPMENT IS INCLUDED IN THIS DRY GRANULATION SYSTEM?
The system includes a Fitzpatrick model 16Lx20D Chilsonator roll compactor, Fitzpatrick HAS030 Comminutor mill, and GKM Siebtechnik model KTS 2600/5DS2V five-deck screener.

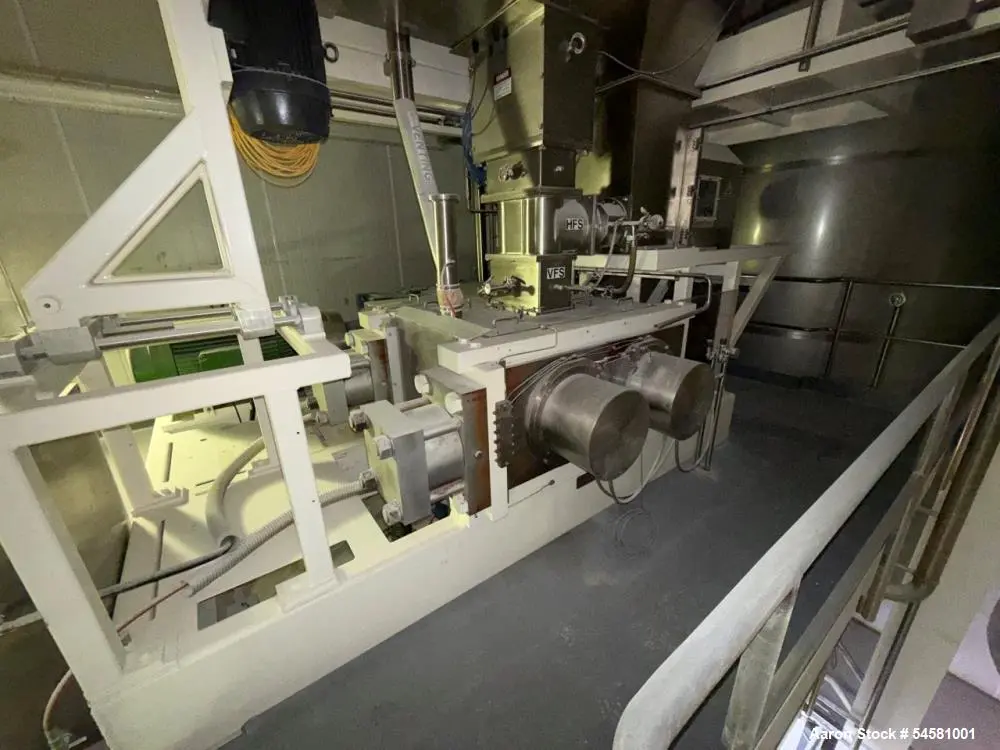

• WHAT SIZE ARE THE CHILSONATOR COMPACTION ROLLS?
The Chilsonator has two radial-cored rolls measuring 16 inches by 20 inches.
• HOW IS COMPACTION PRESSURE CONTROLLED?
The listing states that the rolls use controlled hydraulic pressure. The maximum available roll pressure is not specified.
• WHAT TYPE OF FEED SYSTEM IS INCLUDED?
The Chilsonator uses feed augers to introduce powder into the roll-compaction section. The number, dimensions, and speed range of the augers are not specified.
• WHAT HAPPENS AFTER THE POWDER IS COMPACTED?
The compacted powder ribbons are processed through the Fitzpatrick HAS030 Comminutor mill for particle-size reduction.
• WHAT TYPE OF MILLING SYSTEM DOES THE HAS030 USE?
The Comminutor uses a hammer-and-knife design with interchangeable screens for controlled particle-size reduction.

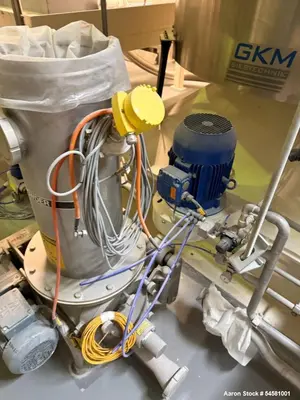

• WHAT TYPE OF SCREENER IS INCLUDED?

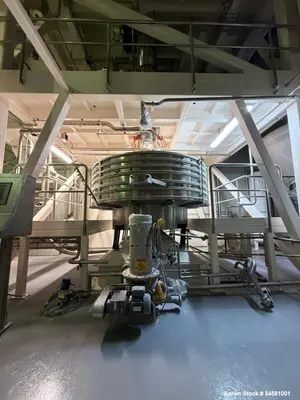

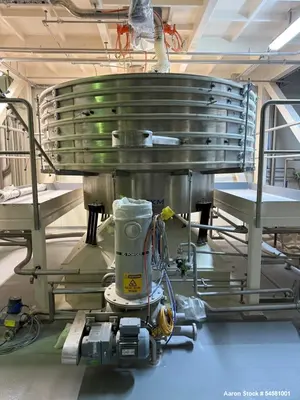

The system includes a GKM Siebtechnik KTS 2600/5DS2V vibratory tumbler screener.

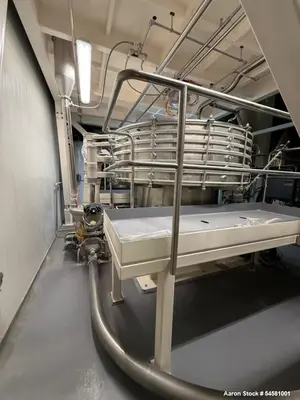

• HOW LARGE IS THE GKM SCREENER?
The screener has an approximately 102-1/2-inch or 2600 mm diameter.
• HOW MANY SCREENING DECKS DOES THE SYSTEM HAVE?
The GKM screener has a five-deck design for multi-stage particle classification.
• CAN THIS SYSTEM BE USED FOR PHARMACEUTICAL PRODUCTION?
The listing identifies pharmaceutical processing as an application. Buyers should confirm the construction, documentation, cleaning requirements, controls, and regulatory suitability for their facility.
• CAN AARON EQUIPMENT HELP DETERMINE WHETHER THIS SYSTEM FITS MY PRODUCT?
Yes. Provide the powder characteristics, bulk density, moisture content, target throughput, desired ribbon density, final granule size, and required particle-size distribution so Aaron Equipment can help evaluate the system for the application.
• IS LOADING INCLUDED?
The listing states that Aaron will facilitate loading and that loading is included in the final price. Buyers should confirm the exact loading scope when requesting a quote.
• CAN AARON EQUIPMENT HELP WITH SHIPPING?
Yes. Aaron Equipment freight specialists can assist with door-to-door transportation and customs documentation. Buyers should request the dismantled dimensions, shipping weights, loading plan, and destination-specific freight requirements.
