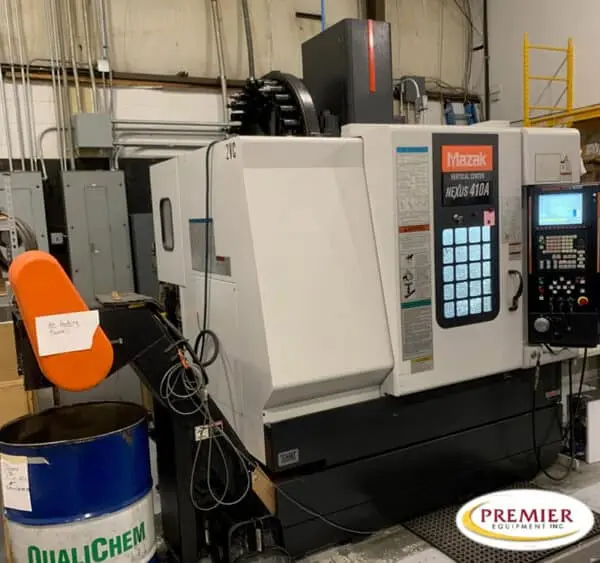

Mazak Nexus 410A with Rotary Table – 2006

TABLE SIZE 35.4” X 16.1”
X-AXIS STROKE 22”
Y-AXIS STROKE 16”
Z-AXIS STROKE 20”
COLUMN FACE TO SPINDLE CENTER 17”
MAXIMUM TABLE WEIGHT CAPACITY 1,102 LBS
SPINDLE SPEED 12,000 RPM
SPINDLE MOTOR (5MIN/10MIN/CONT.) 25/20/10 HP
SPINDLE TAPER #40
RAPID TRAVERSE (X,Y,Z) 1417.3 IPM
NUMBER OF TOOLS 30
MAXIMUM TOOL DIAMETER 3.15”
MAXIMUM TOOL DIAMETER (ADJACENT POCKETS) 4.92”
MAXIMUM TOOL LENGTH 13.78”
MAXIMUM TOOL WEIGHT 17.64 LBS.
TOOL SELECT METHOD RANDOM
TOOL CHANGE TIME (CHIP TO CHIP) 5.8 SEC
POWER SUPPLY (15MIN/CONT) 27.8 / 22.82 kVA
MACHINE HEIGHT 110.5”
FLOOR SPACE 78.7” X 102.3”
MACHINE WEIGHT 10,824 LBS
