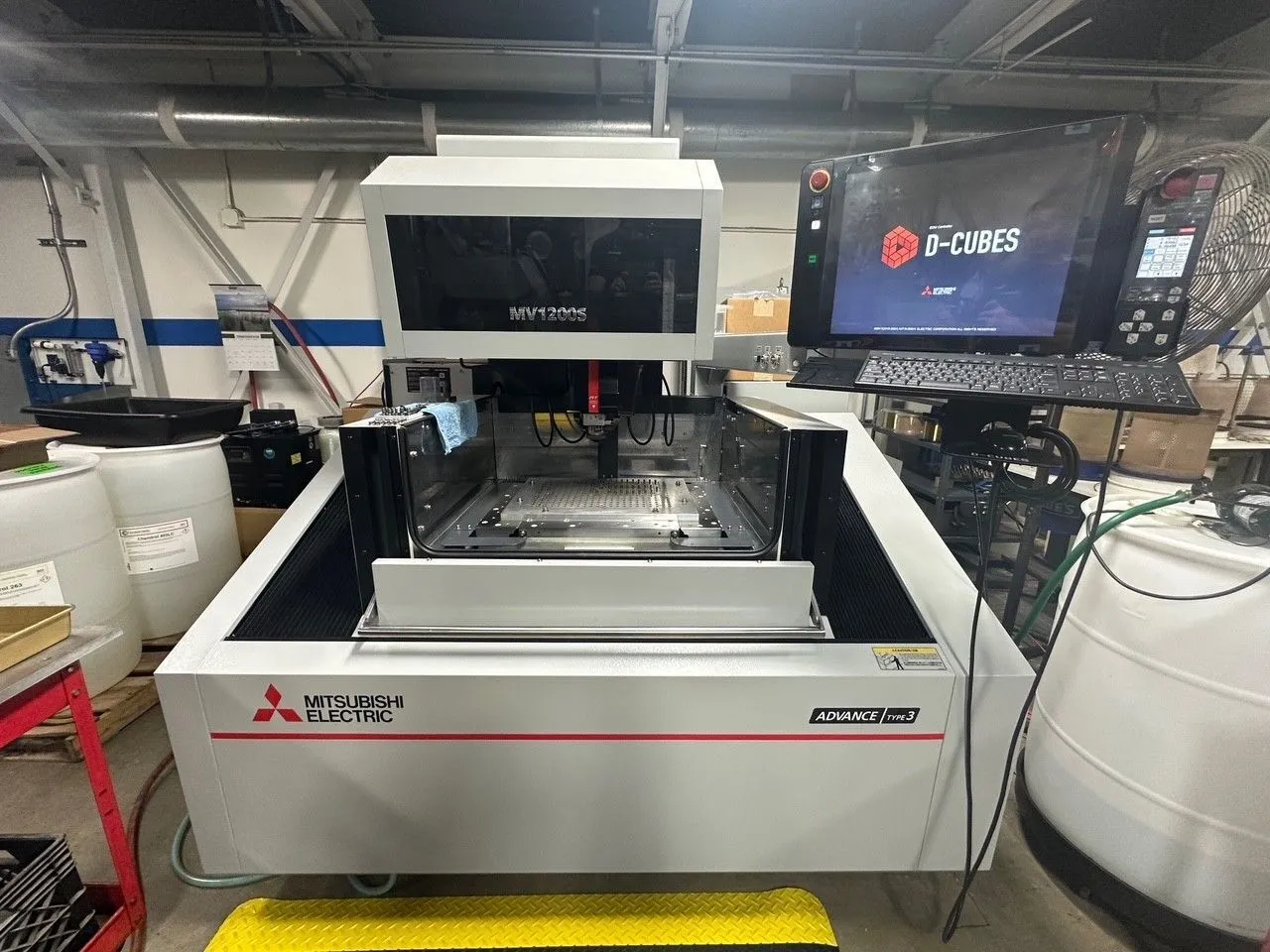

USED 2025 MITSUBISHI MV1200S

Machine Travels: X x Y x Z 15.7" x 11.8" x 8.7"
Maximum Workpiece Dimensions: W x D x H 31.9" x 27.6" x 8.5"
Max. Submerged Workpiece Weight: 1102 Lbs
Table Dimensions: 25.2" x 17.7"
U/V Travels (from center): ±2.4" x ±2.4"
Taper Angle @ Thickness: 15 deg.@ 8.0"
Wide Angle Taper 45 deg. @ 1.8″ 45mm (No AT Possible)
Table Rapid Feed Speed: 51.2 in/min
Power Supply V350-V
Minimum Drive Unit / Resolution 0.000002 / 2 µin
User Program Storage [Hard Disk Size] 1 GB [32 GB CFAST Card Size]
Wire Diameter Possible: 0.004~0.012"
Minimum Start Hole Diameter: 0.02"
Max. Wire Spool size On Machine / Cabinet STD: 22 / 44 Lbs
Filters / Type 2 / Paper
Filter Tank Capacity: 145 Gal
Machine System Dimensions: L x W x H 79.7" x 106.4" x 79.3"
Machine System Weight: 5,952 Lbs
Fluid System Weight: lb (kg) Included with machine
Power Requirements [KVA] 200-230V [13.5] Built in AVR
Compressed Air Requirements 2.7 cu.ft./min. @ 71~100 psi
