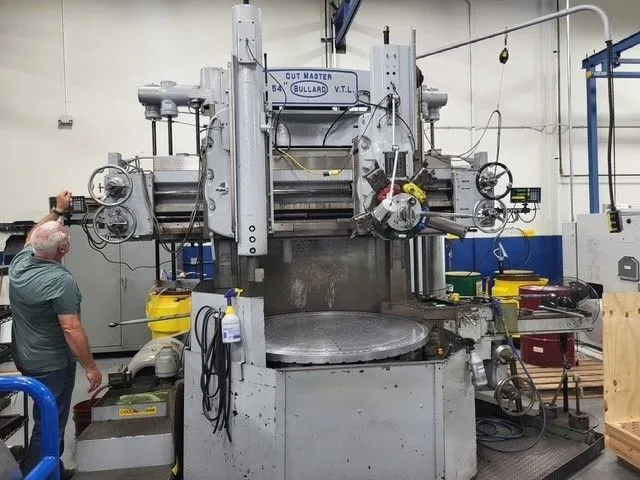

USED BULLARD CUTMASTER 54
Overview
Bullard Cutmaster 54 vertical turret lathe with a 54" table, 62" swing, and 44" work height. Features a 30 hp motor, 160 RPM speed, 5-sided RH turret, swiveling ram, and 4-jaw chuck. Ideal for heavy-duty machining with versatile operation.
Specs
54" BULLARD VERTICAL BORING MILL
MODEL: 54" CUTMASTER, S/N: 24278
SPECIFICATIONS
CHUCK DIAMETER.......................... 54"
MAXIMUM SWING WITH SIDE HEAD UP......... 58"
MAXIMUM SWING WITH SIDE HEAD DOWN....... 62"
MAXIMUM HEIGHT UNDER RAIL............... 44"
SPEED RANGE (20 SPEEDS)................. 4.4 TO 160 RPM
TABLE MOTOR............................. 30 HP
FEEDS (16 FEEDS)........................ .0026 TO .125 IPR
VERTICAL TRAVEL OF TURRET............... 30-3/8"
SWIVEL OF TURRET........................ 30 DEG LEFT & RIGHT
VERTICAL TRAVEL OF THE RAM HEAD ........ 30-1/2"
SWIVEL OF RAM .......................... 30 DEG LEFT & RIGHT
HORIZONTAL TRAVEL OF SIDE HEAD ......... 27"
VERTICAL TRAVEL OF SIDE HEAD............ 44-1/4"
APPROXIMATE FLOOR SPACE................. 115" x 136" x 124"
HEIGHT WITH RAIL AND TURRET UP.......... 152"
APPROXIMATE WEIGHT ..................... 50,000 LBS
Equipped With
EQUIPPED WITH:
* 5-SIDED R.H. TURRET
* L.H. SWIVELING RAM HEAD
* SIDE HEAD
* 4-JAW INDEPENDANT CHUCK
* 40 HORSE POWER MAIN DRIVE MOTOR
* SONY DRO FOR TURRET AND RAM
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
