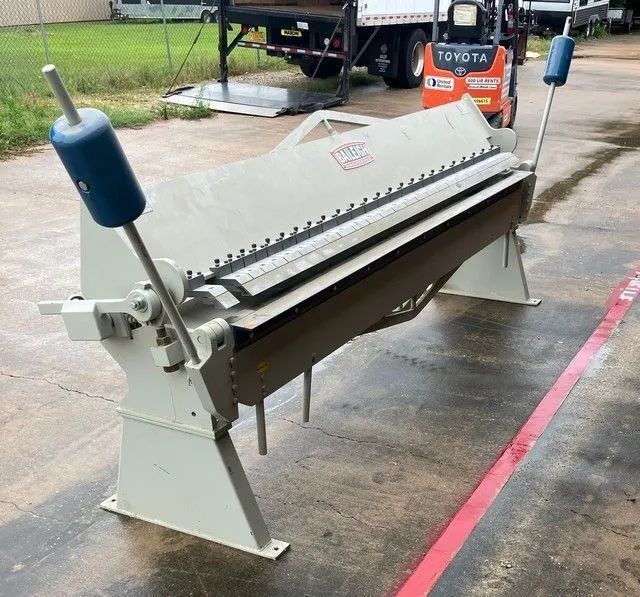

USED 2024 BAILEIGH BB-12016
Overview
The Baileigh BB-12016 is a professional-grade manual box & pan brake engineered for heavy-duty sheet metal fabrication, HVAC ductwork, and custom metal forming applications. With a full 120″ (10 ft) working width, this brake bends large sheet metal panels with precision and strength, delivering crisp bends across the entire length of light-gauge materials.
Industrial Performance: Built with an electro-welded steel framework and support rods to maintain alignment even under full load, the BB-12016 includes 26 removable hardened fingers of varying lengths, allowing operators to create a wide range of box, pan, and channel shapes up to 6″ box depth. Large counterweights and precise bearing-mounted beam shafts reduce operator fatigue and enhance bend consistency.
Specs
TECHNICAL SPECIFICATIONS
Bend Length 120” (3048mm)
Maximum Material Thickness 16ga. (1.52mm) mild steel*
Minimum Material Thickness 24ga. (.912mm) stainless steel**
Bend Angle 0 – 135 degrees
Beam Adjustment Minimum Reverse Bend
Box Depth 1” (25.4mm)
.625” (16mm)
Finger Size 6” (152mm) 6 @ 3” (76mm) 4 @ 4” (102mm) 10 @ 5” (127mm) 6 @ 6” (152mm)
Floor Stand 2 pcs. Welded Steel
Shipping Dimensions (L x W x H) 146" X 36" X 49"
Shipping Weight 3190 lbs. (1450 kg)
Based on a material tensile strength of *64000 PSI – mild steel
