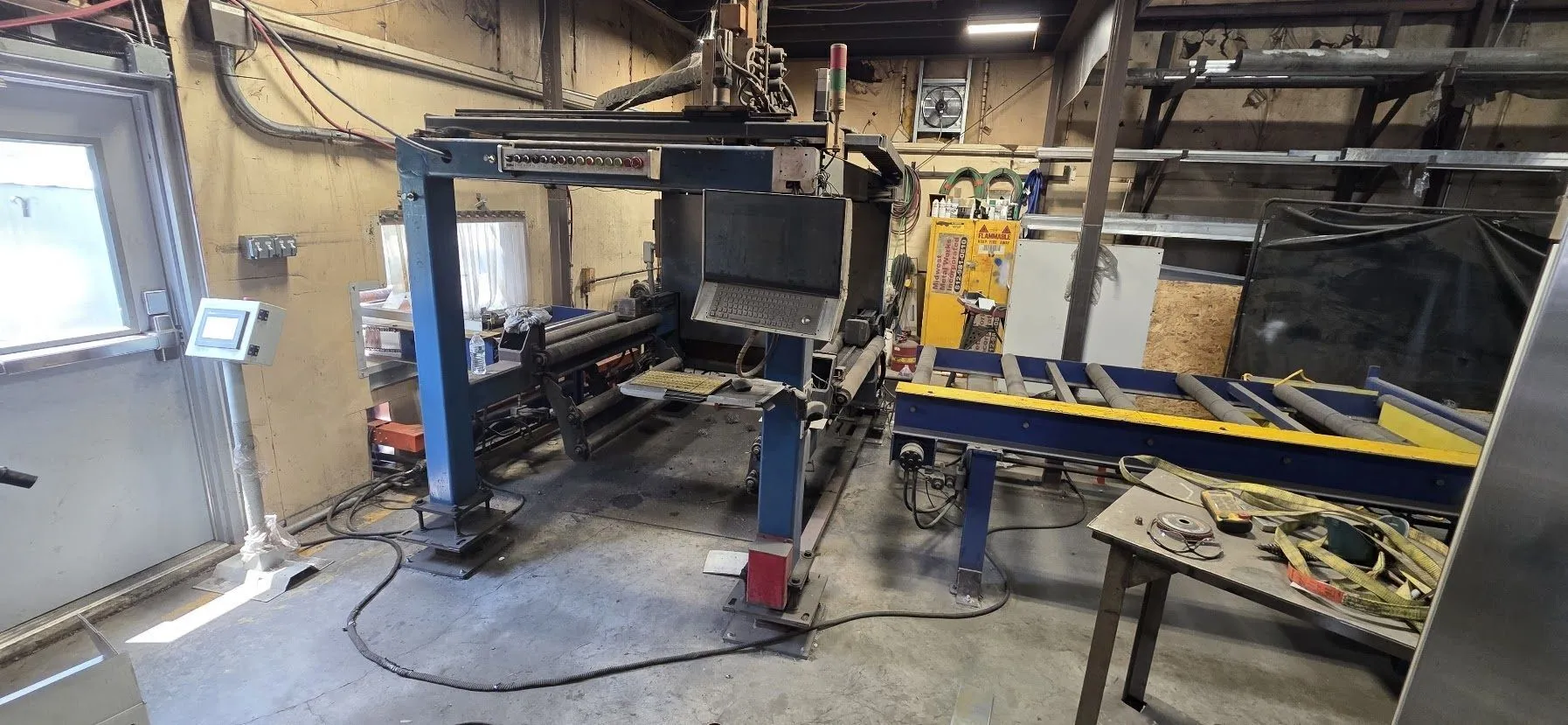

USED AMTEK APC1200

HYDRAULIC CLAMPS:
• Maximum depth = 47” / 1066mm
• Maximum force = 1000 PSI
• Operation = manual / automatic

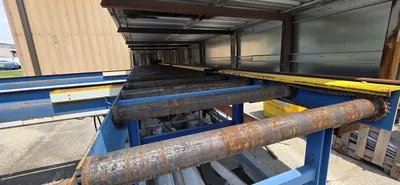

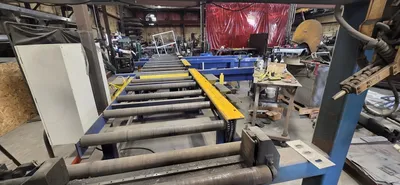

Hydraulic Lift Rollers

• Maximum depth = 47” / 1066mm
• Maximum force = 1000 PSI
• Operation = manual / automatic
• When the material advances to the next cut, both lift rollers will rise prior to the conveyors moving the material forward. Once the operation is done, the clamps will activate and both lift rollers will lower allowing the torch to cut freely.

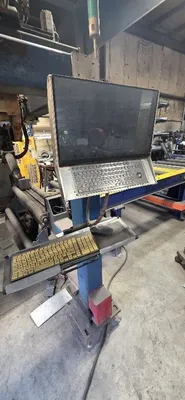

Controller
• Operating System = Windows 10
• DSTV Import = Included
• Manual programming = Included
• Networking = Wi-Fi + RJ45

Machine Working Envelope

• Maximum depth = 42” / 1066mm
• Maximum height = 22” / 558mm
• Maximum thickness = 6”/ 150mm with oxy-fuel
• 0.75” / 20mm with plasma

5 AXES
• X – 38”
• Y – 72”
• Z – 24”
• W – 360 degrees
• V - -90 to +60

Wired Remote

• Speed control
• Start / Stop
• Pause / Retrace / Resume
• LED indicator
• Confirm button to prolong battery life

Probing
• Flange tolled in/tolled out detection
This feature is especially necessary for flange beveling.
• Web offset detection
• This feature is especially necessary for flange thinning and web beveling
Material zero start position detection to make sure all flame gaps are within allowable limits.

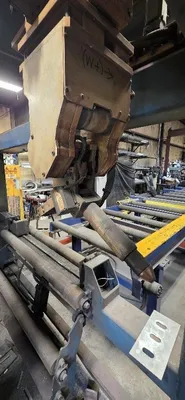

Cutting Torch

Koike torch = 2.5”
• Fuel / Gas = Propane / Propylene / Acetylene
• Cutting oxygen = gas oxygen / liquid oxygen
• No hoses or cable exposed to flame

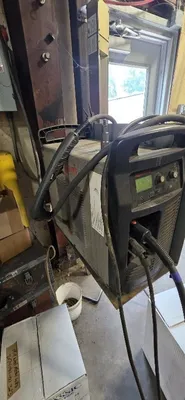

Plasma Torch Specifications:
• Hypertherm PowerMax 125
• Mini Machine Torch
• 1” maximum piercing on mild steel
• Beveling 5/8” thick @ 45 degrees
• Cutting speed = 5x oxy-fuel torch
