USED HYDRACORE HC5000MAX

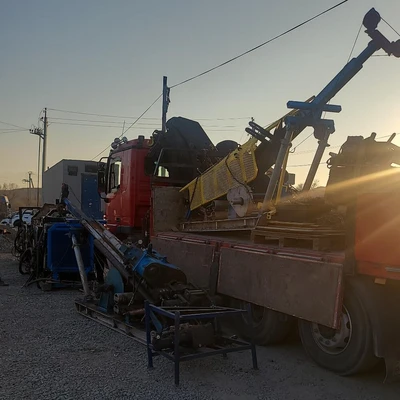

Hydracore HC5000MAX Diamond Core Drill

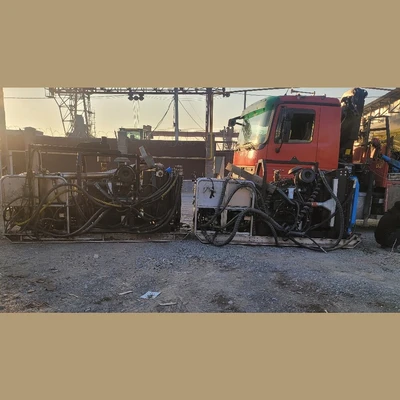

Quantity: (2) Units Available
Make: Hydracore
Model: HC5000MAX
Type: Diamond Core Drill
Year:
Unit 1: 2021
Unit 2: 2022
Unit 1: 2021
Unit 2: 2022
Hours: (Approx.)
Unit 1: 1,400 Hours on Meter
Unit 2: 240 Hours on Meter
Unit 1: 1,400 Hours on Meter
Unit 2: 240 Hours on Meter
Condition: Used Condition

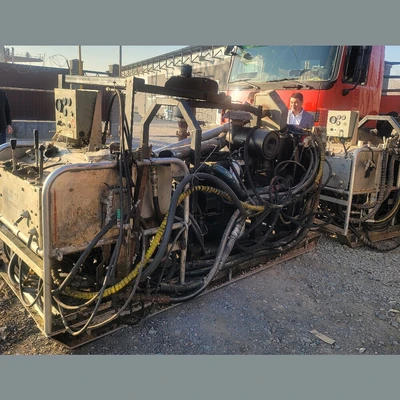

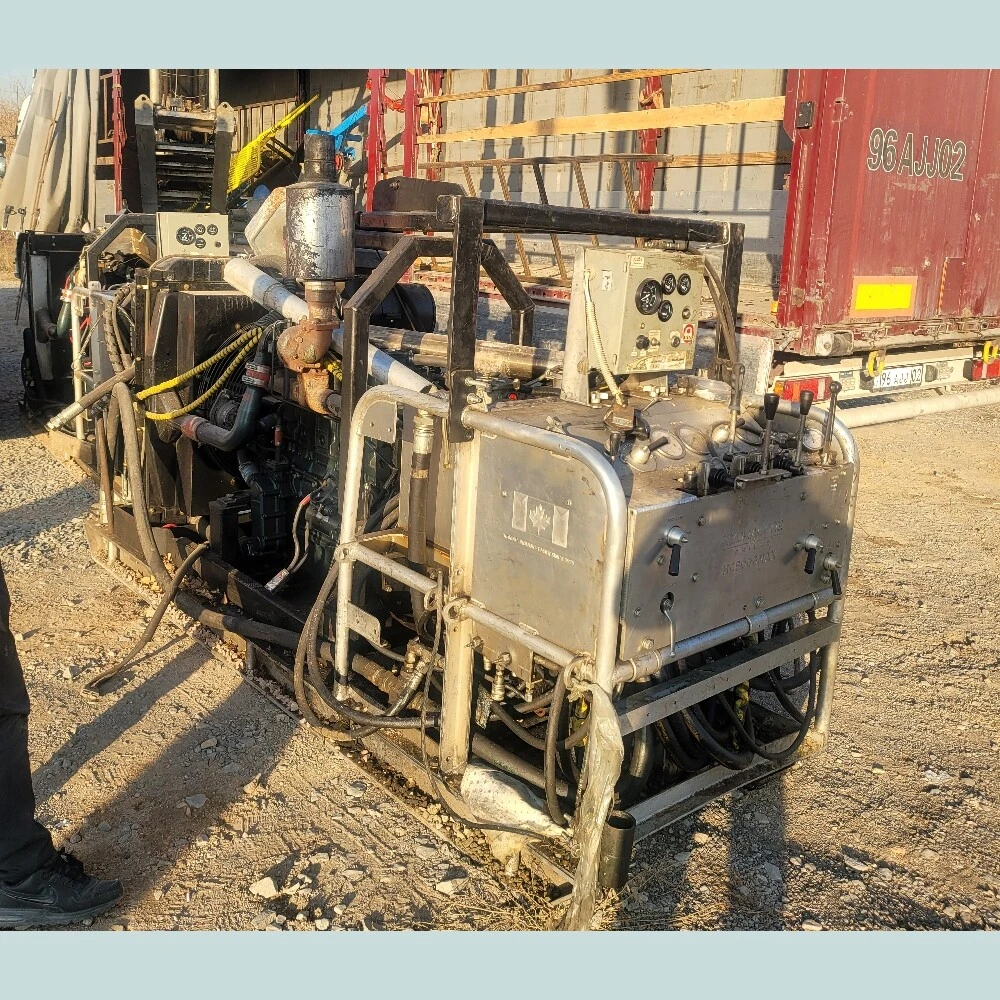

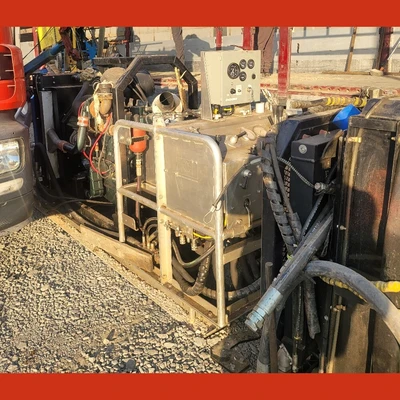

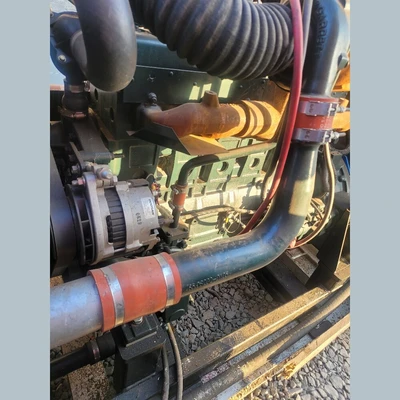

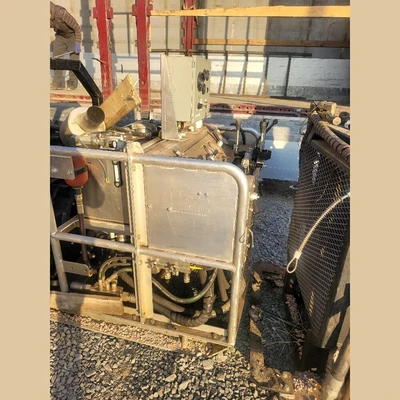

Engine: 240HP Doosan Diesel Engines

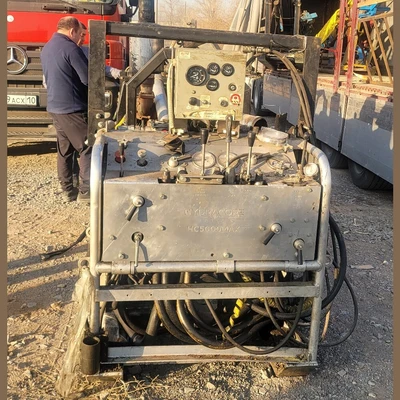

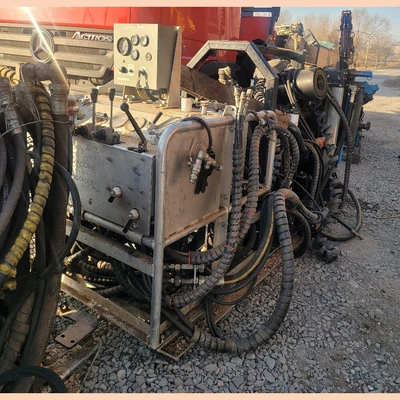

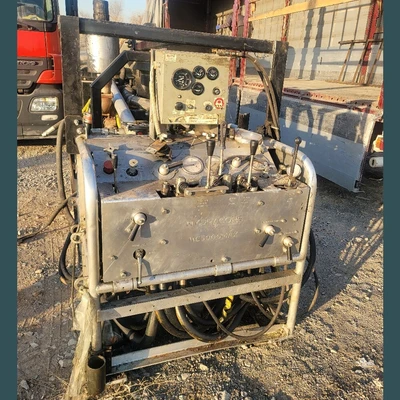

Controls: Direct Hydraulic Control Unit
Pedal-Mounted Emergency Stop

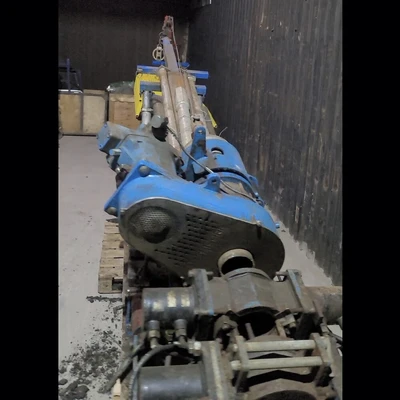

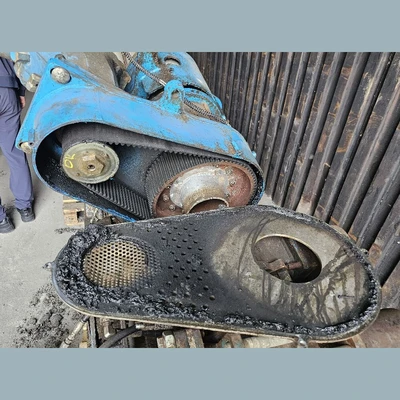

Head: "P" Drill Head - 70,000 Lbs. Pullback Capacity
Footclamp: PW Foot Clamp - 70,000 Lbs. Axial Capacity
Feed Pullback: 70,000 Lbs. Pullback
Water Manifold with (2) Water Hoses
Winch/Hoist: Modified PL1 Hoist Assembly (WIN-60-PL1)
Wireline Winch: 10,000ft Wireline Winch (3050m)
Mud Mixer: (2) MUD-0360, Hydraulic-Powered
Water Pumps:
Pratissoli KF50 Piston Pump - Hydraulic-Powered, 40 GPM, 1000 PSI
AB100 Piston Pump - Hydraulic-Powered, 20 GPM, 1000 PSI, On Skid, Includes Pop Valve and Suction Hose
AB100 Piston Pump - Diesel-Powered, 20 GPM
Pratissoli KF50 Piston Pump - Hydraulic-Powered, 40 GPM, 1000 PSI
AB100 Piston Pump - Hydraulic-Powered, 20 GPM, 1000 PSI, On Skid, Includes Pop Valve and Suction Hose
AB100 Piston Pump - Diesel-Powered, 20 GPM
General Model Specifications:
Drilling Capacity: Max (Recommended)
P-Size: 1100m (800m)
H-Size: 2000m (1500m)
N-Size: 3100m (2300m)
Move Method: Helicopter, Truck
Drill Method: Core (B, N, H, P)
Power: 240HP (177kW)
Drill Torque: 1700ft-lbs (2300Nm)
Pull Back: 70,000 lbs. (31,750 kg)
Feed Stroke: 72″ (1.82m)
Rod Length: 10ft (3m)
Rod Pull Length: 20ft (6m)
Drilling Capacity: Max (Recommended)
P-Size: 1100m (800m)
H-Size: 2000m (1500m)
N-Size: 3100m (2300m)
P-Size: 1100m (800m)
H-Size: 2000m (1500m)
N-Size: 3100m (2300m)
Move Method: Helicopter, Truck
Drill Method: Core (B, N, H, P)
Power: 240HP (177kW)
Drill Torque: 1700ft-lbs (2300Nm)
Pull Back: 70,000 lbs. (31,750 kg)
Feed Stroke: 72″ (1.82m)
Rod Length: 10ft (3m)
Rod Pull Length: 20ft (6m)
Location: Central Asia
