USED SEIKI 3VH
Overview

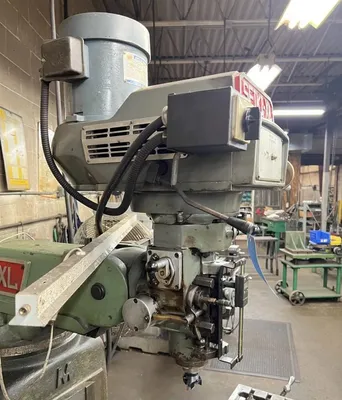

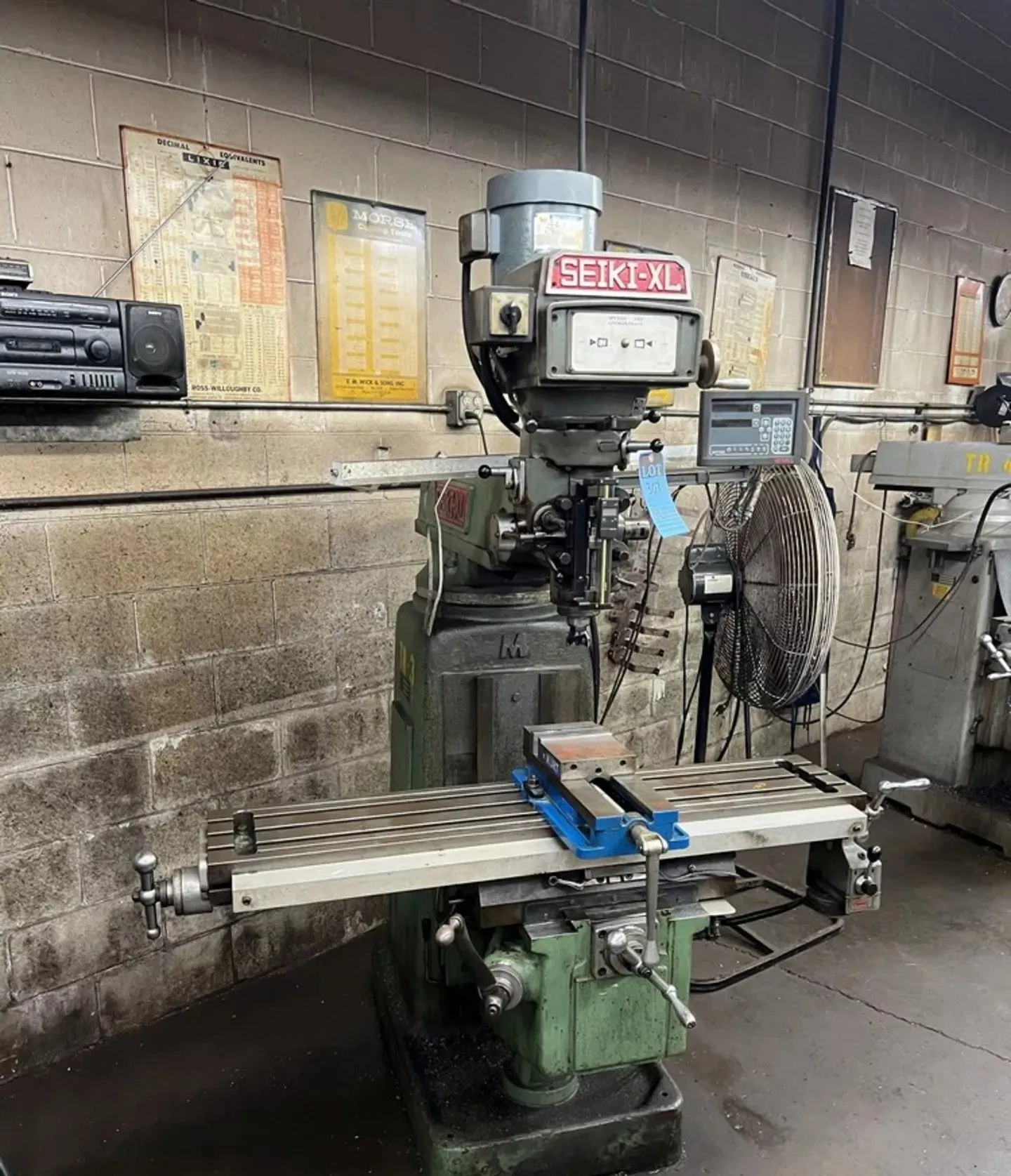

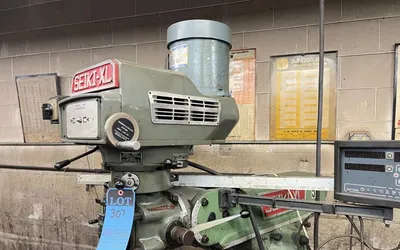

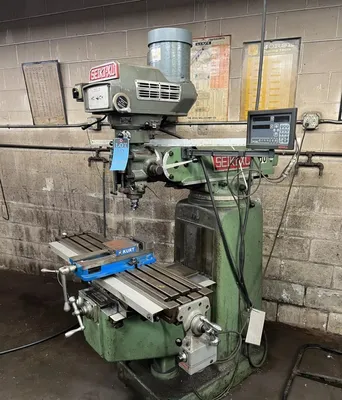

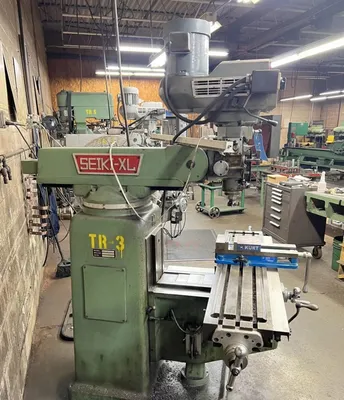

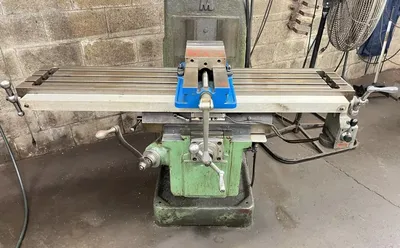

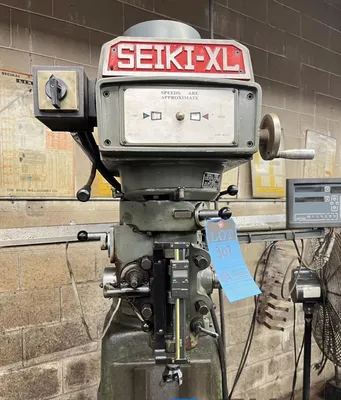

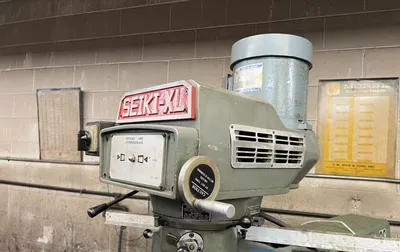

3 HP SEIKI XL “3VH” TURRET-TYPE VERTICAL MILL w/Newall DP 700 Digital Readouts - Power Longitudinal Table Feed - 10” x 50” Table - Kurt Vise
Specs
3 HP SEIKI "XL" TURRET-TYPE VERTICAL MILL w DIGITAL READOUTS

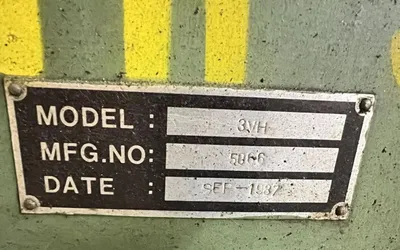

Serial No 5066, Model 3VH, Series XL,
EQUIPPED WITH:

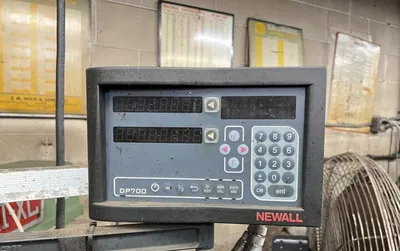

Newall "DP700" 2-Axis Digital Readouts

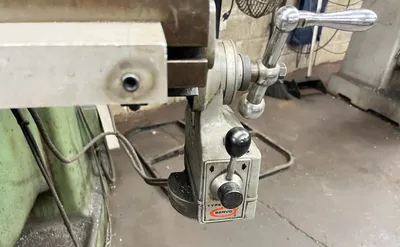

Power Longitudinal Table Feed (Inoperable)
Power Down-Feed to Quill
One Shot Lubrication System
Kurt Vise
CATALOG SPECIFICATIONS:
Table Dimensions (Overall), W x L 10" x 50"
Table Longitudinal Travel (X-Axis) 36"
Saddle Cross Travel (Y-Axis) 16"
Knee Vertical Travel (Z-Axis) 16"
Ram Travel 24"
Quill Travel 5"
Workpiece Weight Capacity, Maximum 850 LBS
Drilling Capacity, Manual .75"
Drilling Capacity, Power .37"
Boring Capacity, Maximum 6"
Milling Capacity 2in3/MIN
Spindle-Center to Column, Minimum 4.25"
Spindle-Center to Column, Maximum 28.25"
Quill, Diameter 3.375"
Spindle Taper #R-8
Spindle-Head Swivel, Degrees 90-DEGREES
Spindle-Head Tilt, Degrees 45-DEGREES
Spindle Speeds, Range 60 to 4200 RPM
Power Quill Feeds, Range .0015 to .006 IPR
Spindle Motor, Horsepower 3 HP
Weight, Approximately 3400 LBS
F.O.B. ON WAY IN
