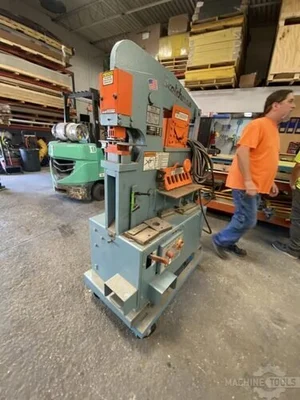

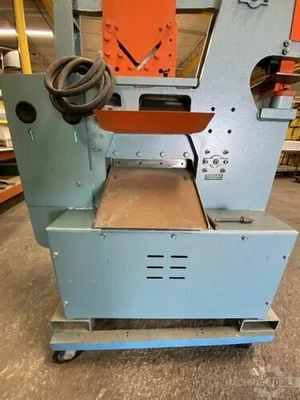

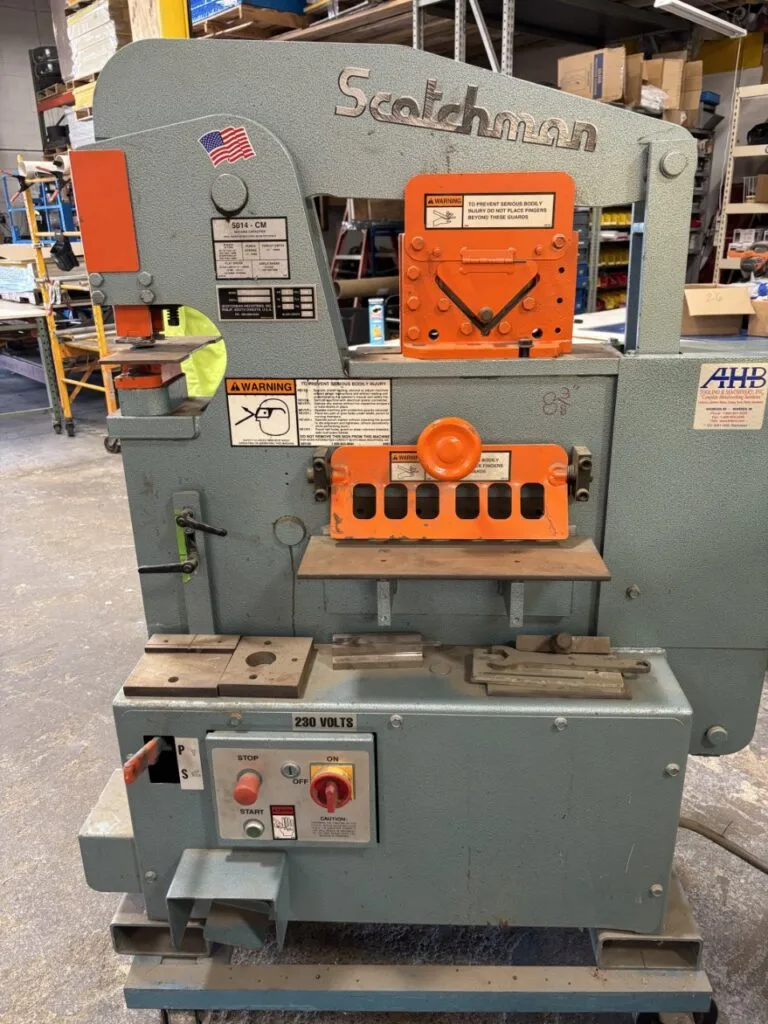

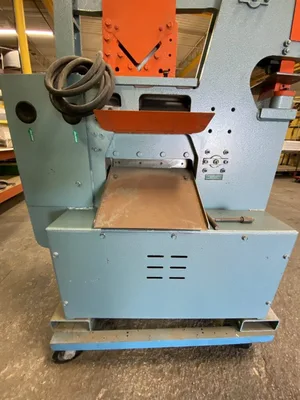

USED SCOTCHMAN 5014-CM

General Info

Stock #: 191260025
Brand: Scotchman
Model: 5014-CM
Approx. Shipping Weight: 1640 lbs
Approx. Shipping Dimensions: 48 x 48 x 70 in

Specifications

Punching Capacity: 50 ton 1-1/4" in 1/2", 13/16" in 3/4"
Special Tooling: 2-1/4" Max. Dia.
Throat Depth: 4"
Flat Bar Shear: 14" Length 3/4" x 4" 1/2" x 8" 3/8" x 10"
Angle Shear 90 Degree: 4" x 4" x 3/8"
Angle Shear 45 Degree: 2" x 2" x 1/4"
Brake 8": 25 ton
Brake 12": 25 ton
Open End Brake: Max. 1/4" x 3" [Flat or Angle Iron]
Pipe Notcher Schedule 40: 3/4", 1", 1-1/4", 1-1/2", 2"
Rectangle Notcher: 2-1/2" x 3" x 5/16" 2-1/2" x 2-3/4" x 3/8"
90 Degree V-Notcher: 6" x 6" x 1/8" 3" x 3" x 1/4"
Rod Shear Round (Max.): 5 Cavity - 1/4" to 1"
Rod Shear Square (Max.): 1 Cavity - 1/4" to 3/4"
Square Tube Shear: 1/2" to 1" 12 gauge
Picket Tool: 1/2", 3/4" & 1" 16 gauge
Weld Coupon Bender (Max.): 2" wide x 3/8"
Strokes Per Minute In Light Material: 34 spm [Punch Station]
Strokes Per Minute In Heavy Material: 14 spm [Punch Station]
Hydraulics: 2,350 psi

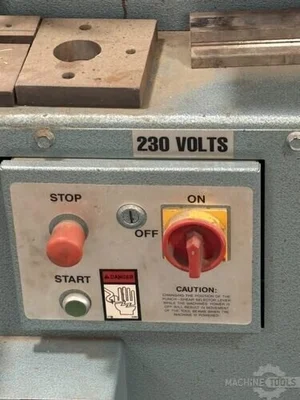

Motor: 3 hp, 230 Volt, 3 Phase
Dimensions: L: 48-1/4" x W: 23-1/2" x H: 70-1/4"

Additional Info
Machine is located in MI. Seller can prep and load.
