USED 2021 FANUC M-20ID25

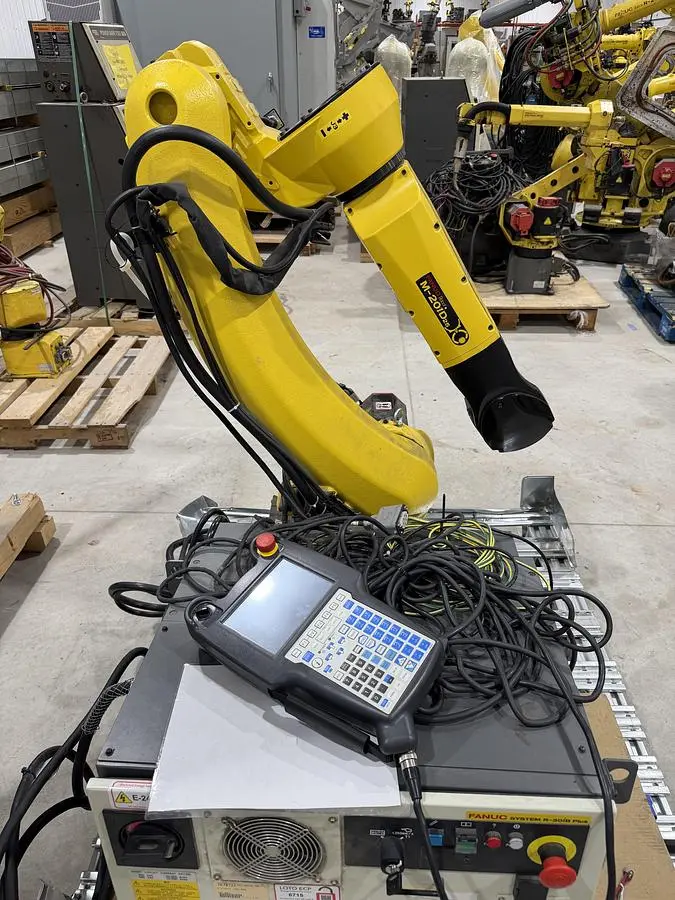

This used FANUC M-20iD/25 (2021) is a robot available from R.A.B. Industries. It is equipped with the R-30iB Plus controller, teach pendant, and cables.

1-NEVER USED FANUC M-20iD/25 ROBOT WITH R-30iB PLUS CONTROLLER,
TEACH PENDANT, AND CABLES.
HOURS: 6,482 MECHANICAL OPERATING HOURS
ARM TYPE A05B-1228-B202
SERIAL NUMBER:
DATE OF MFG. 2021
STK#105485
======================================
The Fanuc M-20iD/25 Robot is the latest generation of the M-20 series robots. It features great axis speeds,a thru-arm wrist design for easy hookup to your end of arm tooling, high precision motion performance, andlow power consumption. This is the reimagined version of the very popular Fanuc M-20iA series of robots.These robots are excellent for a wide variety of applications, including arc welding, material handling, pick andplace, assembly, sorting, palletizing/depalletizing, waterjet cutting, and so much more. This robot can be pairedwith the Fanuc R-30iB Plus controller in either the A cabinet size, or the R-30iB Mate Plus controller.
SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED

RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE

AND TO VERIFICATION BY BUYER:

Robot Specifications:

Axes:.............6

Payload:........25 kg

Reach:.......1831 mm

Repeatability:± 0.02 mm

Robot Mass: 250 kg

Structure: .....Articulated

Mounting:.....Floor, Inverted, Angle

Robot Motion Speed:

J1...... 210°/s (3.4 rad/s)

J2...... 210°/s (3.05 rad/s)

J3...... 265°/s (3.14 rad/s)

J4...... 420°/s (6.98 rad/s)

J5...... 420°/s (6.98 rad/s)

J6...... 700°/s (10.47 rad/s)

Robot Motion Range:

J1...... ±340°

J2...... ±260°

J3...... ±458°

J4...... ±400°

J5...... ±360

J6...... ±900

Robot Applications:

Assembly

Load/Transfer

Dispensing

Material Removal

Material Handling

Pick/Pack/Removal/Palletizing

EQUIPPED WITH:

FANUC MECHANICAL UNIT

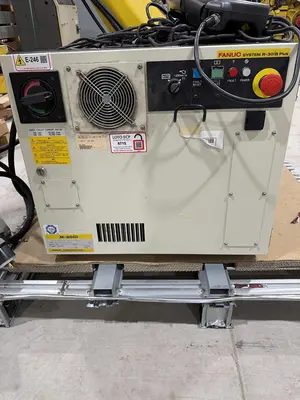

FANUC R-30iB PLUS CONTROL, A CABINET

FANUC ROBOT CONNECTION CABLES

FANUC ROBOT TEACH PENDANT

PER THE OEM:

Offering high performance in a small footprint, the FANUC M-20iD/25 is ideally suited to [loading and unloading machines](https://www.fanucamerica.com/solutions/applications/machine-tending-robots) as well as parts handling and positioning in crowded factory environments. For best access, it features a compact arm and wrist and, thanks to its new improved design and drive train, offers significantly higher axis speeds and motion performance. With an increased active stroke of 1831 mm, it offers a generous working envelope, with better rigidity translating to improved repeatability of ± 0.02 mm. To prevent snagging and improve reliability, cable routing is internal. By combining performance with reliability, the FANUC M-20iD/25 maximizes throughput leading to higher profitability. Installation is easy and running costs are low.

Fanuc America Robotics are one of the premiere global robot brands. They build absolutely fantastic products and are by far the number one selling robot brand in the United States. If you allow us to re-register your software with Fanuc you will get 24-7 technical support from their expert staff. We will register the robot in your companies name, so when you reach out to Fanuc for support and provide them with your robots F number they will know who you are, and the robot your calling about.
