USED 2022 DN SOLUTIONS Puma 3100 XLY
Overview

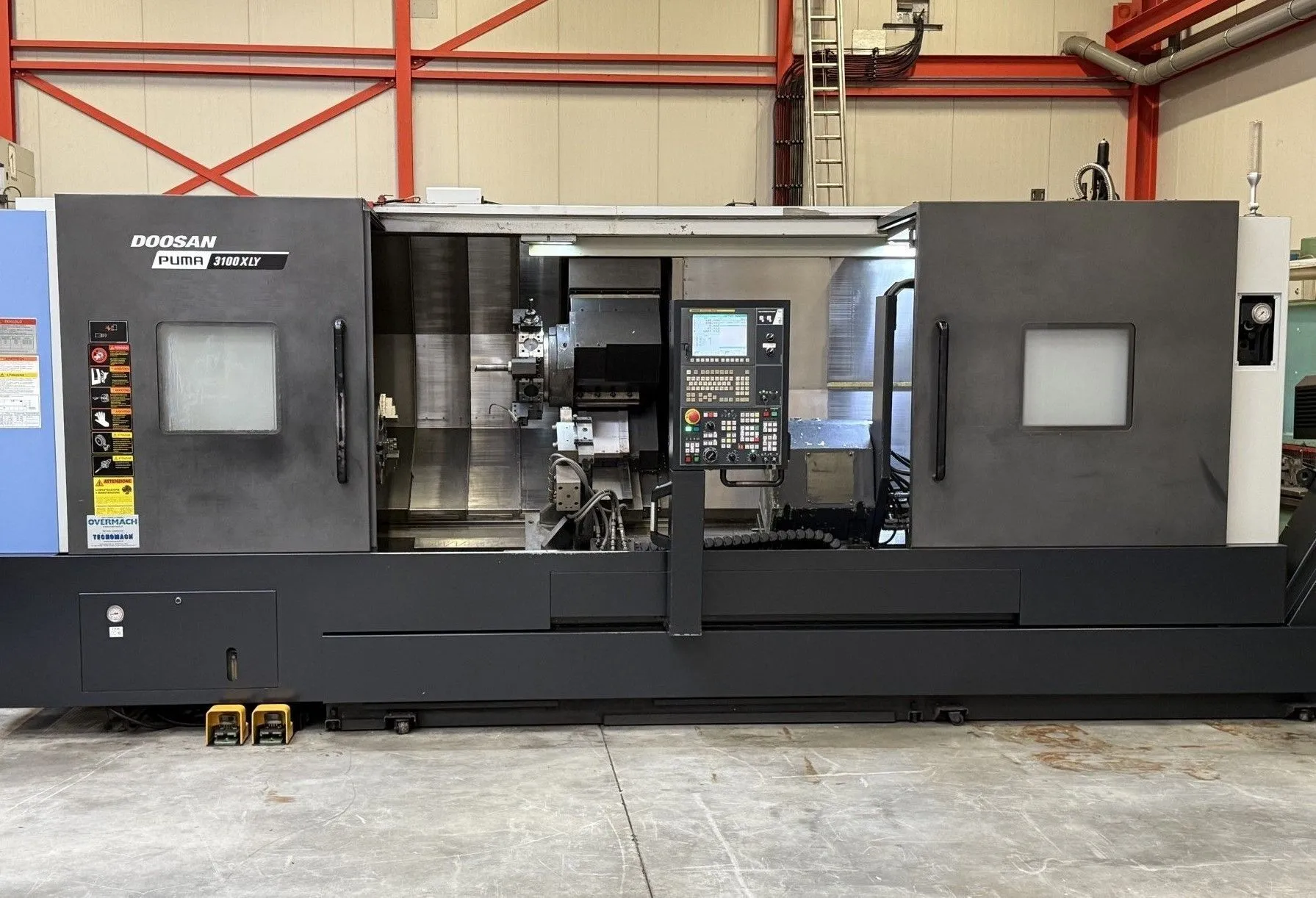

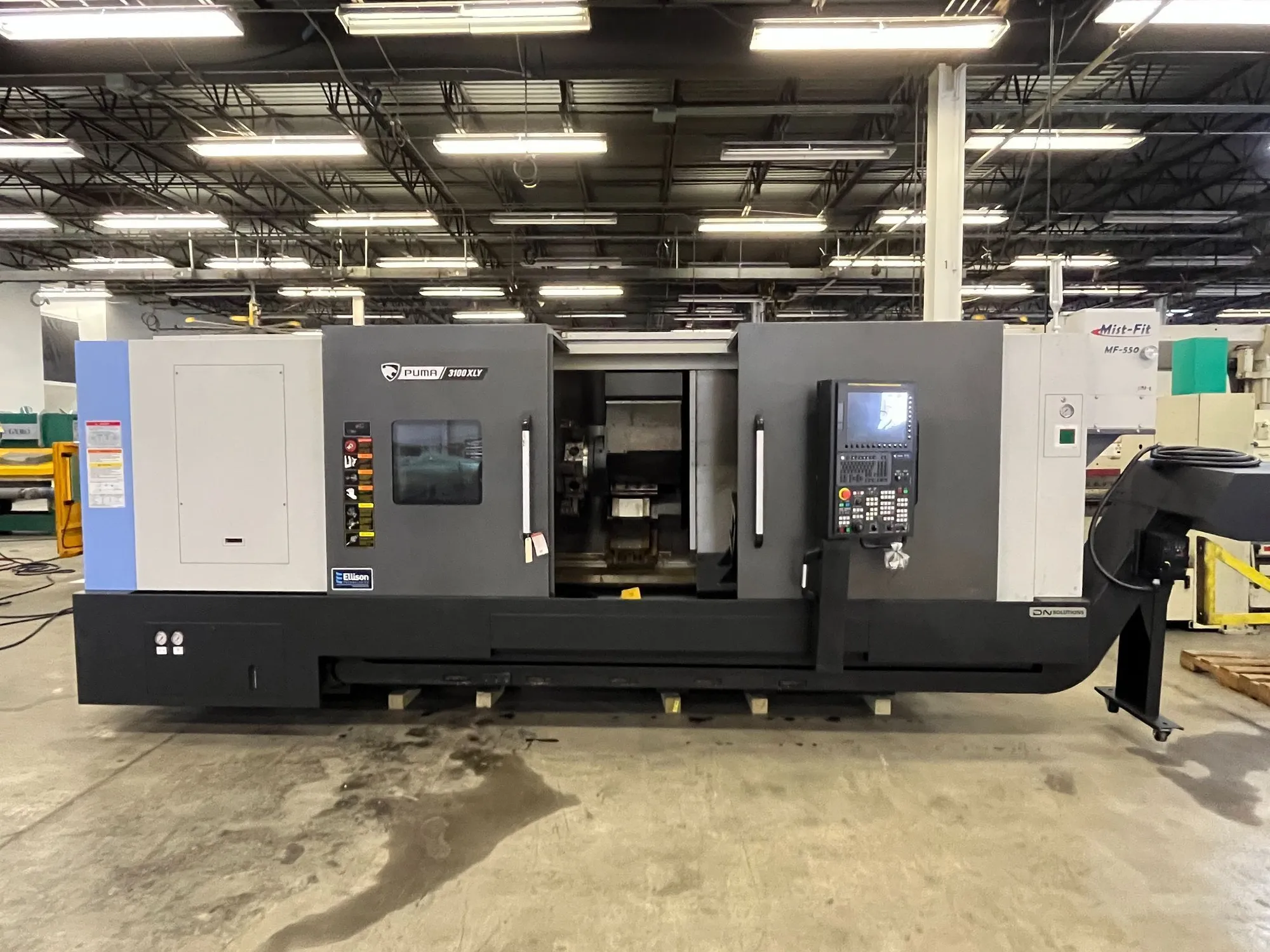

DN Solutions Doosan Puma 3100 XLY Live Tool CNC Lathe (2022), Twin Turret, Live Tool, Y Axis, a heavy-duty horizontal CNC turning center featuring a 12-inch chuck, a 2125 mm (84 inch) max machining length bed, and integrated live tooling.
Specs
Capacity Specifications
Chuck Size: 12 inches
Max Turning Diameter: 420 mm (16.5 inches)
Max Turning Length: 2125 mm (83.6 inches)
Bar Capacity: 102 mm (4.0 inches)
Travel and Axes
X-Axis Travel: 293 mm (11.5 inches)
Y-Axis Travel: 130 mm (5.1 inches, ±65 mm)
Z-Axis Travel: 2190 mm (86.2 inches)
Rapid Traverse (X / Z Axis): 30 m/min (1181 ipm)
Rapid Traverse (Y Axis): 30 m/min (1181 ipm)
Spindle and Turret
Spindle Speed: 2800 RPM
Spindle Motor Power: 26 kW (35 hp)
Spindle Torque: 1123 N·m (828 ft-lb)
Spindle Bore/Nose: A2-11 equivalent / 102mm draw tube capacity
Turret Stations: 12 ea (BMT 65P)
Live Tooling Speed: 5000 RPM
Physical Dimensions and Weight
Machine Length: 5615 mm (221 inches)Machine Width: 2280 mm (90 inches)Machine Height: 2315 mm (91 inches)Machine Weight: 10,800 kg (23,810 lbs)
Equipped With
Twin Turret, Live Tool, Y Axis
