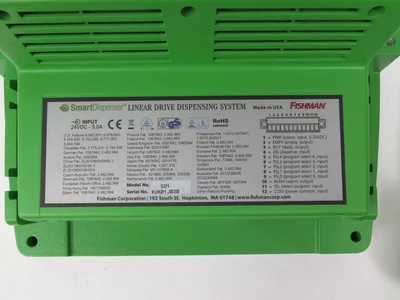

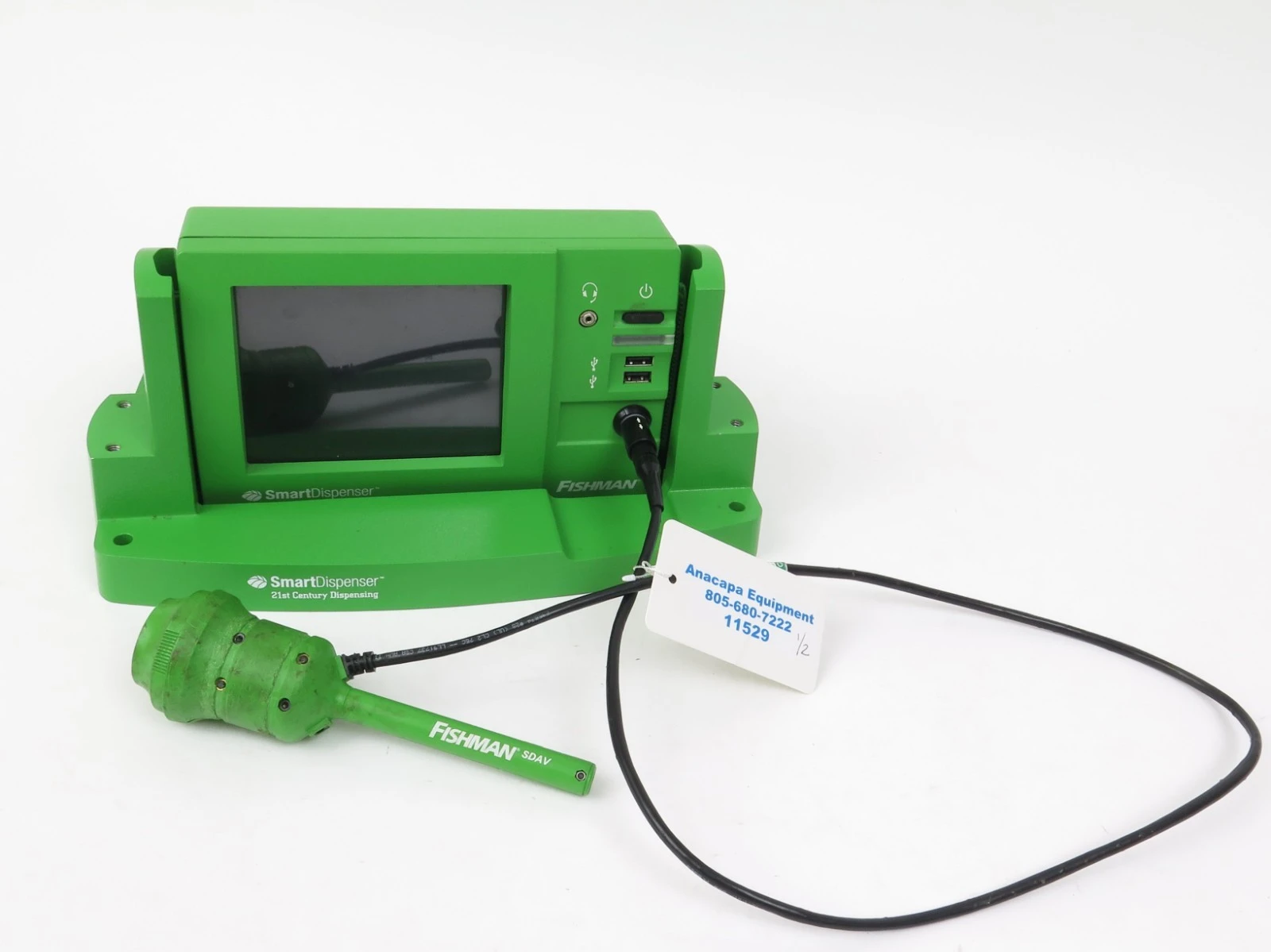

USED Fishman SD1

ITEM SPECIFICSBrand: FishmanManufacturer: Fishman CorporationModel: SD1Product Line: SmartDispenserType: Precision Fluid Dispensing SystemDrive Type: Electromechanical Linear DriveDispensing Technology: AirFreeControl Method: Positive-Displacement Lead-Screw DriveApplications: Epoxy, Adhesive, Sealant, Solder Paste and Assembly FluidsForm Factor: BenchtopCountry/Region of Manufacture: United StatesCondition: Pre-ownedTesting: Tested and workingCONDITION DESCRIPTIONPreviously used Fishman SD1 SmartDispenser in good overall condition with light cosmetic marks from normal handling and industrial use. The unit has been tested and is working properly. Please review all photographs carefully for the exact cosmetic condition, connections, accessories, and components included.DESCRIPTIONOverviewGenuine Fishman SD1 SmartDispenser Linear Drive Fluid Dispensing System, designed for accurate and repeatable application of epoxies, adhesives, sealants, solder pastes, and other assembly fluids.The SmartDispenser replaces conventional compressed-air dispensing with an electromechanical linear actuator and lead-screw system. This positive-displacement design provides more consistent fluid delivery by reducing variations caused by air pressure, changing material viscosity, barrel fill level, and operator technique.The system has been tested and is working. It was manufactured in the United States and is suitable for production, laboratory, electronics, medical-device, fiber-optic, photonics, and precision-assembly applications.FEATURESGenuine Fishman SmartDispenser systemModel SD1Tested and workingAirFree linear-drive dispensing technologyPositive-displacement fluid controlNo compressed-air supply required for the linear driveDesigned for repeatable volumetric dispensingSuitable for thin through highly viscous assembly fluidsReduces dripping, fluid waste, and inconsistent depositsBenchtop industrial designMade in the USAUseful for manual or production dispensing applicationsMANUFACTURER TECHNOLOGYAirFree Linear Drive SystemRather than using pneumatic pressure to push material from a syringe barrel, the Fishman system uses a linear actuator to precisely control the rotation of a lead screw. The drive advances a piston through the fluid reservoir, producing controlled positive displacement.Benefits include:Improved deposit repeatabilityReduced effects from changing fluid viscosityMore consistent dispensing as the syringe emptiesReduced need for continual pressure adjustmentsBetter control of small-volume depositsLower material wasteImproved production-process controlFishman states that its SmartDispenser platform is intended to improve productivity and yield while reducing rejects, waste, and overall dispensing costs.PUBLISHED SYSTEM SPECIFICATIONSSpecifications may vary depending on the dispensing gun, reservoir size, control module, and SDAV configuration connected to the SD1 controller.System Type: AirFree positive-displacement dispenserDrive Mechanism: Linear actuator with rotating lead screwOperation: Indoor industrial useMaximum Operating Altitude: Approximately 2,000 mOperating Temperature: 0–40°C (32–104°F)Relative Humidity: Up to 80% at 31°C, decreasing at higher temperaturesTypical Input Voltage: 100–240 VACTypical Input Frequency: 47–63 HzInitiation Options: Foot pedal, finger switch or compatible automation inputCompatible Reservoir Sizes: Common Fishman systems support 3 cc, 5 cc, 10 cc and 30 cc syringe barrelsControl: Programmable dispensing volume and rate, depending on configurationPublished SDAV specifications identify a universal 100–240 VAC input and operation through a foot pedal, finger switch, or compatible control input. Exact electrical ratings should be confirmed from the label on this unit before entering them in eBay item specifics.COMMON APPLICATIONSFiber-optic epoxy dispensingPhotonics assemblyElectronic component assemblyPCB manufacturing and reworkMedical-device productionSemiconductor assemblyPrecision adhesive applicationUV-curable adhesive dispensingSealant applicationSolder-paste dispensingLaboratory and research dispensingAutomotive and aerospace assemblyINCLUDEDFishman SD1 SmartDispenser controller/systemPower cord and accessories only when shown in the photographsOnly the items pictured are included. Dispensing guns, SDAV modules, syringe barrels, pistons, tips, cables, foot pedals, and other accessories are not included unless specifically shown.COMPATIBILITY NOTEThe SD1 requires compatible Fishman dispensing components for a complete operating setup. Buyers should verify compatibility with their intended:Linear-drive dispensing gunSDAV or other drive moduleSyringe-barrel sizeGun cableFoot pedal or triggerPiston and reservoir systemDispensing fluid and viscosityAutomation or PLC connection Shipping Returns Policies Shipping Orders ship within 1 business day of payment, subject to freight scheduling. We do not ship to Alaska, Hawaii, territories, or APO/FPO mailboxes unless prior arrangements are made. Any orders shipped via shipping or freight forwarder are final sale with no returns. Freight All freight damage must be noted on the Bill of Lading (BOL) at the time of delivery. Take clear photos of: The damaged item Packaging The BOL damage notation Retain all original packaging until the claim is resolved. Failure to follow these steps may result in denial of any refund related to shipping damage. International buyers are fully responsible for: Customs clearance Duties and taxes Brokerage fees Buyer must arrange for their own customs broker if required. Seller does not provide customs clearance services. All shipments are FOB origin, title and risk transfer to buyer at shipping point. Returns Anacapa Equipment Brokers, Inc. is committed to excellent customer service. Items are sold as-is with a 30-day Right of Return, unless otherwise stated. Only items shown in the listing photos are included. Buyer may return equipment for any reason within 30 days of receipt, provided it is returned in the same condition as shipped. No returns or refunds will be accepted if the buyer uses a shipping or freight forwarder for international shipment. Store Policies All equipment is sold as-is with no warranty of merchantability or fitness for a particular purpose. Buyer assumes all risk regarding the quality, performance, suitability, and safety of the equipment. Equipment should only be installed and operated by qualified personnel. Seller is not liable for any damages, injuries, or losses, incidental or consequential, related to the use of purchased equipment. Buyer agrees to defend, indemnify, and hold harmless Anacapa Equipment Brokers, Inc., its officers, employees, and agents from all claims, damages, or expenses, including legal fees, arising out of the purchase, ownership, or use of equipment.
