USED 2012 TAKISAWA LS-1100L30
Overview

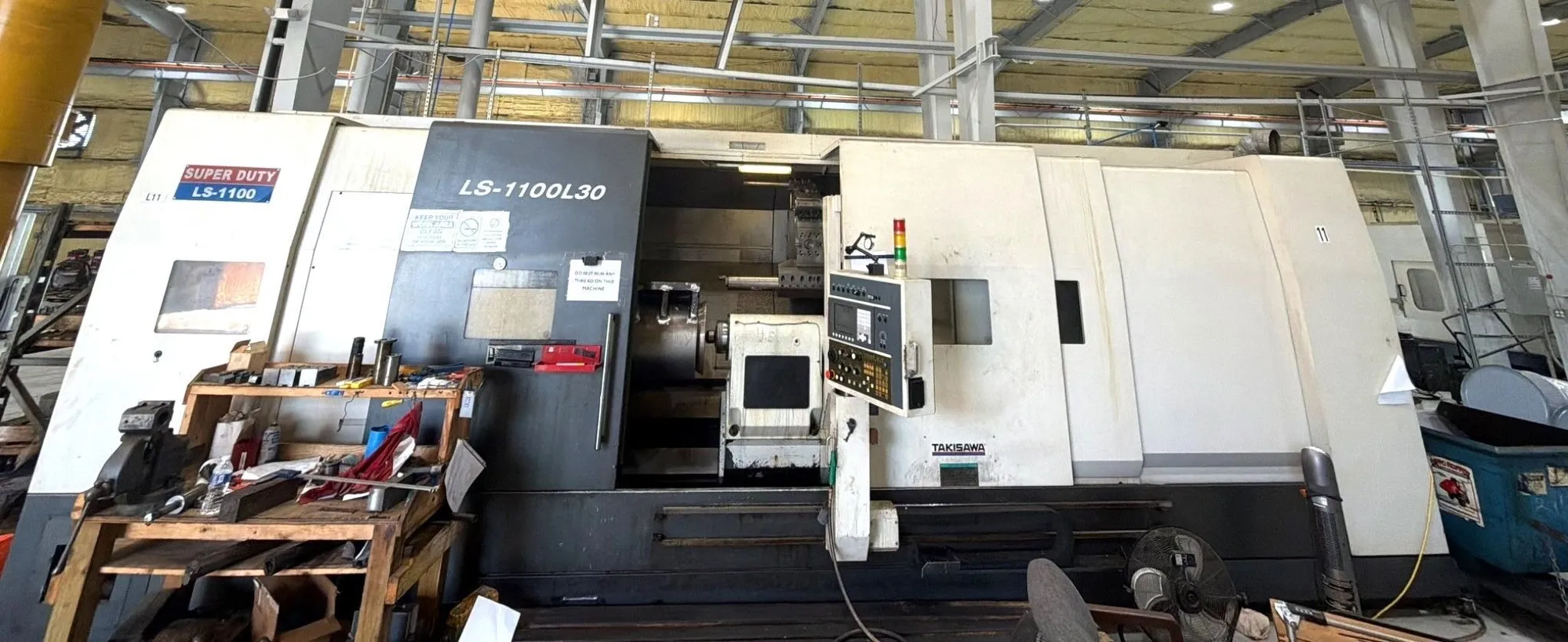

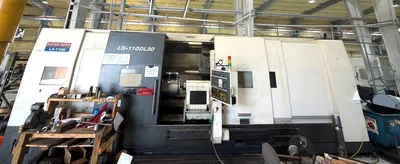

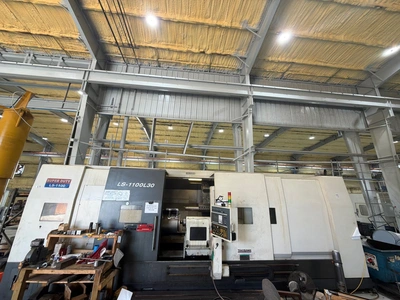

Takisawa LS-1100L30 44" x 120" Big Bore CNC Lathe (2012), 10" Bore, 2300 Hours
Specs
Takisawa LS-1100L30 44" x 120" Big Bore CNC Lathe (2012)
Capacity and Travel
Max Swing: 44.1 inches (1,120 mm)
Swing Over Saddle: 35.8 inches (90.9 cm)
Max Turning Diameter: 35.4 inches (900 mm)
Max Turning Length: 118.6 inches (3,014 mm)
Bar Capacity: 10.1 inches (254 mm) through draw tube
X-Axis Travel: 20.6 inches (523 mm)
Z-Axis Travel: 122 inches (3,100 mm)
Spindle and Power
Spindle Speed Max: 900 RPM
Spindle Nose: A2-20
Through Hole Diameter: 10.8 inches (274 mm)
Spindle Motor Power: 60 HP (45 kW) for 30 minutes / 50 HP (37 kW) continuous
Gearbox: Two-step precision gear drive for high low-end cutting torque
Turret and Tailstock

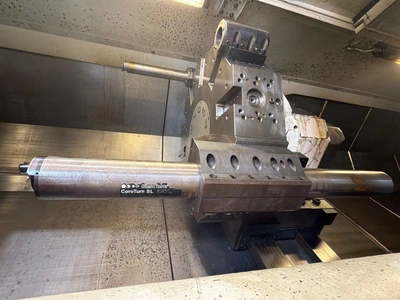

Number of Tools: 10 stations standard
Tailstock Travel: 120 inches (3,000 mm approx.)
Tailstock Quill Diameter: 7.9 inches (200 mm)
Equipped With

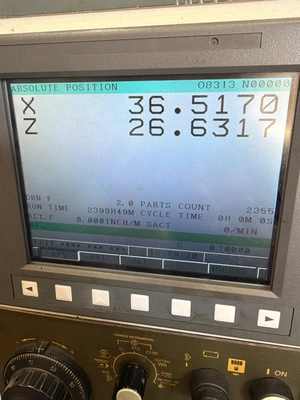

Fanuc Takisawa Turn i CNC Control

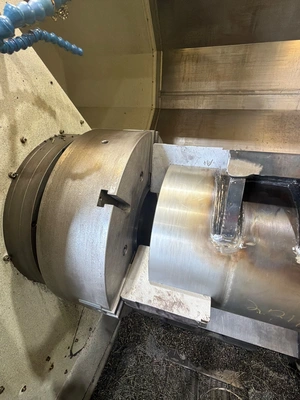

28" 3 Jaw Hydraulic Chuck
Steady Rest 6" - 25" Capacity
Heavy Duty Hydraulic Tailstock

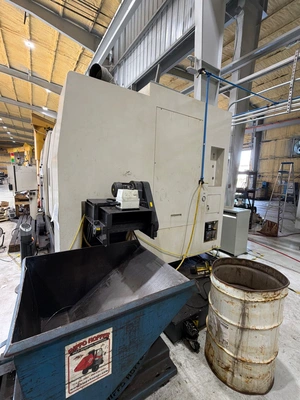

Right Rear Discharge Chip Conveyor

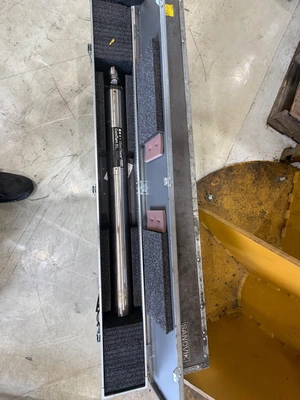

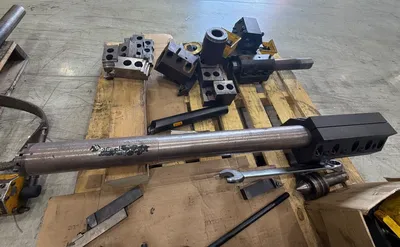

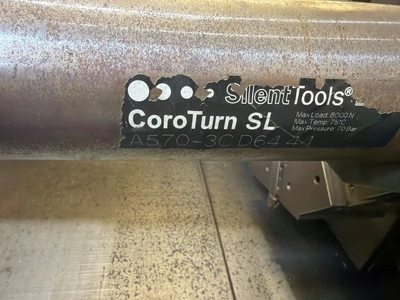

Large Capacity Boring Bars Available
***** 2300 Hours
