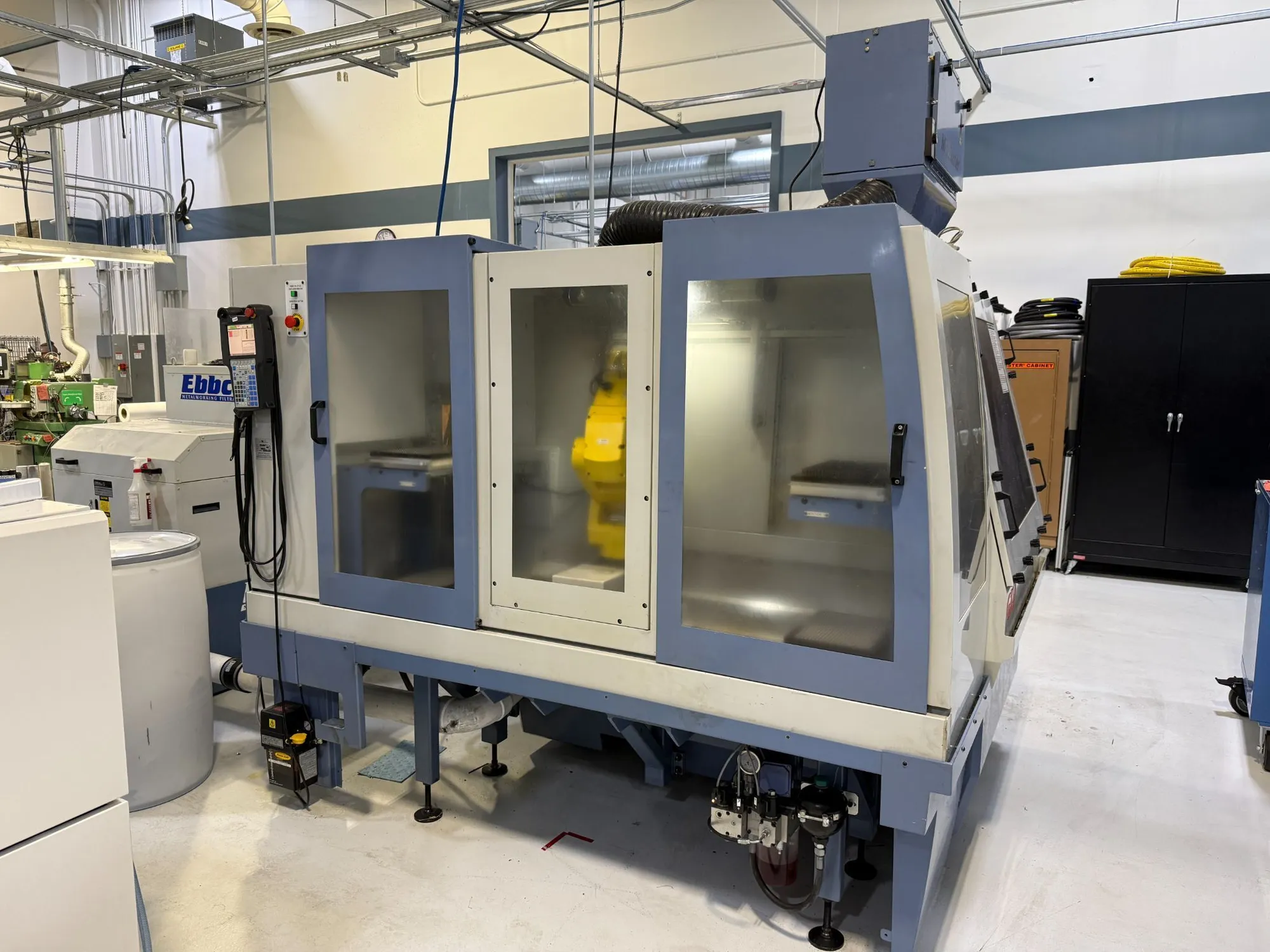

USED 2012 ANCA GX7

(1) Used 2012 ANCA GX7+, 5 axis Tool and Cutter Grinder, Fanuc RoboMate Loader, 6 Pack Wheel Carousel, ANCA Touch Screen Cont.

SPECIFICATIONS:

CATALOG SPECIFICATION:
X-Axis (Longitudinal): 439 mm (17.2”)
Y-Axis (Vertical): 464 mm (18.2”)
Z-Axis (Transverse): 274 mm (10.7”)
C-Axis (Rotary table): ±307°
A-Axis (Workhead Swivel): 360°
Maximum Tool Diameter: 240 mm (9.44”)
Maximum Tool Length: 370 mm (14.5”)
Maximum Tool Weight: 20 kg (44 lbs)
Type: Bi-directional integral direct-drive
Spindle Power: 9.5 kW (12.7 HP) peak power / 4.2 kW (5.6 HP) constant S1 duty
Maximum Wheel Diameter 203 mm (8”)
Direct Drive Spindle
(4) Pallet Configuration.
Approx. Dimensions: Machine 88” L-R X 85: W X 105” H
Approx. Dimensions: RoboMate Cabinet / Loader 97” L-R X 31” F-B X 77” H
Approx. Dimensions: Ebbco Filtration Unit: 70” X 40” X 63” H
Approx. Dimensions: Transformer 23” X 16” X 22” H
Approx. Machine Weight: 9500 Lbs.

WITH:
ANCA Touch Screen Control

Premium-Production Grade Automation for self-contained "lights-out"
manufacturing .

FANUC 200iC RoboMate Robot Loader
RoboMate Robot has an alarm: ANCA or Fanuc Service can assist with repair.

6 Pack Automatic Wheel Carousel: Needs new Encoder, Encoder, Motor and Cables
sold with machine.

Renishaw Tool Probe

Tool Support Block

Ebbco Inc. Model PMF-WMF3-623 Metal Working Filtration Unit

(1) Rebuilt Spindle(C-axis)

(1) Spindle: Needs to be rebuilt(C-axis)

*NO DRAWBARS FOR ABOVE TWO SPINDELS*

8 Parts Pallets

Hand Held Teach Pad Control

Fire Suppression

Miscellaneous Tooling
