USED OKK MCV-860

Machine Specifications
OKK MCV-860 CNC VERTICAL MACHINING CENTER

Manufacturer: OKK Corporation
Model: MCV-860
Machine Serial Number: To Be Confirmed
Manufacturing Number: To Be Confirmed
Country of Manufacture: Japan
Machine Type: CNC Vertical Machining Center

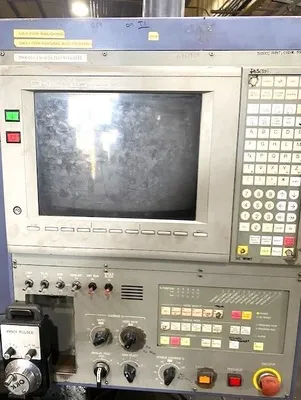

Control: OKK Neomatic CNC Control
Number of Axes: 3
Condition: To Be Confirmed
Year: To Be Confirmed

GENERAL DESCRIPTION

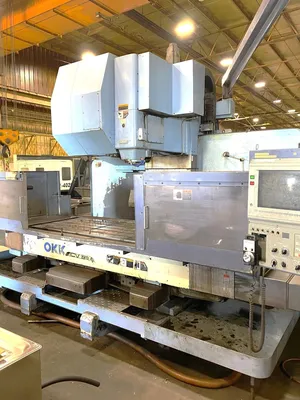

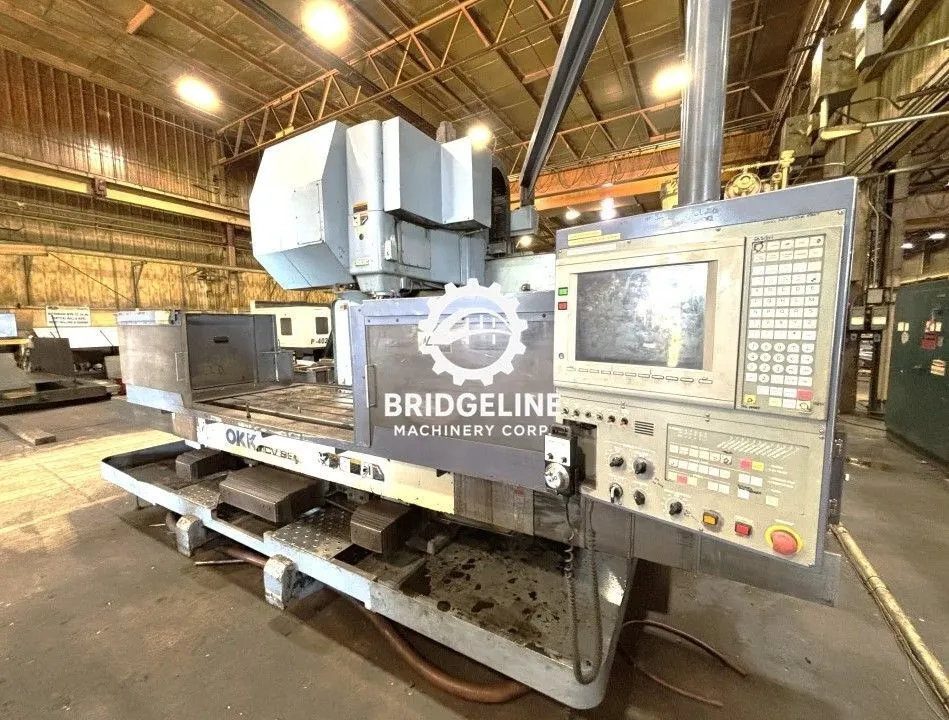

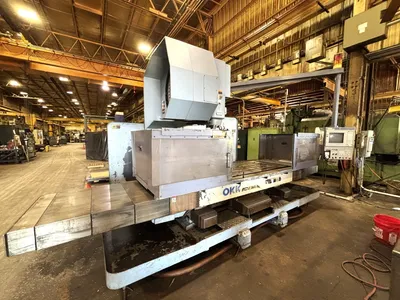

Heavy-duty OKK MCV-860 CNC Vertical Machining Center featuring an OKK Neomatic CNC control, large 90.5" x 33.5" worktable, approximately 80" of X-axis travel and a CAT 50 geared-head spindle.

The MCV-860 was designed for machining large, heavy workpieces and demanding material-removal applications. Its rigid construction, substantial table capacity and wide working envelope make it suitable for general machining, mold and die work, aerospace components, large fabricated parts and other heavy-duty milling applications.

SPECIFICATIONS

TABLE

Table Size: Approximately 90.5" x 33.5"
Maximum Table Load: Approximately 6,614 lbs.
Number of T-Slots: 5
T-Slot Width: Approximately 0.87"

TRAVELS

X-Axis Travel: Approximately 80.3"
Y-Axis Travel: Approximately 33.9"
Z-Axis Travel: Approximately 28.4"

SPINDLE

Maximum Spindle Speed: 6,000 RPM
Spindle Taper: CAT 50
Spindle Motor: Approximately 35/30 HP
Spindle Speed Ranges: Two-Speed Geared Head
Spindle Nose to Table Surface: Approximately 7.9" minimum to 36.2" maximum

FEED RATES

Rapid Traverse, X and Y Axes: Approximately 590 IPM
Rapid Traverse, Z Axis: Approximately 472 IPM
Maximum Cutting Feed Rate: Approximately 394 IPM

AUTOMATIC TOOL CHANGER

Tool-Changer Capacity: Approximately 30 Positions - Subject to Verification
Maximum Tool Diameter: To Be Confirmed
Maximum Tool Length: Approximately 13.8"
Maximum Tool Weight: Approximately 44 lbs.
Tool-to-Tool Change Time: Approximately 2.5 Seconds

EQUIPPED WITH

OKK Neomatic CNC control
CAT 50 geared-head spindle
6,000 RPM maximum spindle speed
Automatic tool changer
Large-capacity worktable
Heavy-duty box-way construction
Manual pulse generator
Machine guarding
Coolant system
Work light

APPROXIMATE MACHINE WEIGHT

Approximately 37,500 lbs. - Subject to Verification

MACHINE DIMENSIONS

Approximately 17.2' L x 15.9' W x 11.8' H - Subject to Verification

ADDITIONAL INFORMATION

The machine is currently installed on a plant floor. Operating condition, available tooling, manuals, maintenance records and accessories are subject to confirmation.
